China HDPE Gas Station Underground Thermoplastic Fuel Composite Pipe Manufacturer

We not only produce standard and custom non-standard composite pipeline products, but also supply a complete series of supporting parts for gas station engineering and all kinds of pipeline fittings. We provide a one-stop procurement solution to meet all your project demands.

Learn More

Why Choose Us & Our Advantages

VOHON Petrochemical

Pipe diameter, wall thickness, material, length and pressure parameters can all be customized as required. Suitable for non-standard projects of new gas station construction and renovation. We adopt flexible customized production for all specifications and provide one-stop supply of composite pipes and matching fittings.

One-Stop Complete Composite Piping System

From pipes to electrofusion fittings, we deliver the entire buried fuel piping solution under one roof — designed, produced and quality-controlled in our own factory.

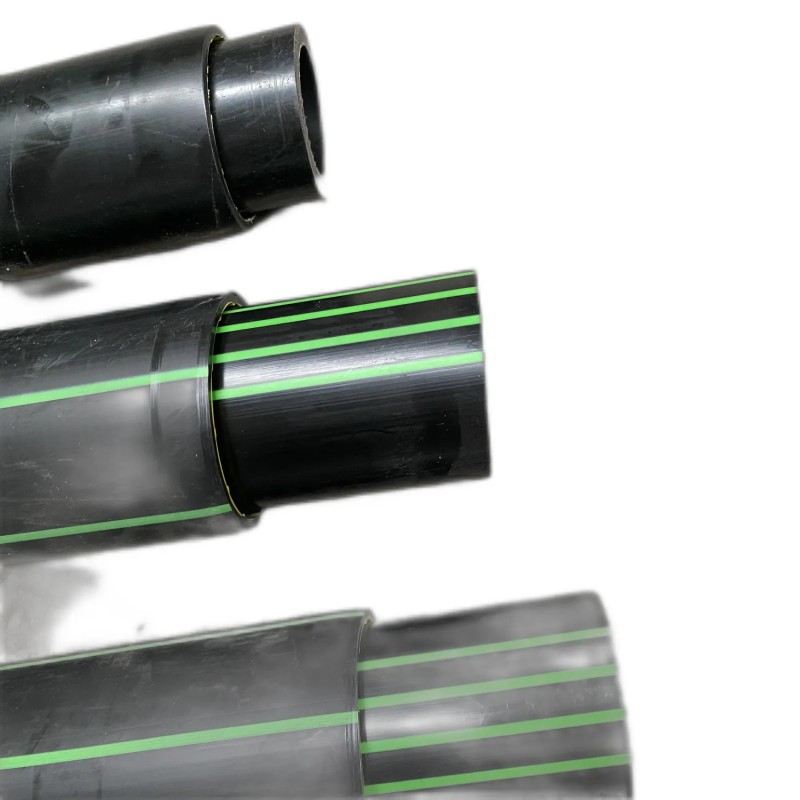

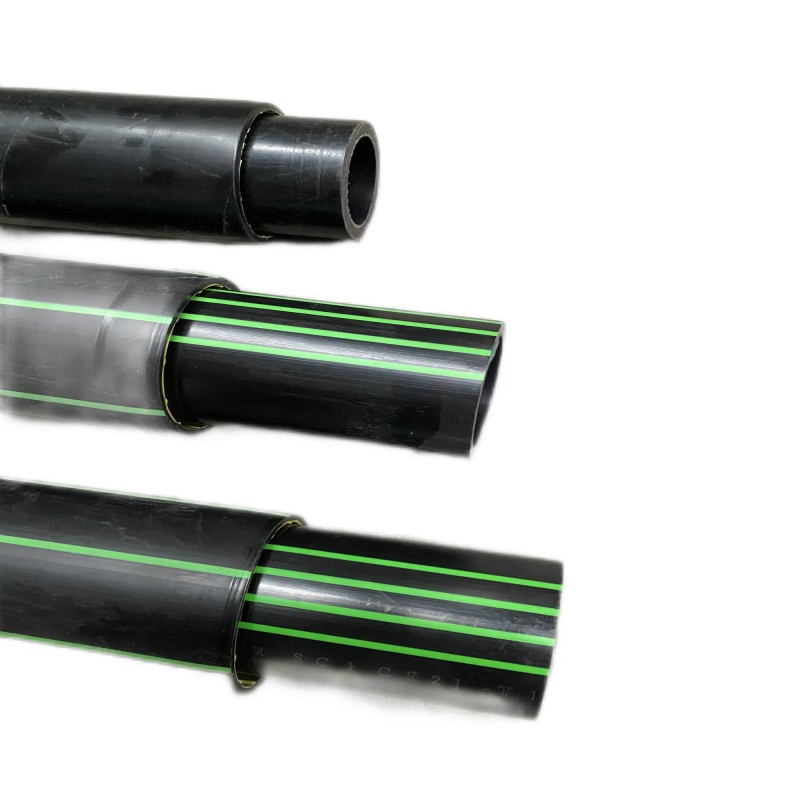

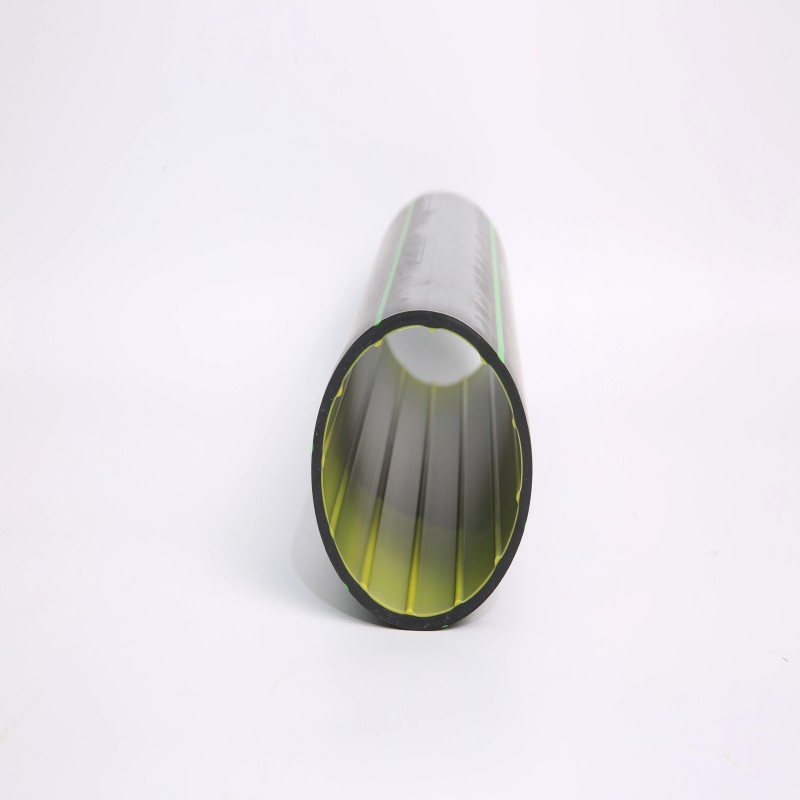

Double-layer composite pipe

Double-Layer Composite Pipe

View Product →

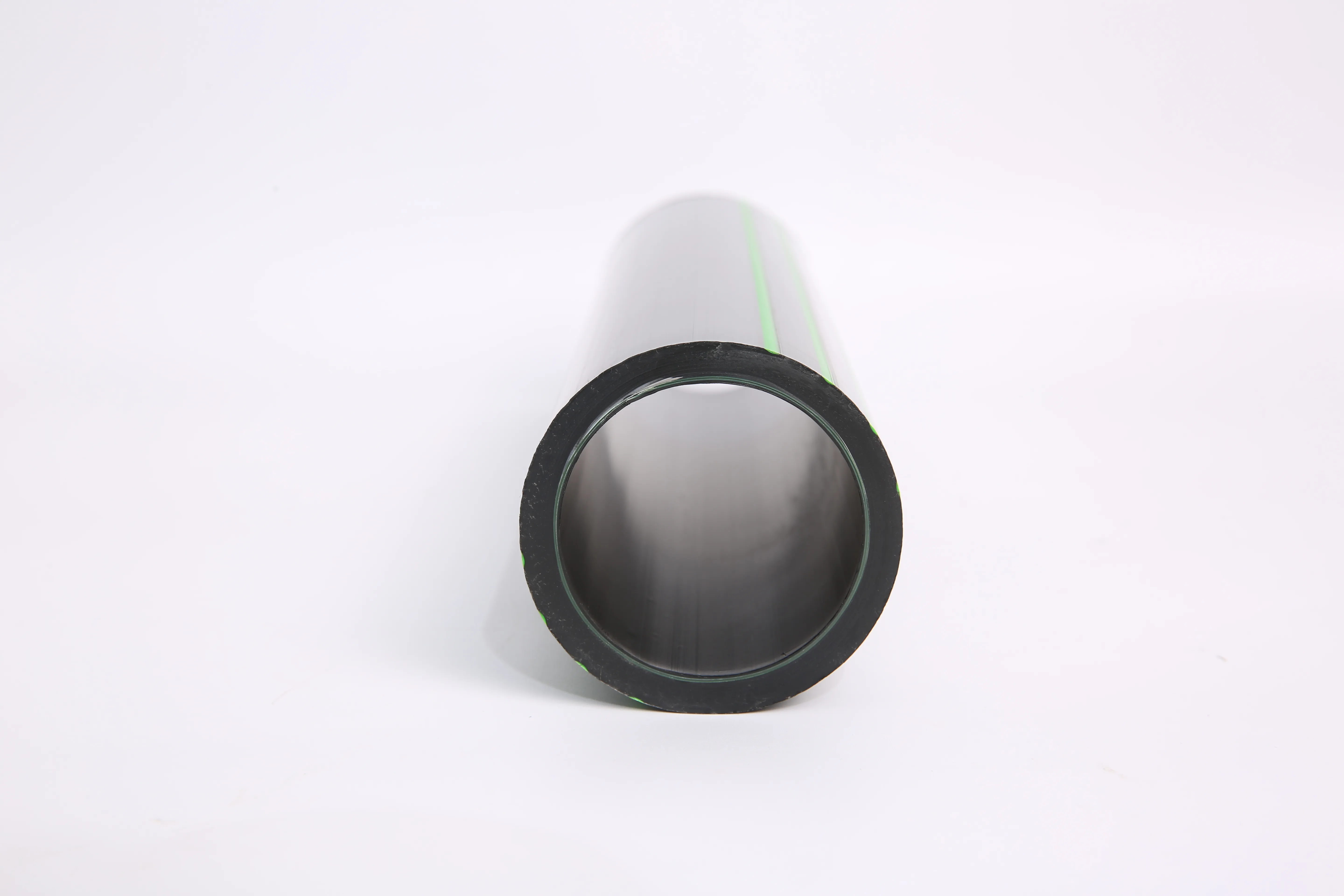

Single-layer composite pipe

Single-Layer Composite Pipe

View Product →

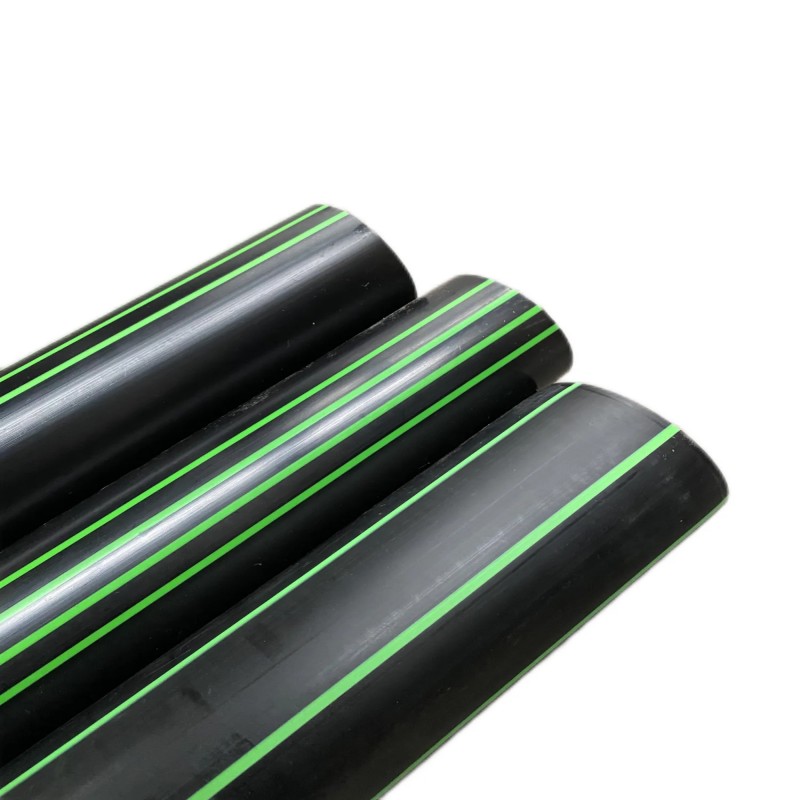

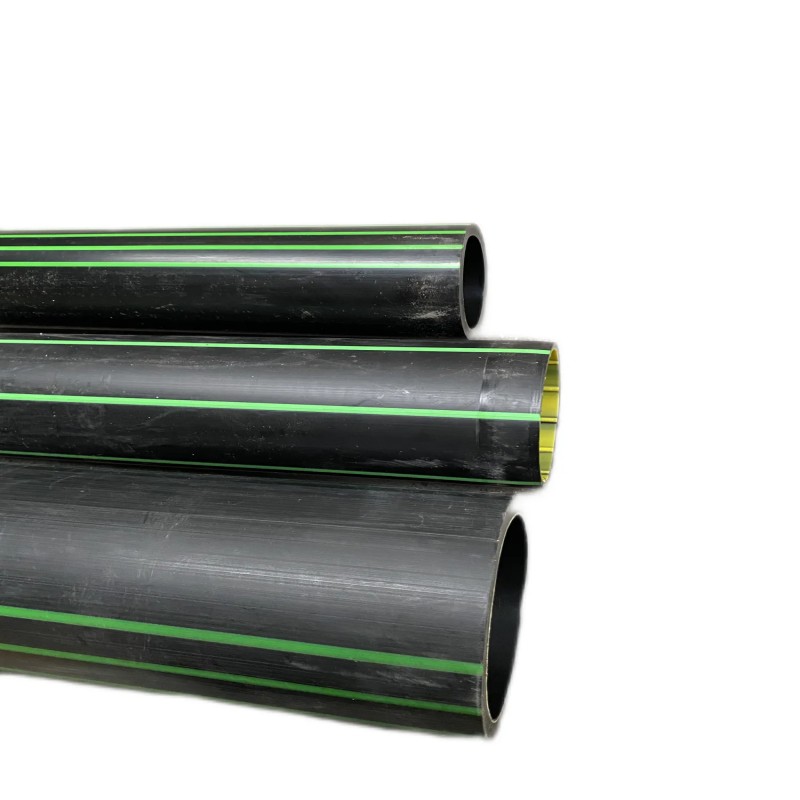

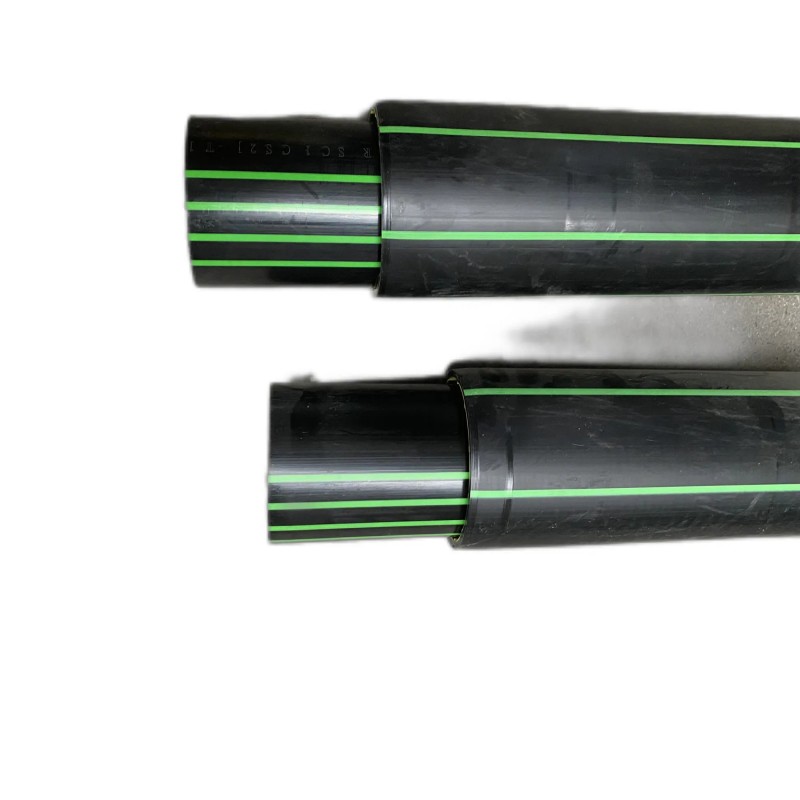

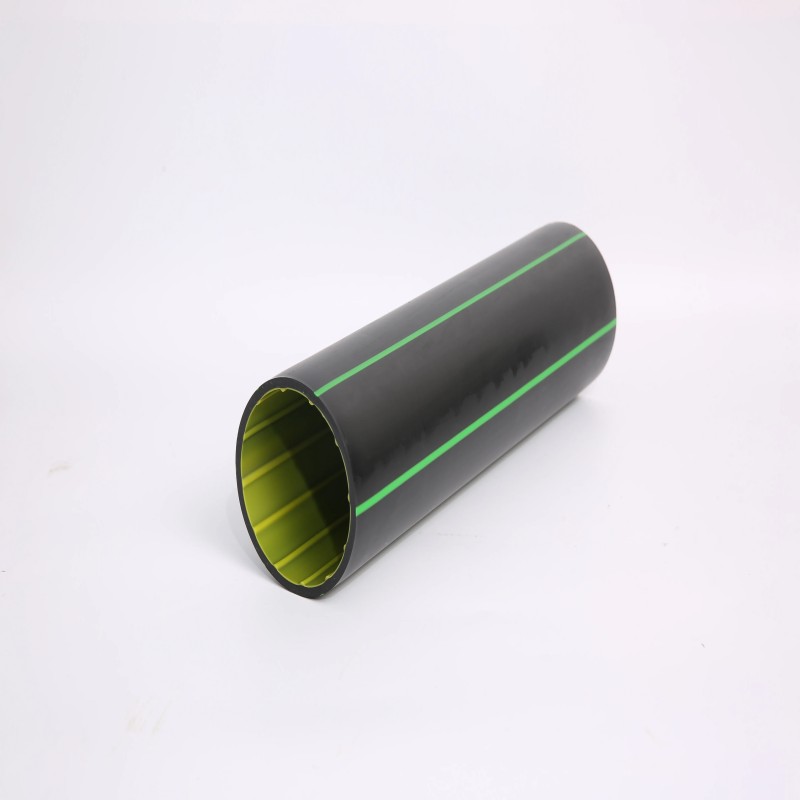

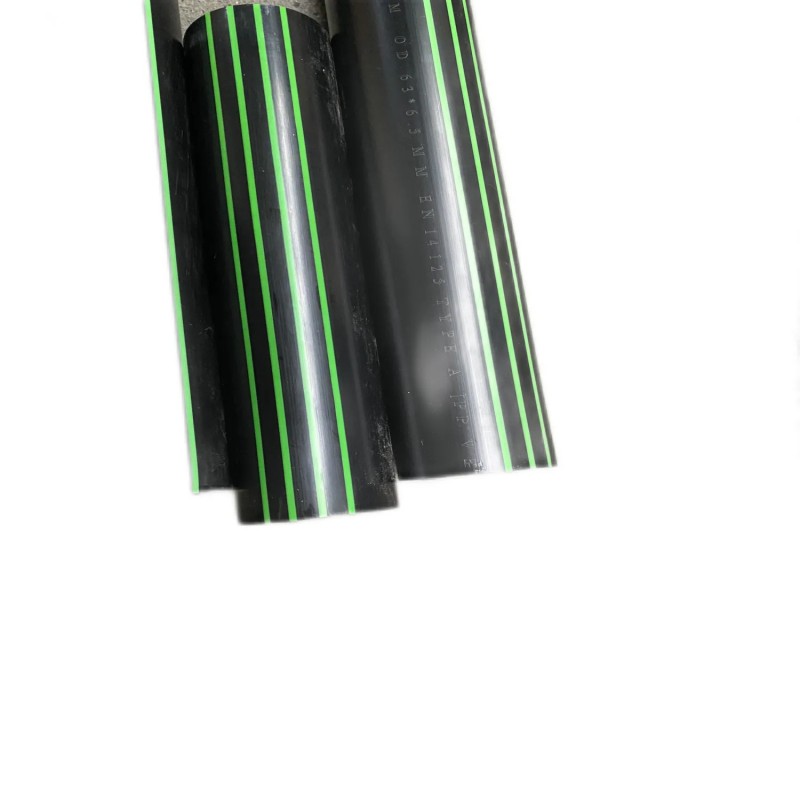

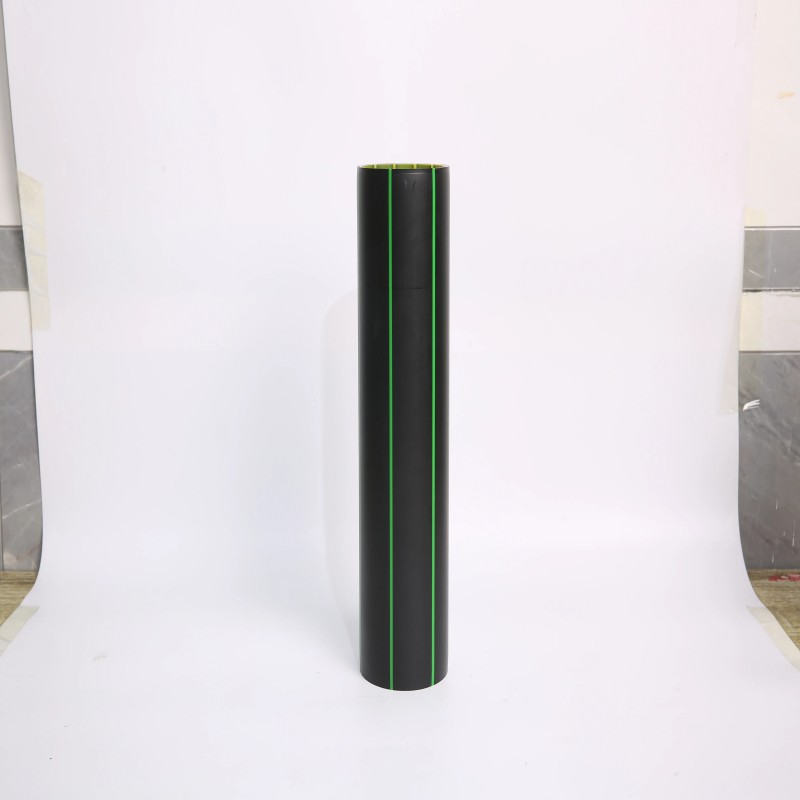

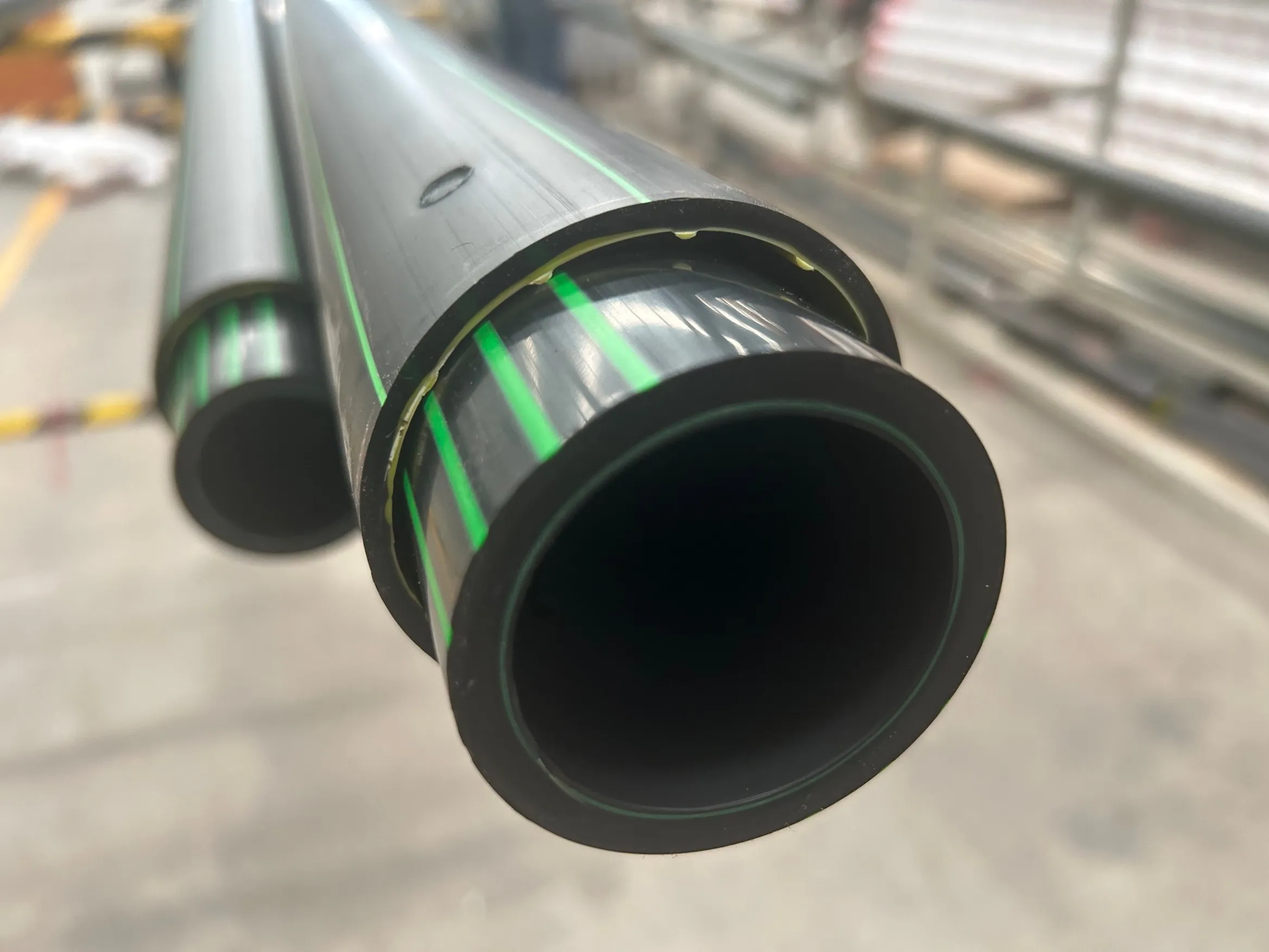

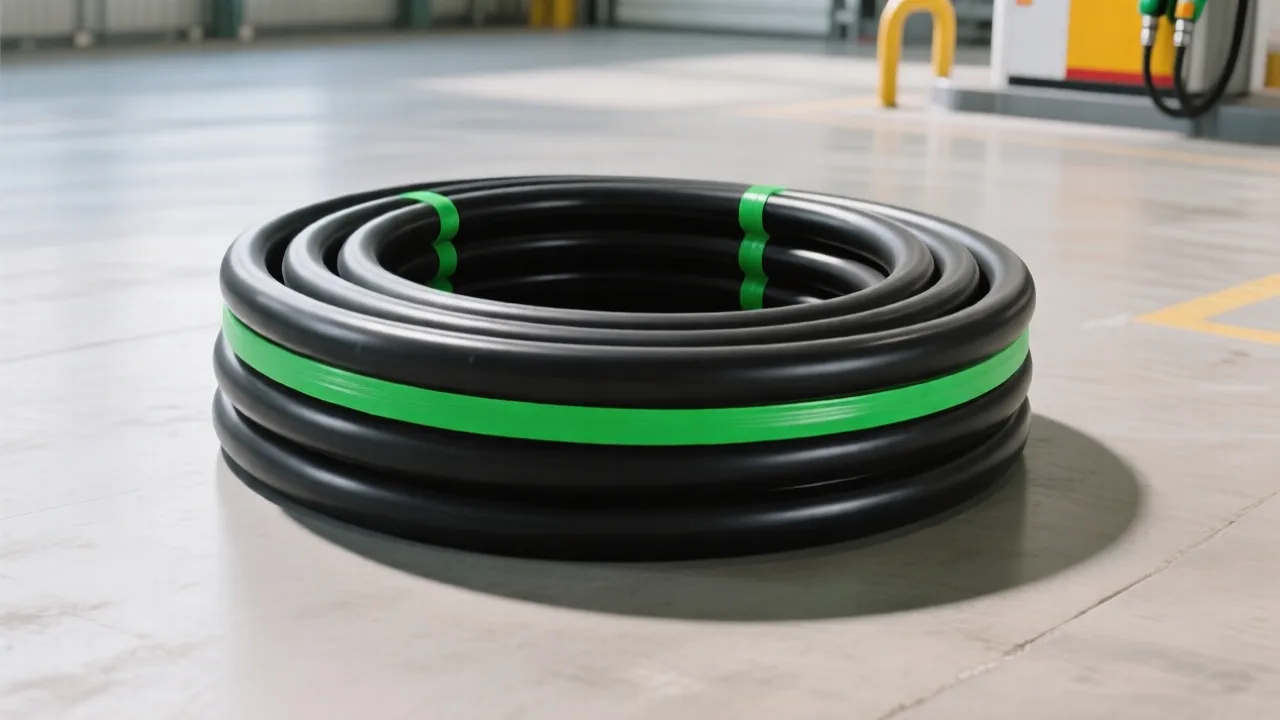

Composite pipe with green identification stripe

Composite Pipe with Green Stripe

View Full Shop →

Engineered for Underground Fuel Service

🧪
Imported HDPE Raw MaterialHigh-grade HDPE compound with stabilizer system for long service life.
⚡
Anti-Static DesignSurface resistance <10⁷ Ω — safe static dissipation during fuel flow.
🌡️
Weather-ResistantWorking temperature from -40°C to 50°C, built for outdoor buried service.
🔧
Rated Pressure 1 MPaReliable pressure rating for fuel dispensing and delivery systems.

We are not a trader. We are the manufacturer.

Full in-house production chain — from raw material to finished product inspection.

Shop Our Products

Complete composite piping systems — pipes and electrofusion fittings engineered for underground fuel service.

Loading products…

Inquiry & Negotiation

If you have demands for procurement or project cooperation, please feel free to contact us for consultation and negotiation. We will provide one-on-one Q&A and customize suitable solutions for you.

Submit Documents

Detailed FAQs About Double-Wall Composite Pipes

The Vohon double-wall system — EVOH-lined inner pipe, antistatic layer and monitored interstitial space for complete buried fuel protection.

A double-wall composite pipe has an inner pipe lined with EVOH resin for leak-proof performance, plus an outer wall with a monitored interstitial space in between. If the inner pipe ever leaks, the product is contained in the annulus and can be detected — providing secondary containment for buried fuel lines.

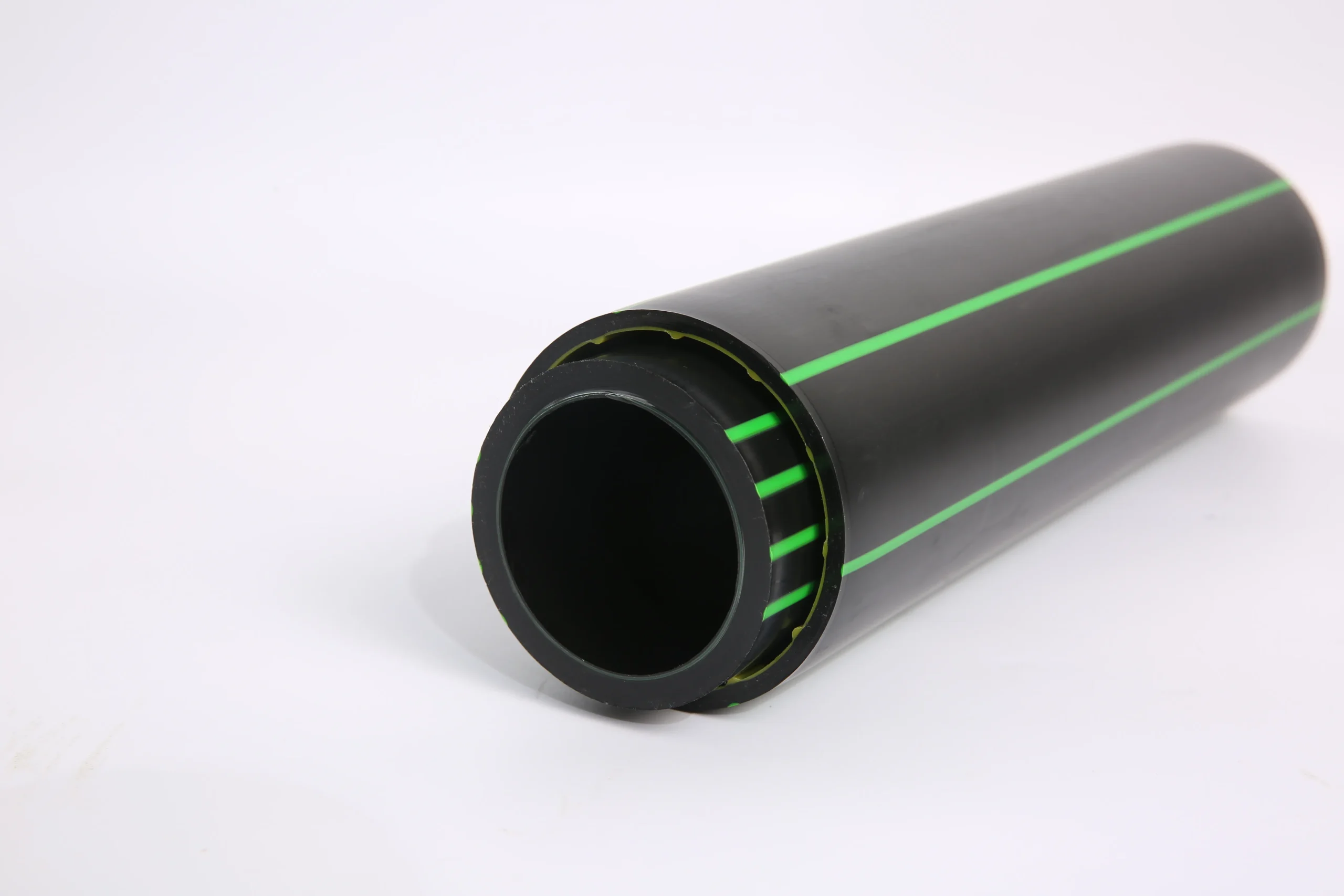

Three double-wall models: AY-01-65/54 (54 mm) in 50/30/20 m coils, AY-01-75/63 (63 mm) in 100/75/50/30/20/6.0/1.0 m, and AY-01-125/110 (110 mm) in 6.0 m sticks — covering runs from dispenser lines to main tank piping.
Manufactured from imported HDPE with an EVOH inner lining, the pipe is designed for long-term resistance to fuel permeation, corrosion and soil conditions — built for decades of buried service with proper installation and electrofusion connections.
The interstitial space between the two walls is the key: any product escaping the inner pipe migrates into the annulus, where it is detected by a monitoring system connected through the fittings. This gives continuous secondary containment protection that single-wall systems cannot offer.
The inner tube has a rated operating pressure of 1 MPa, and the nominal operating temperature range is -40°C to 50°C — suitable for fuel dispensing systems and buried outdoor installation in most climates.
The inner pipe includes an antistatic layer with surface resistance below 10⁶ Ω to dissipate static charge from fuel flow. The EVOH lining also acts as an effective permeation barrier for common gasoline blends, including ethanol-blended fuels.

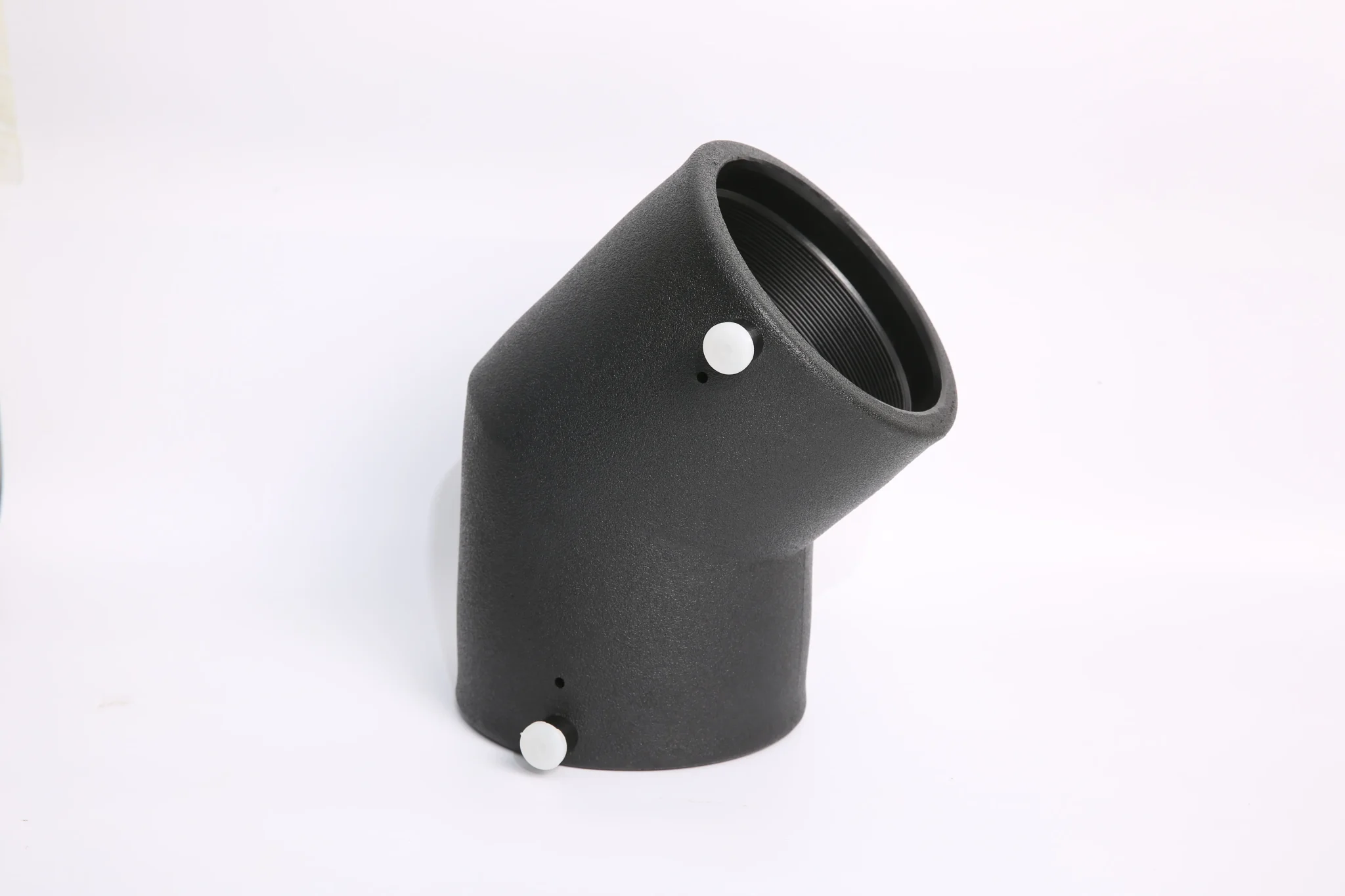

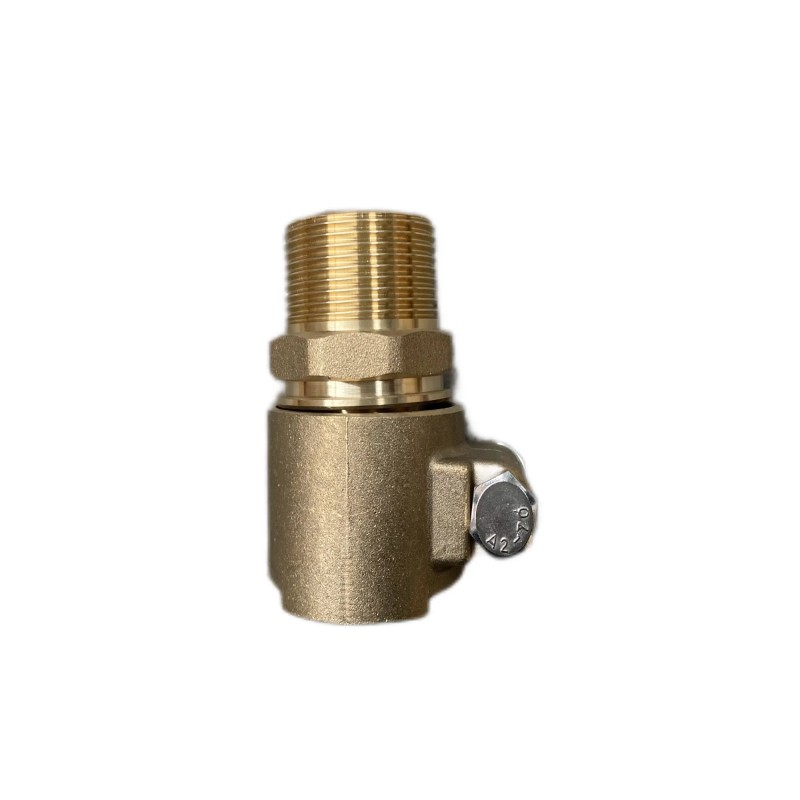

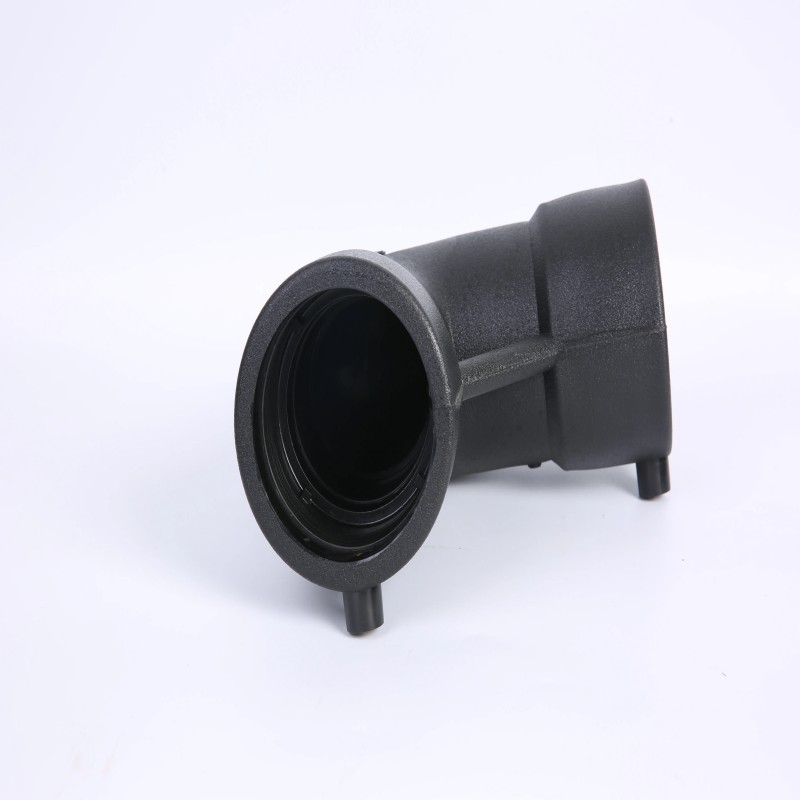

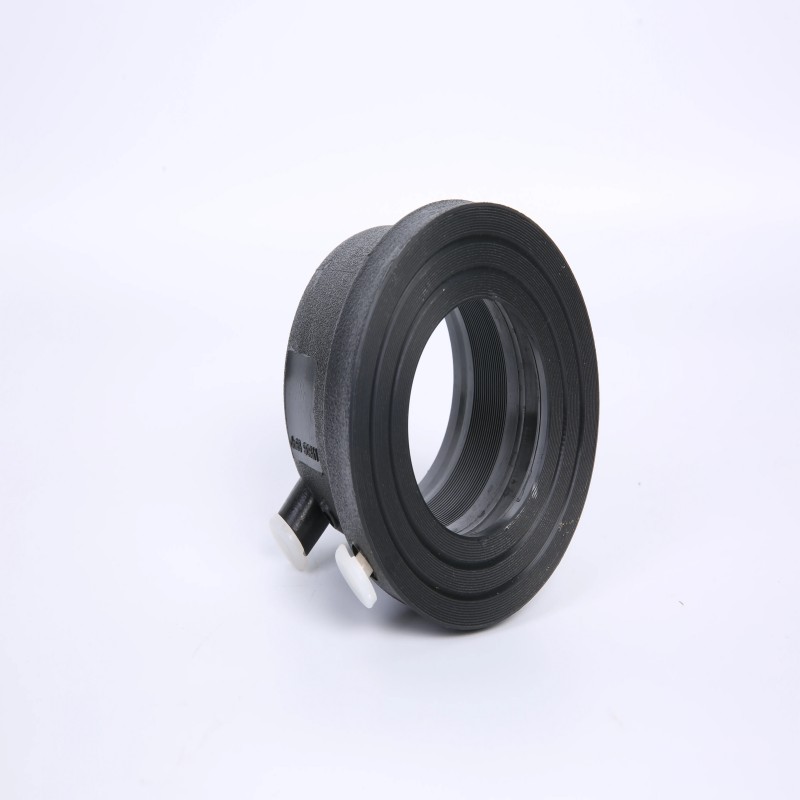

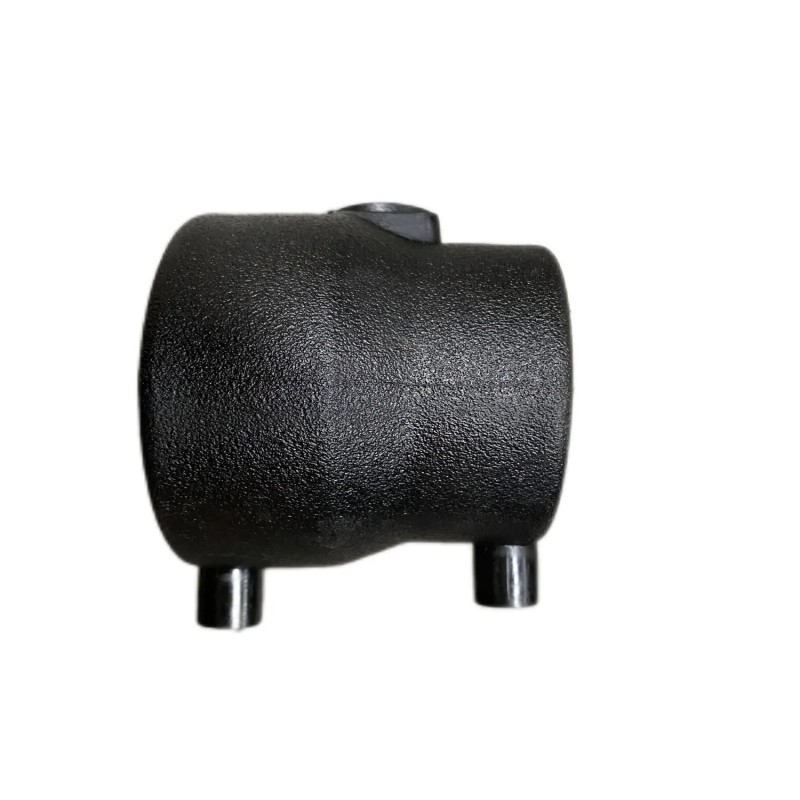

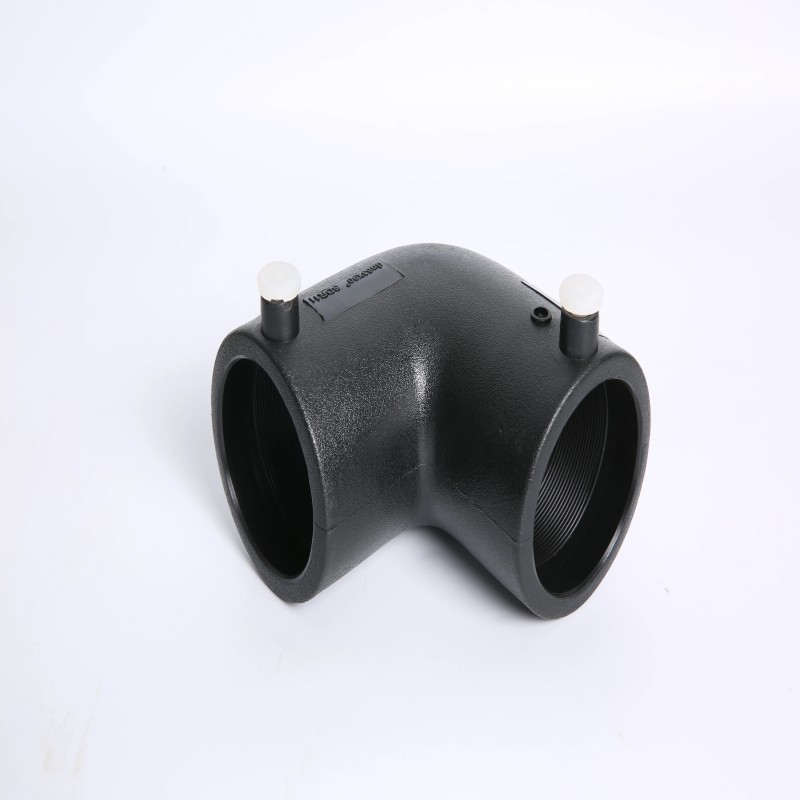

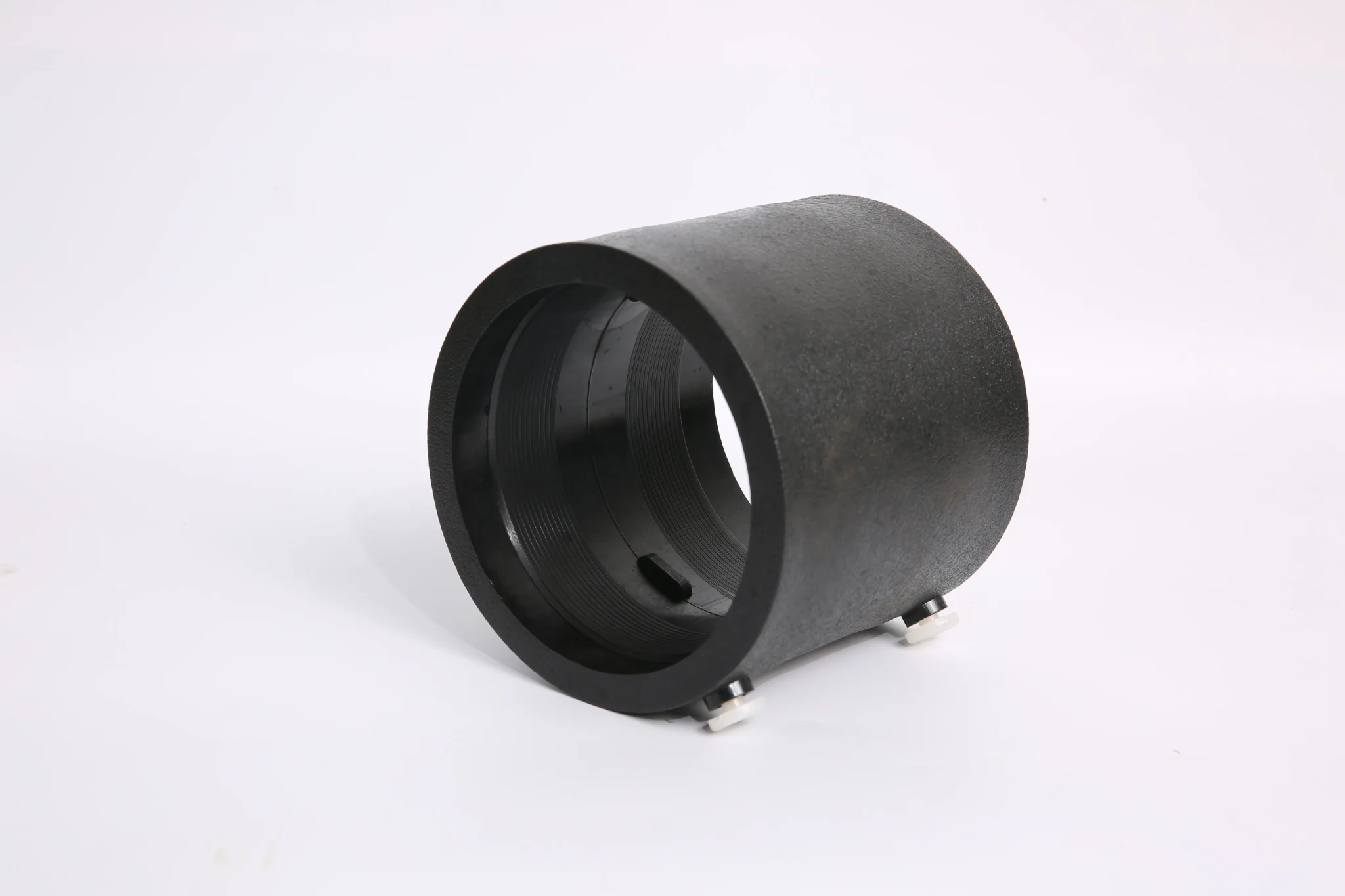

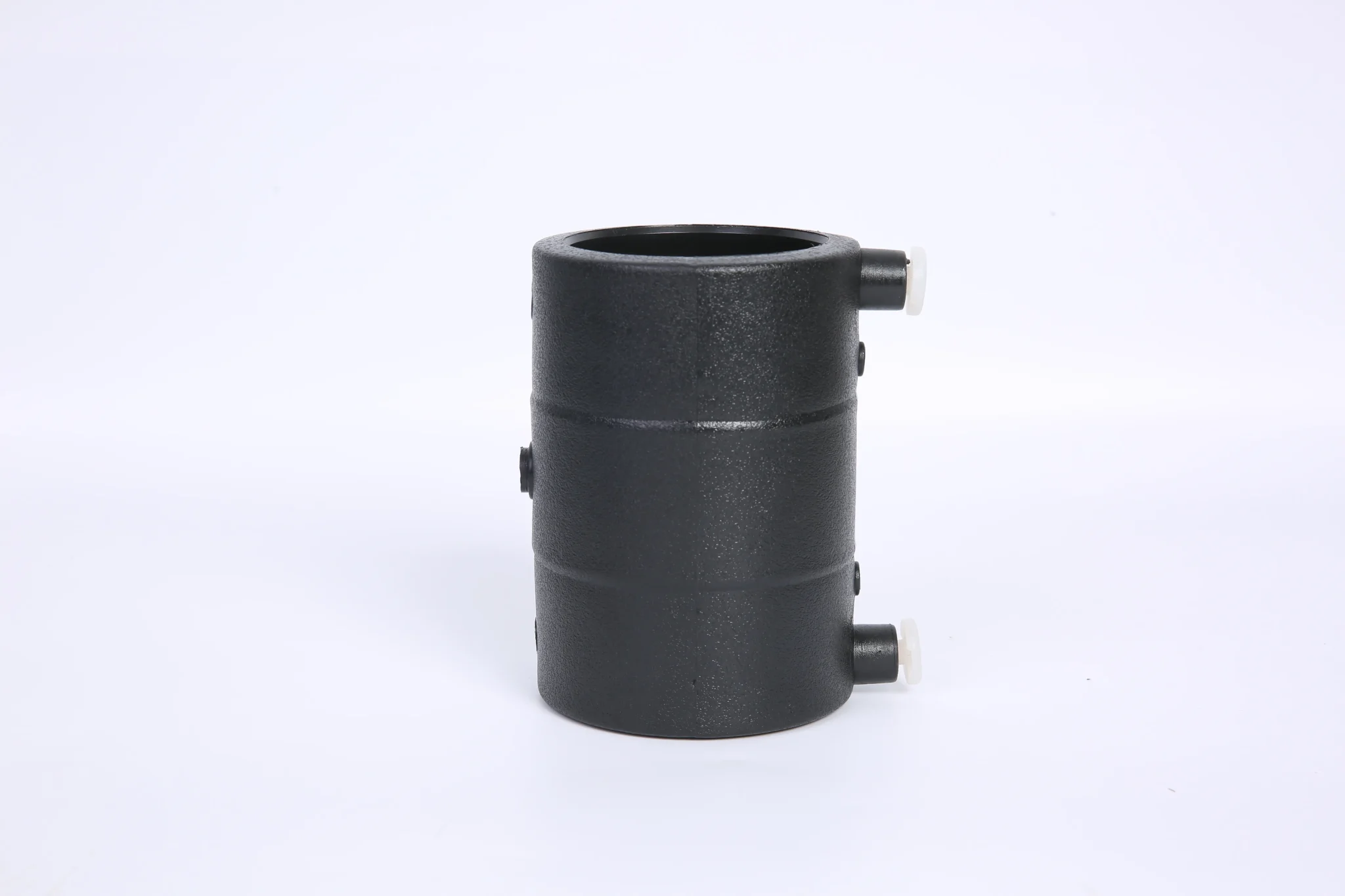

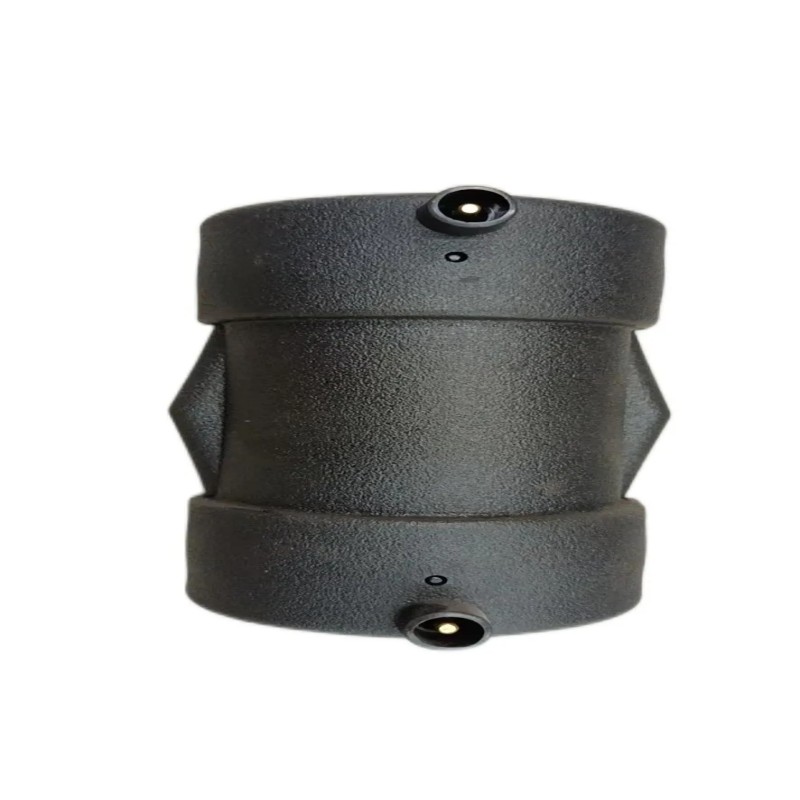

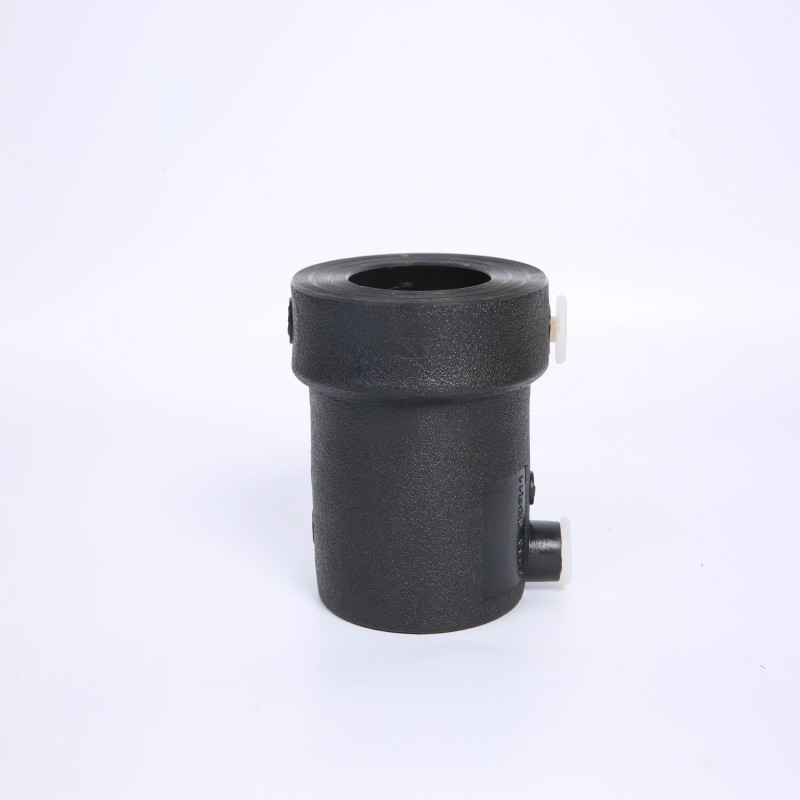

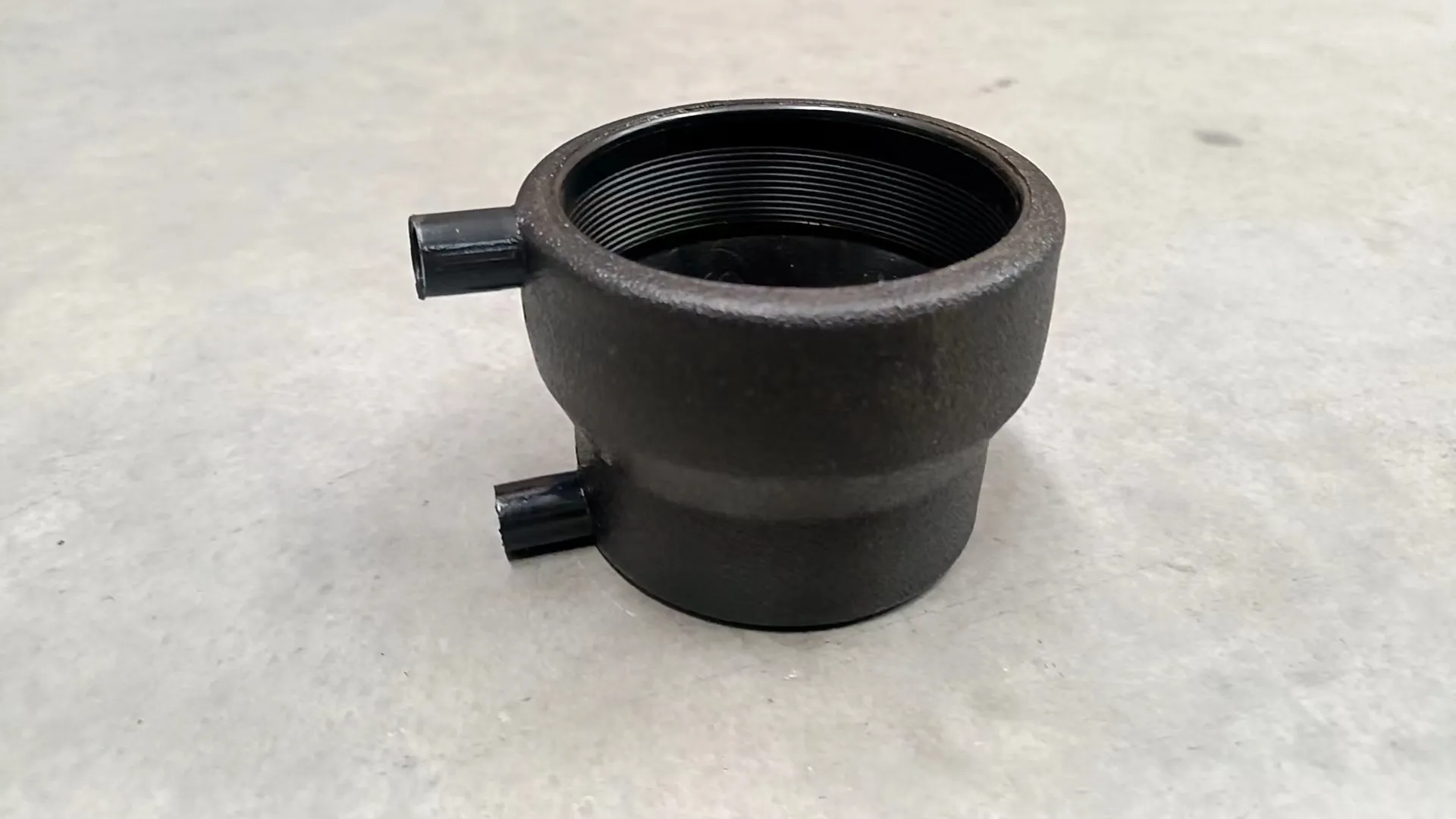

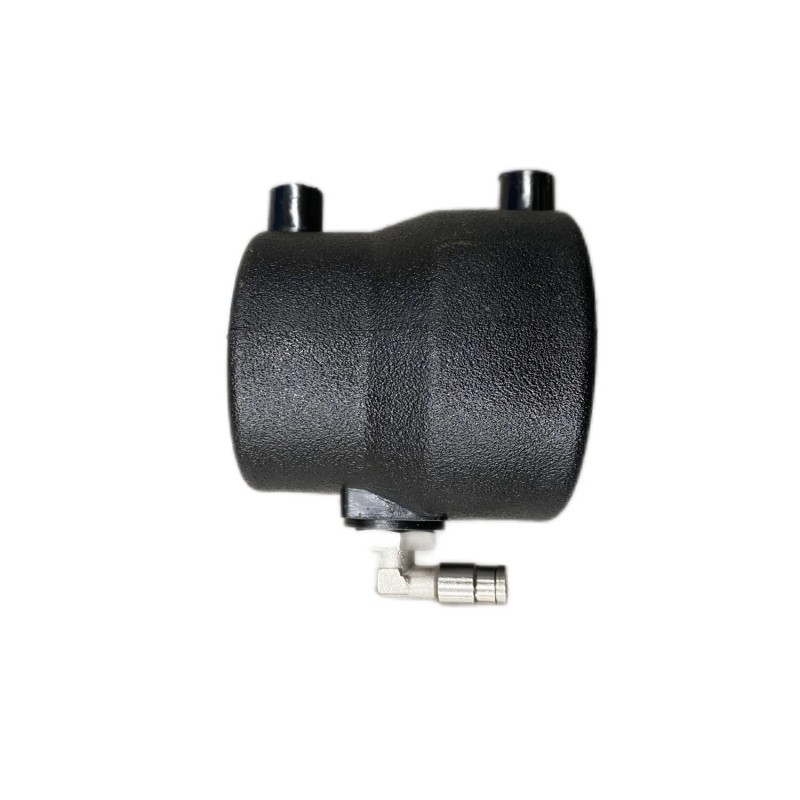

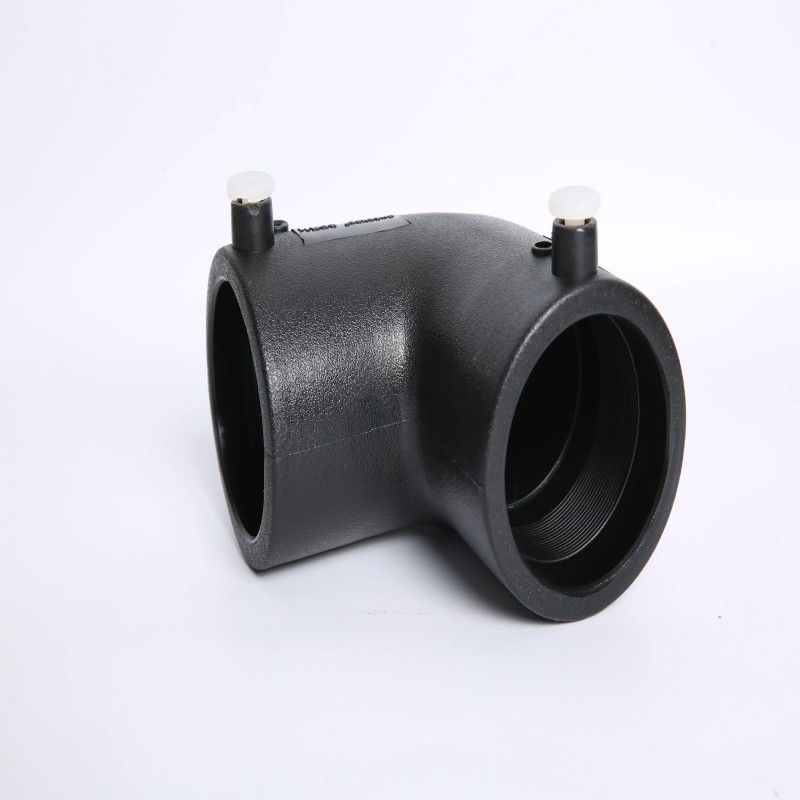

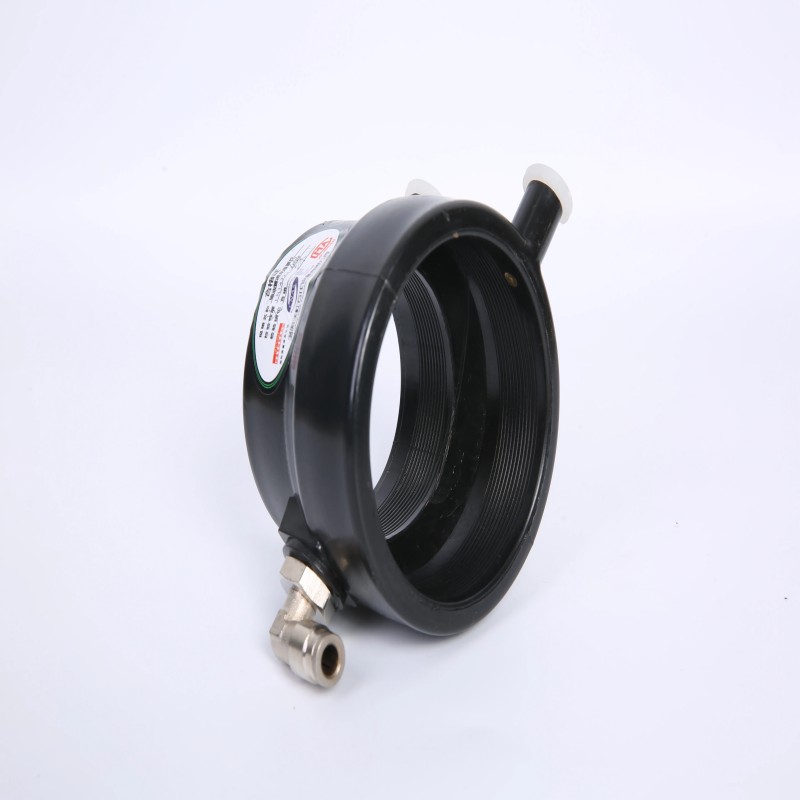

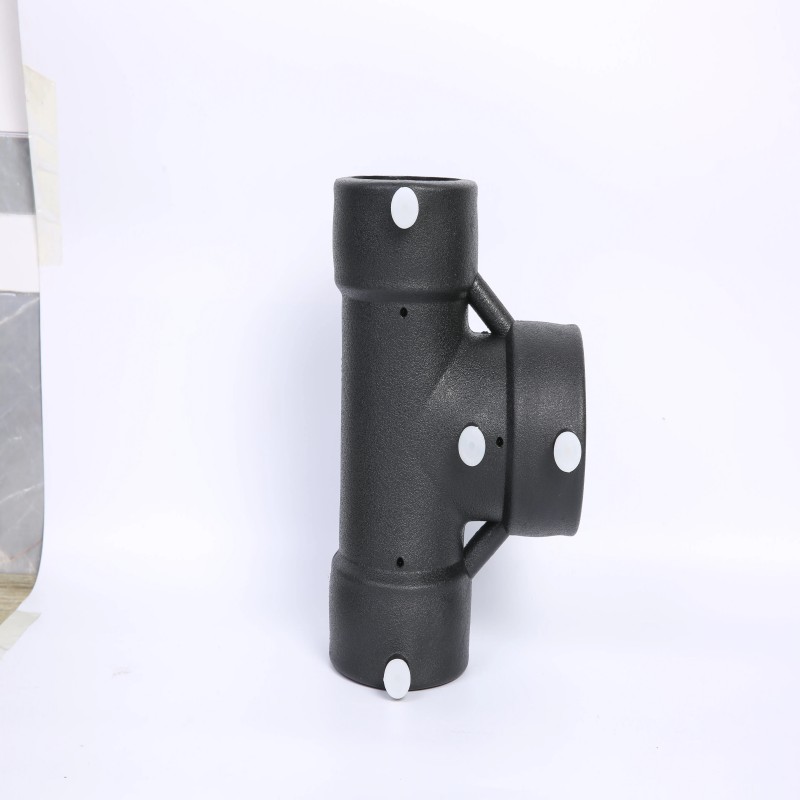

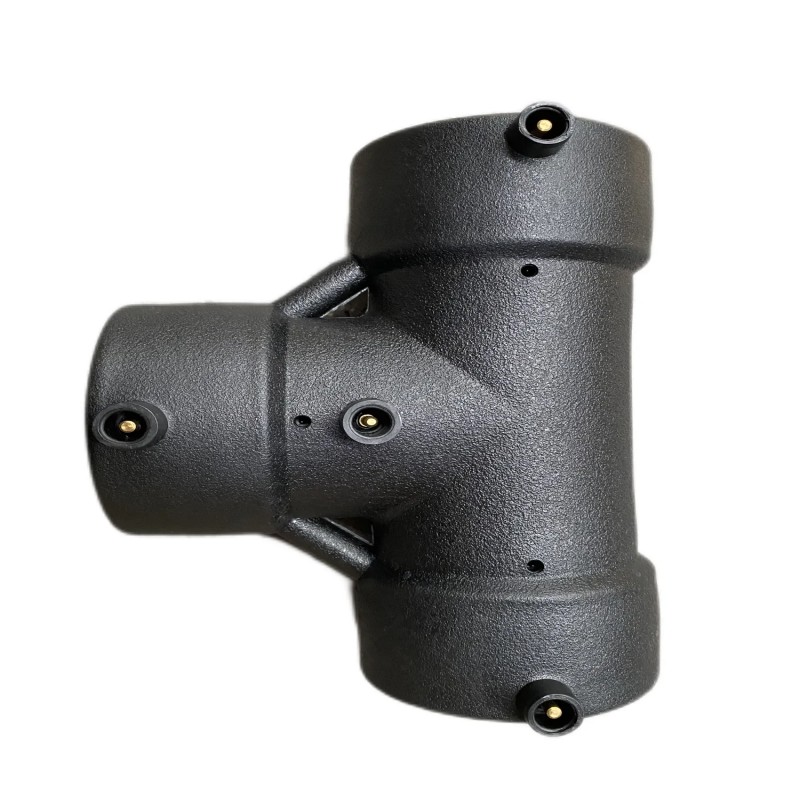

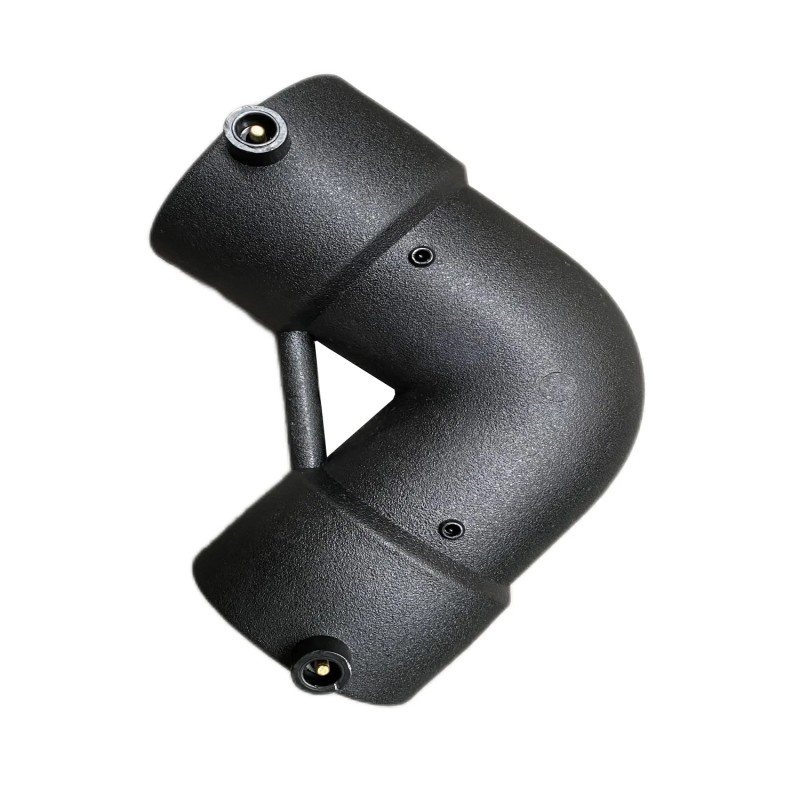

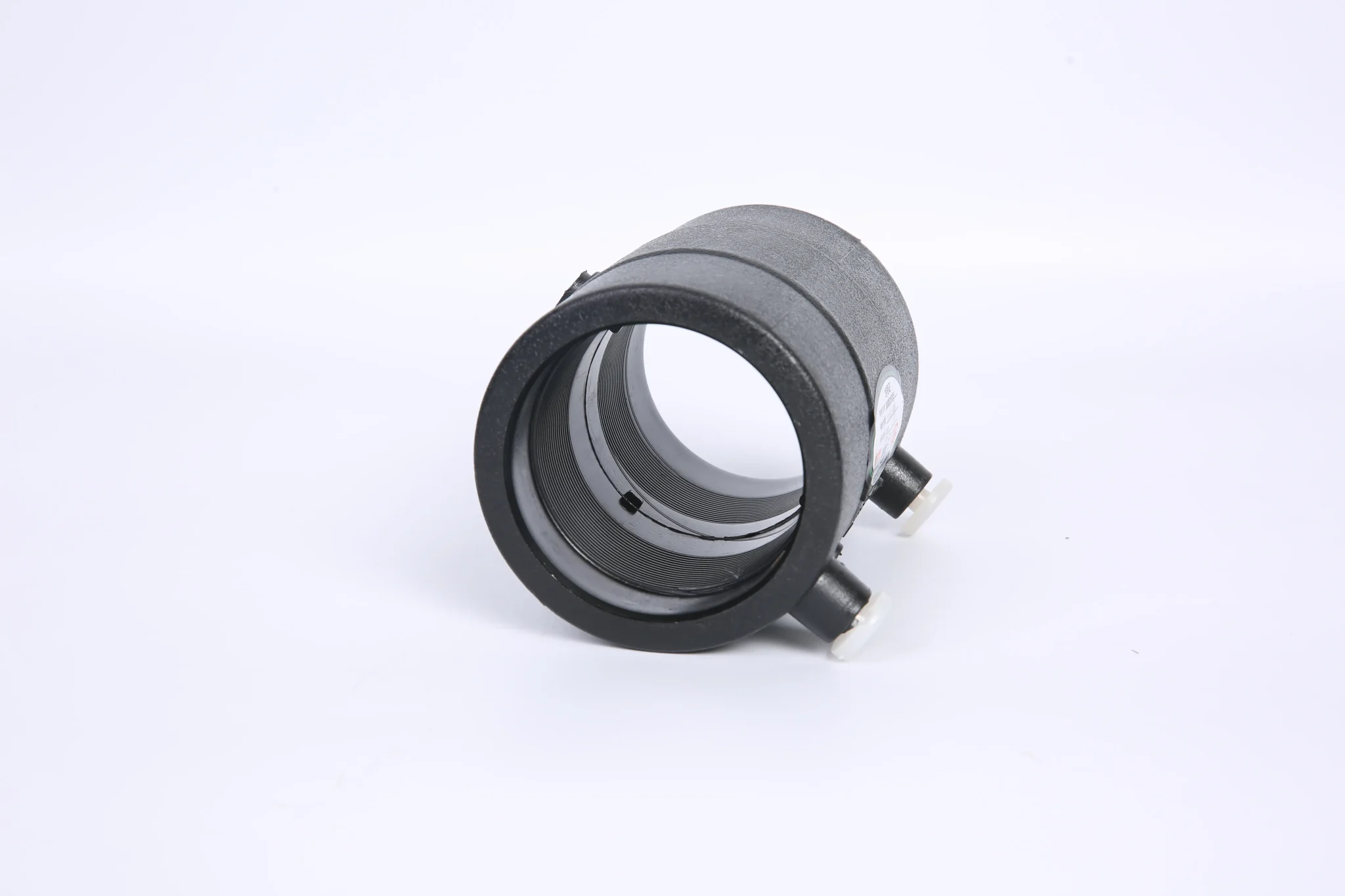

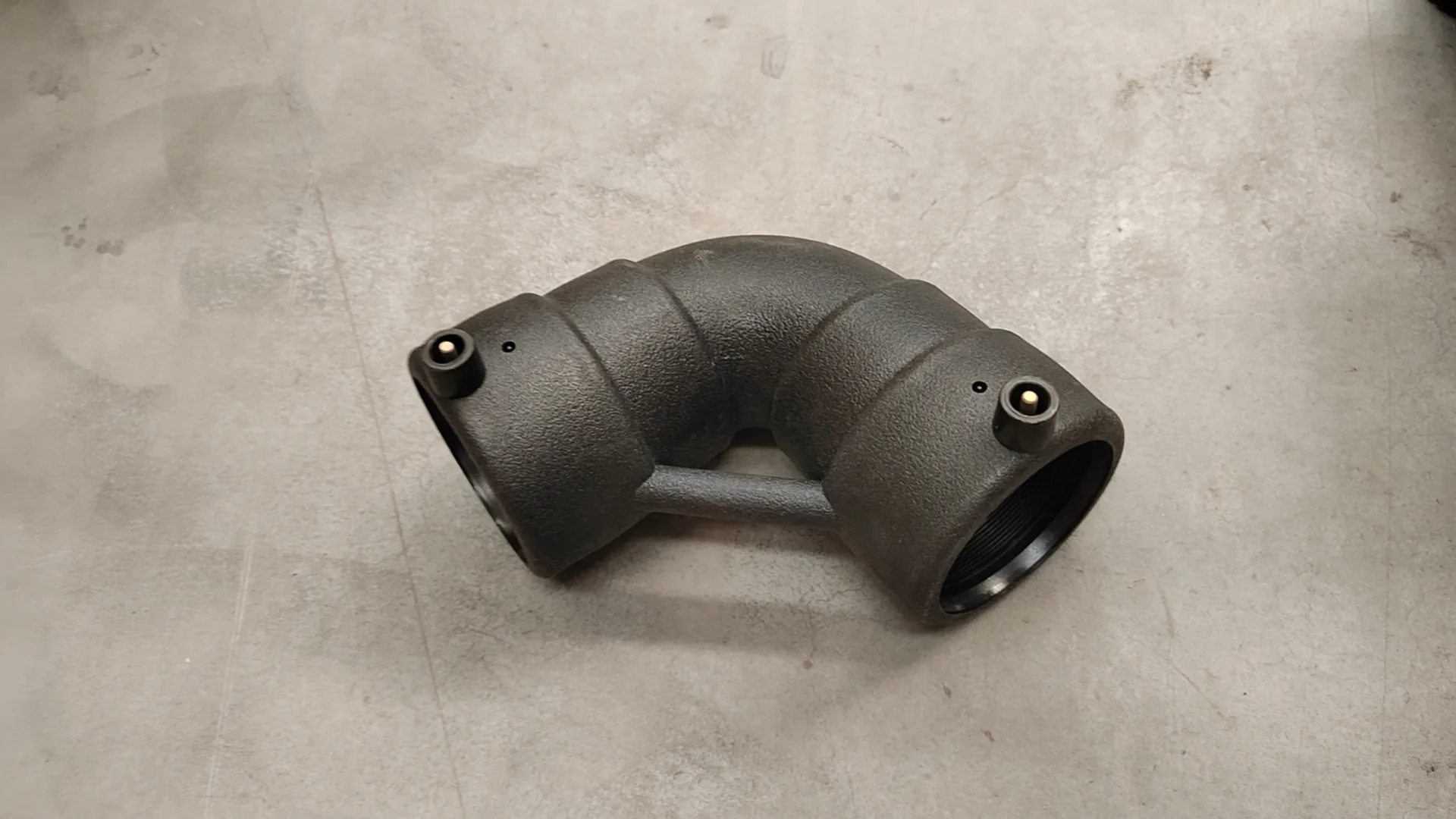

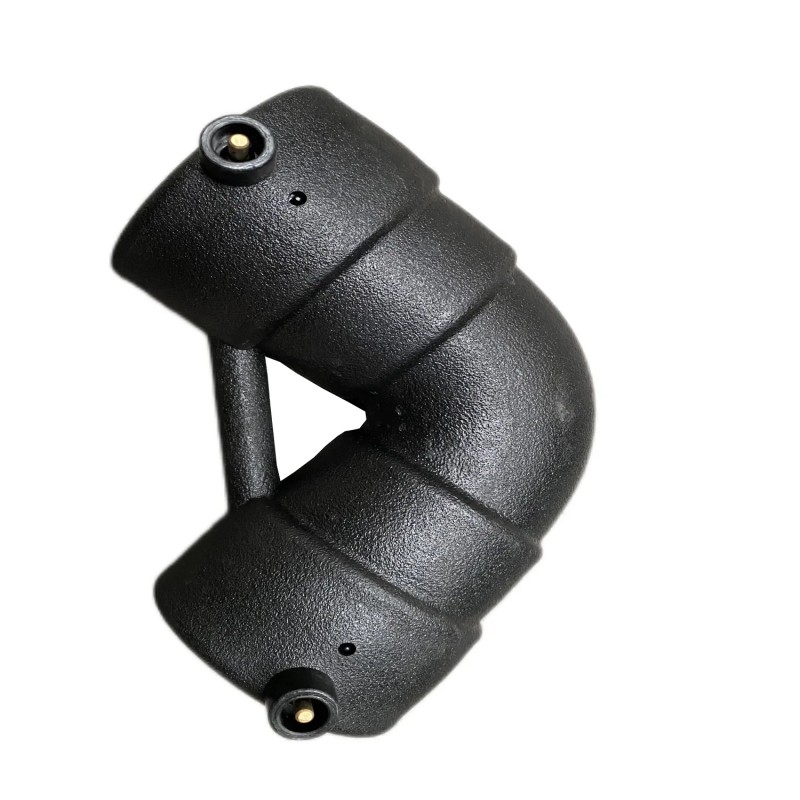

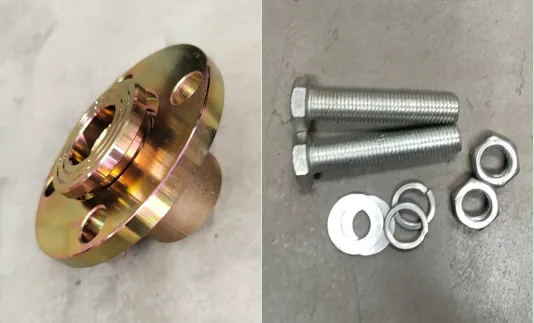

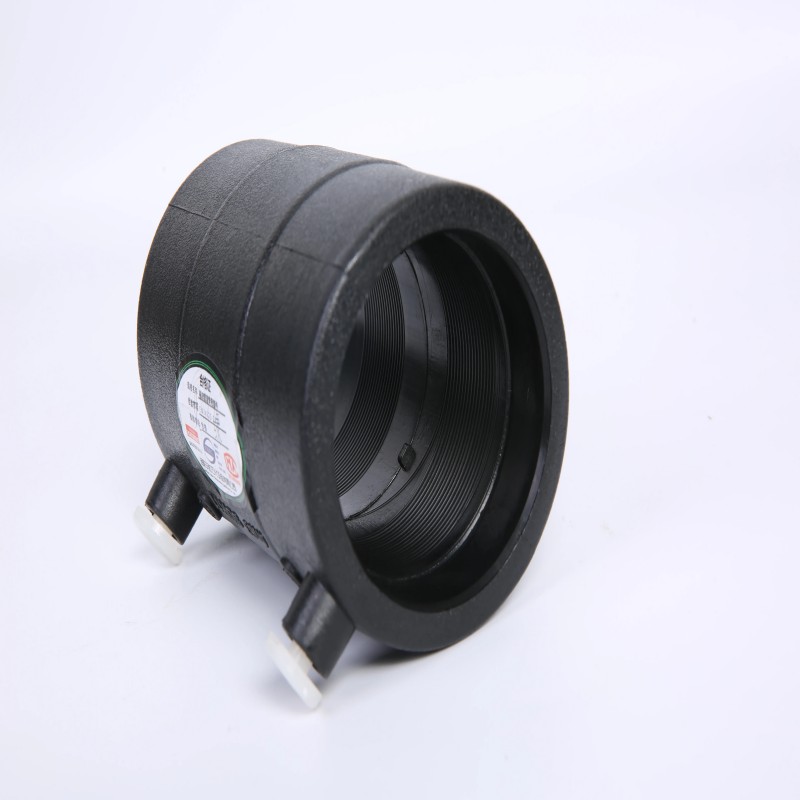

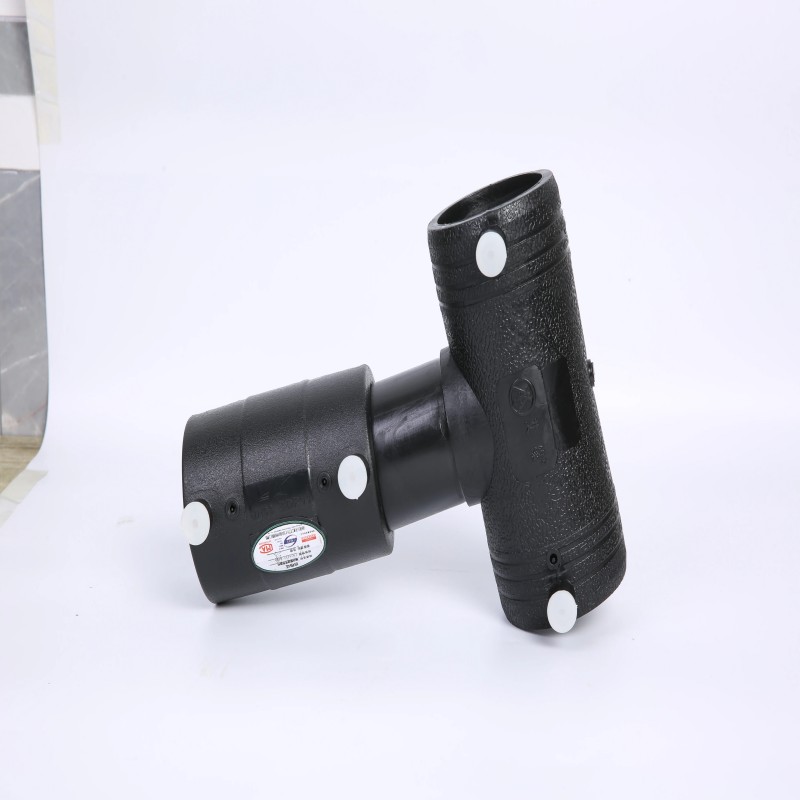

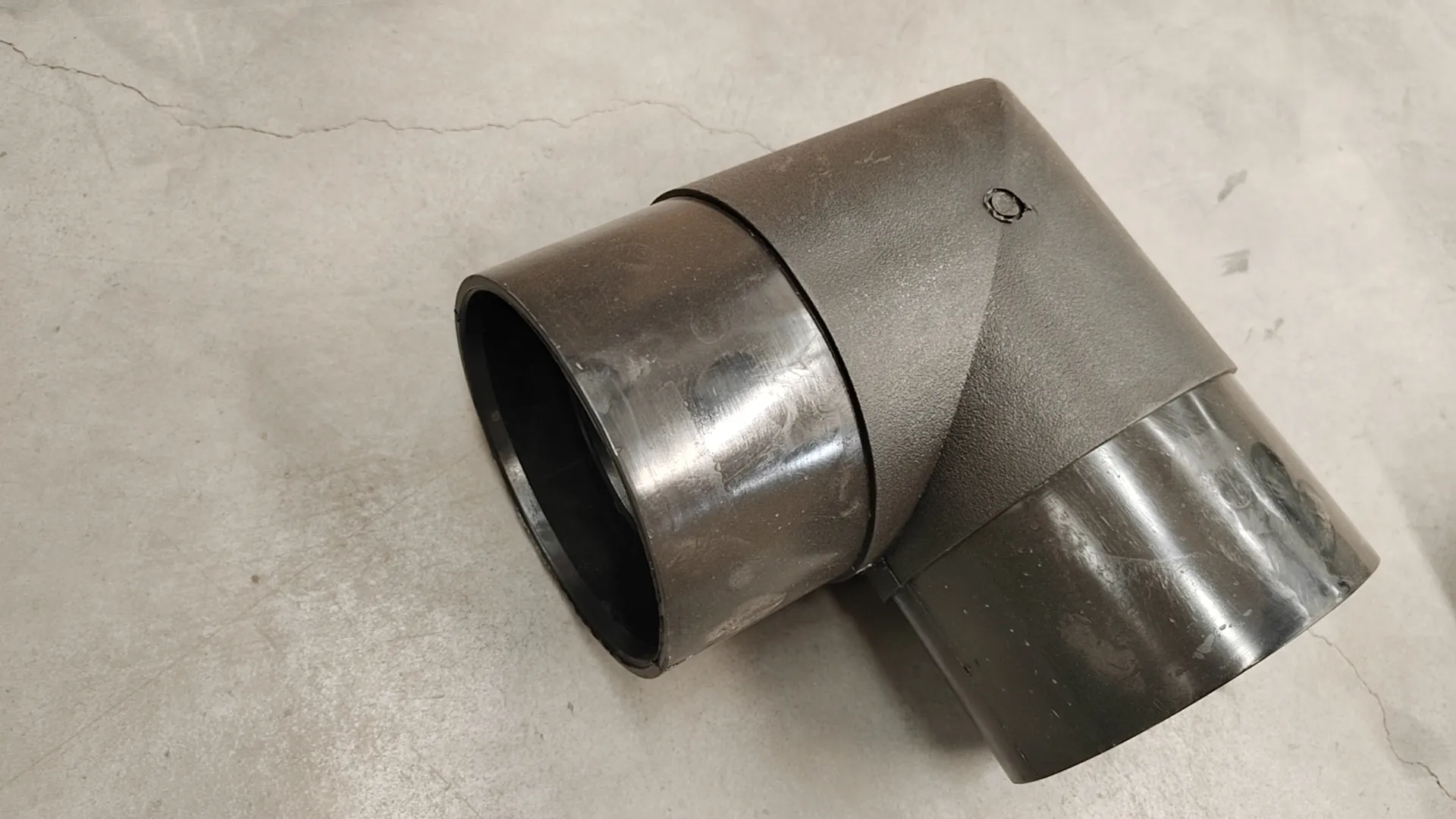

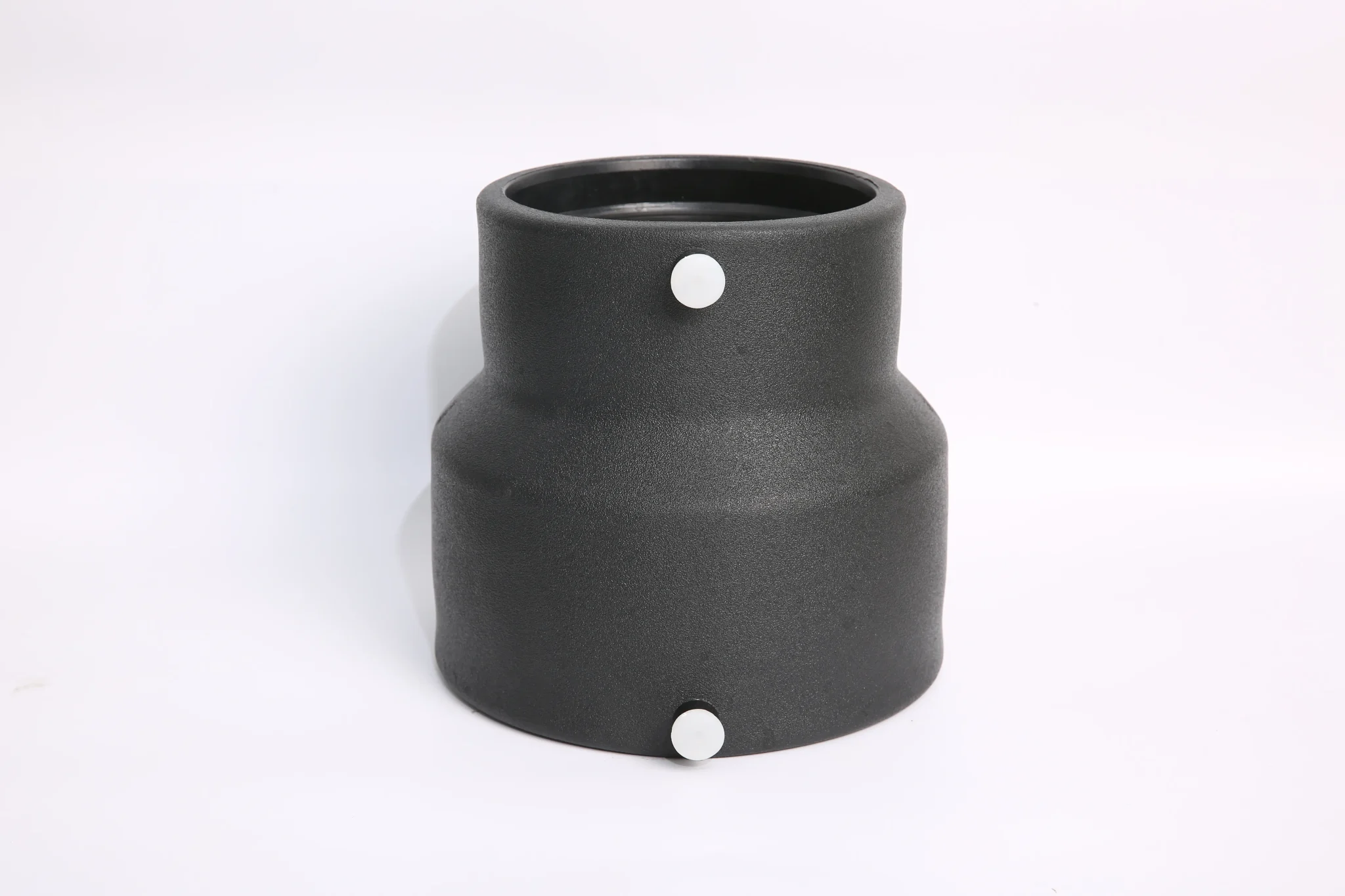

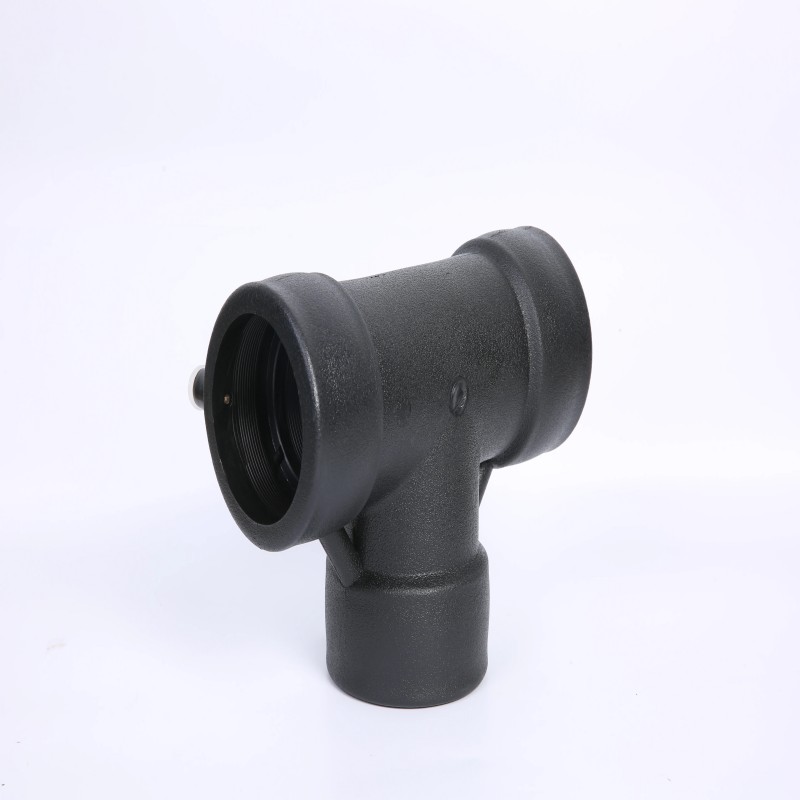

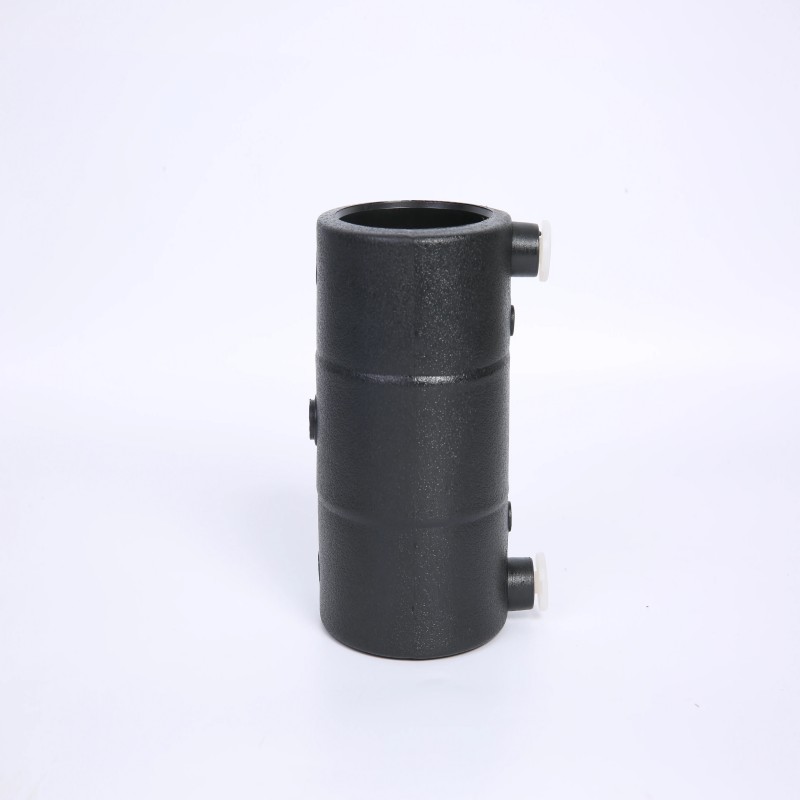

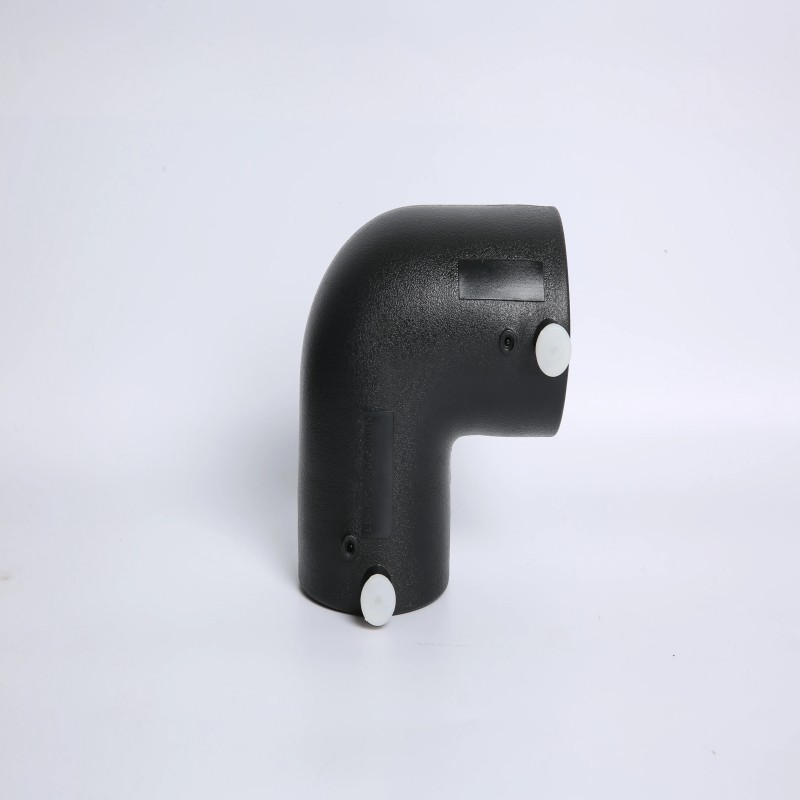

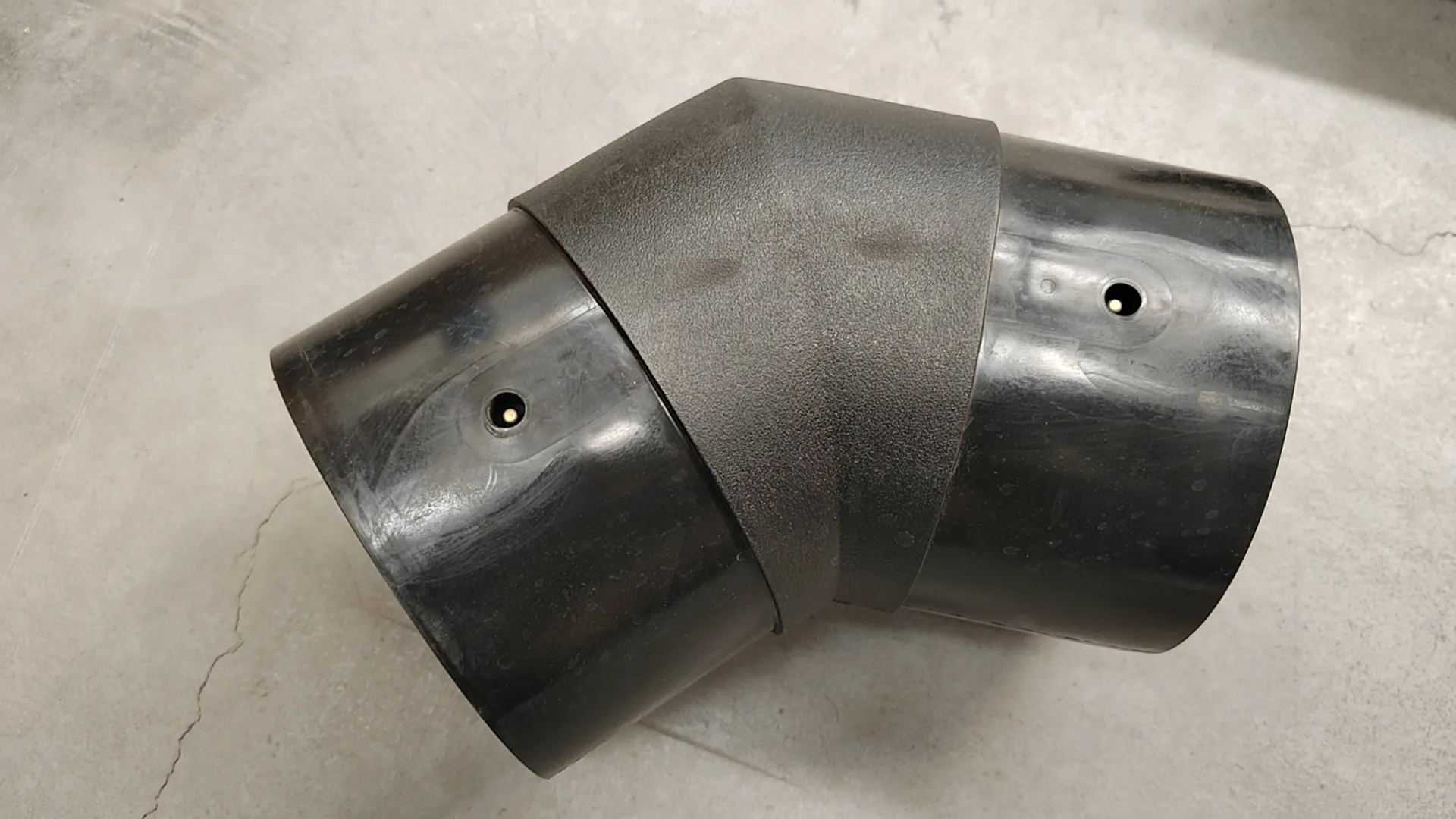

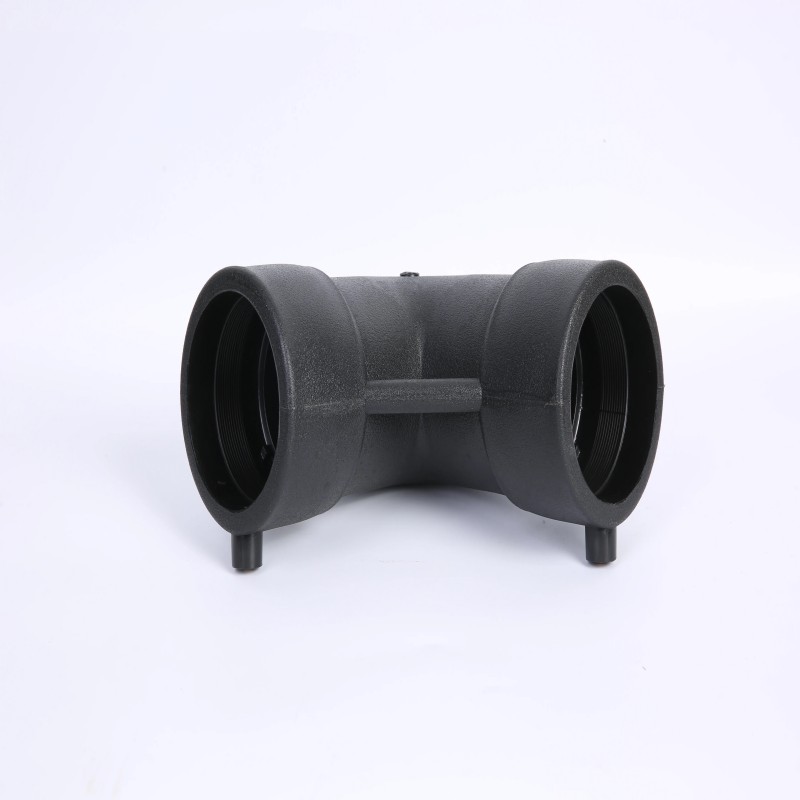

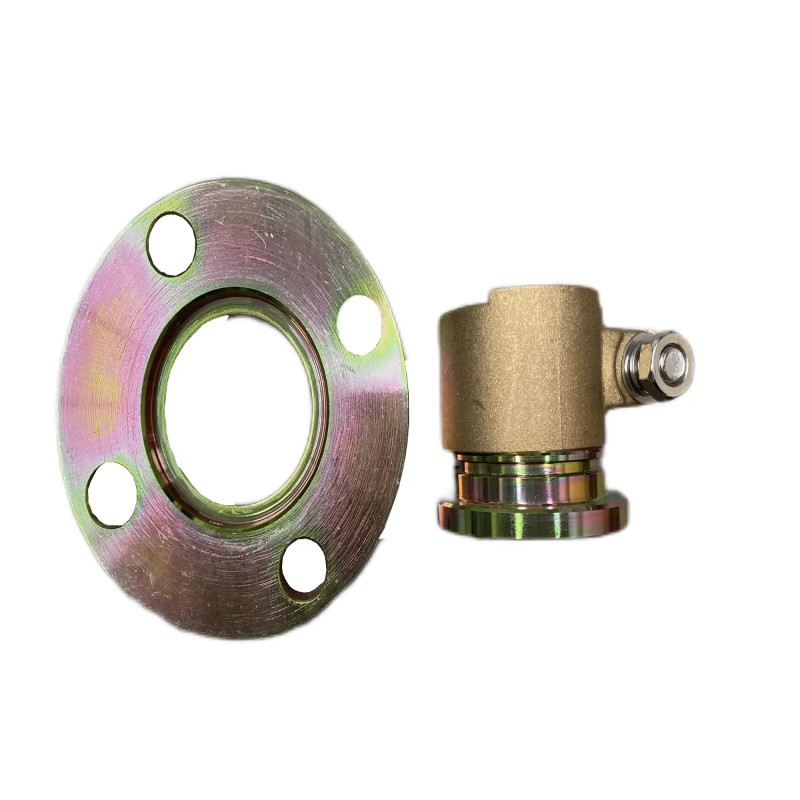

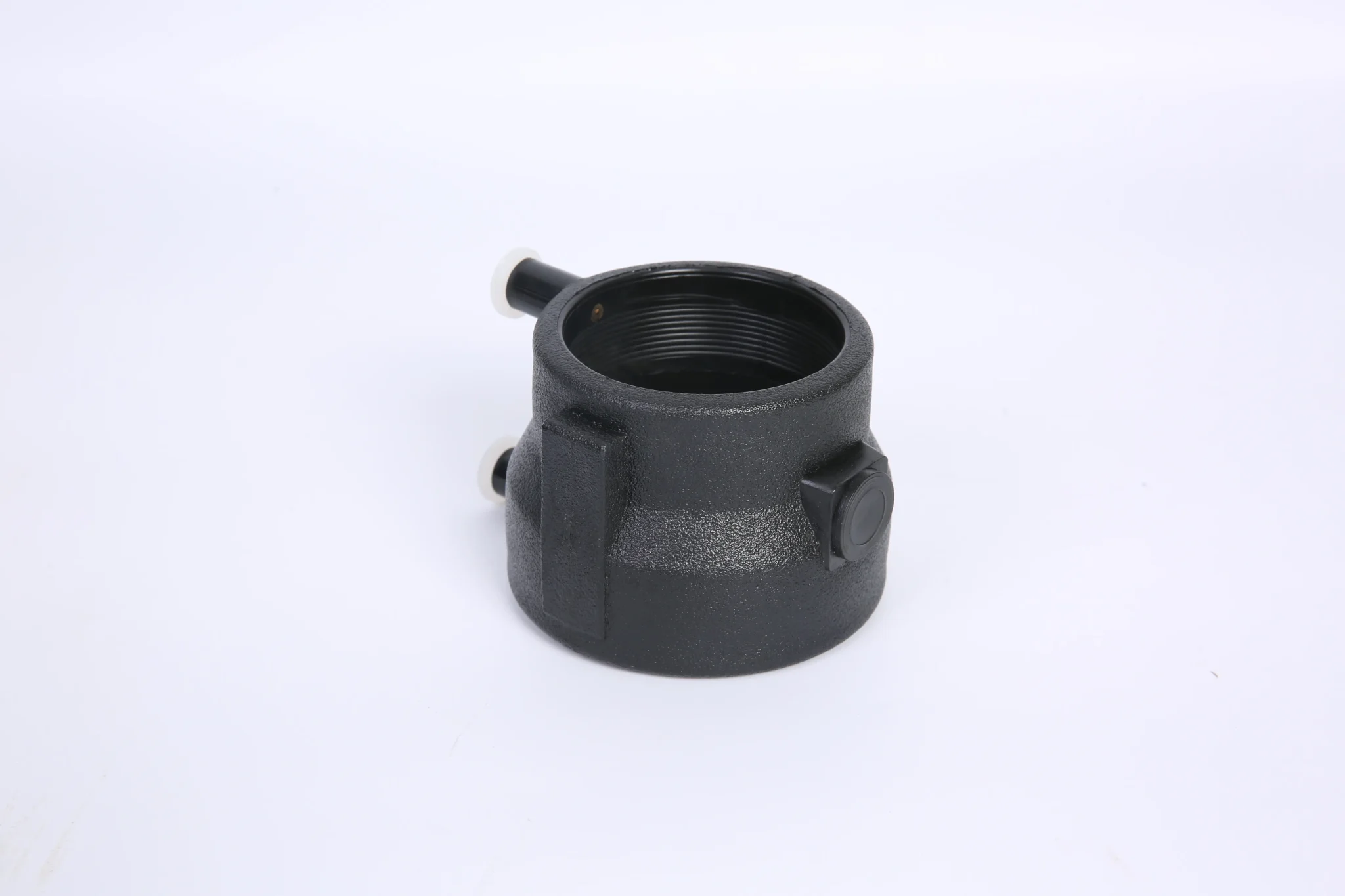

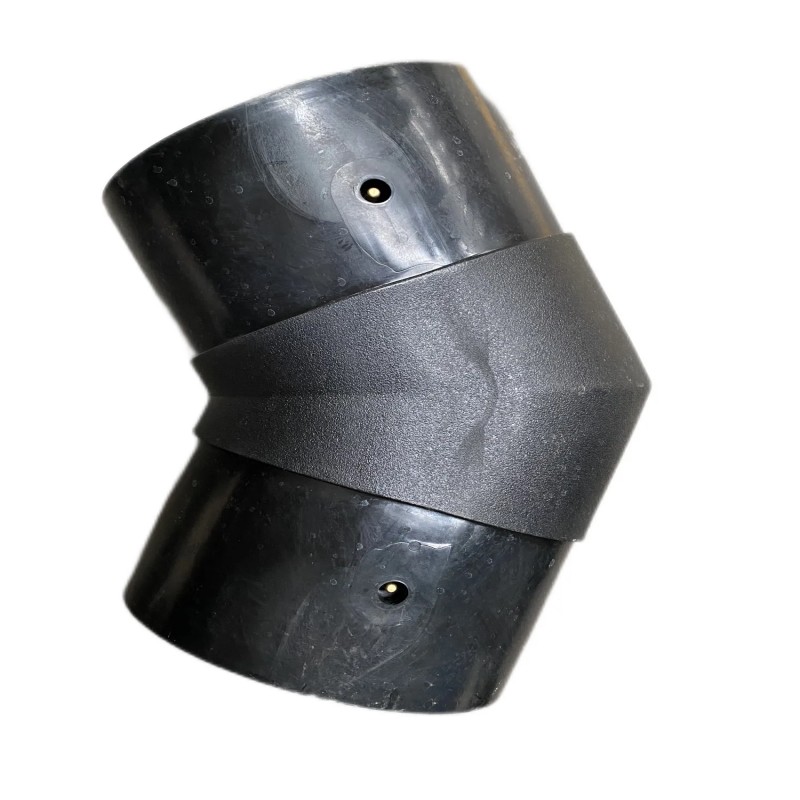

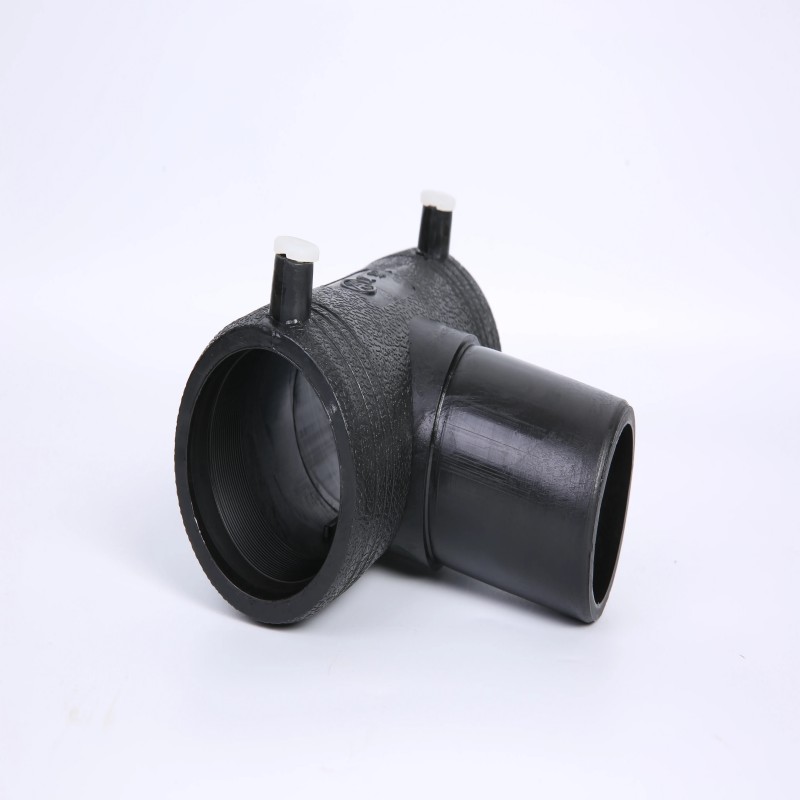

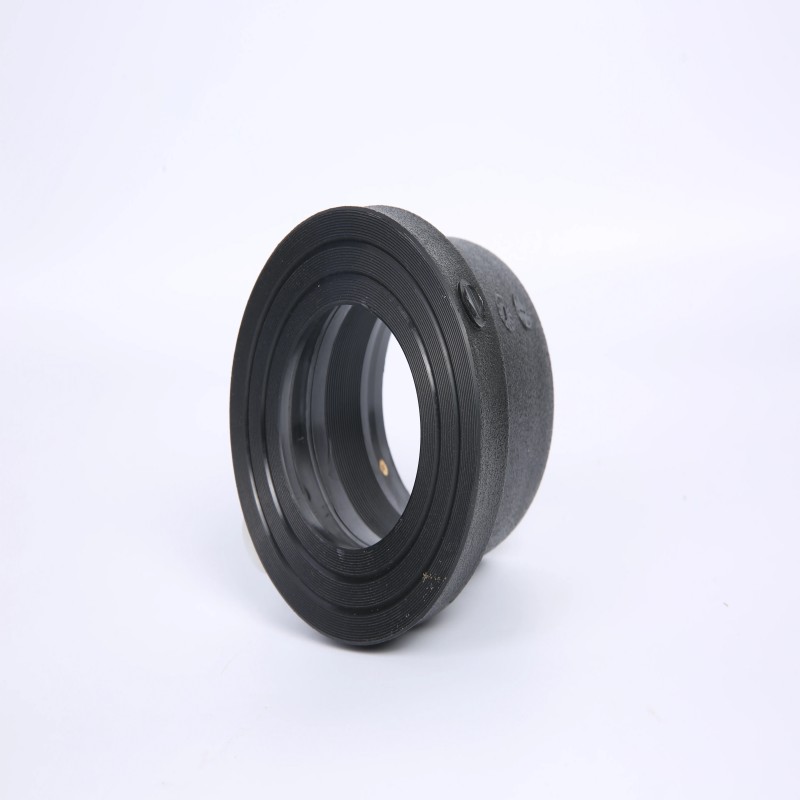

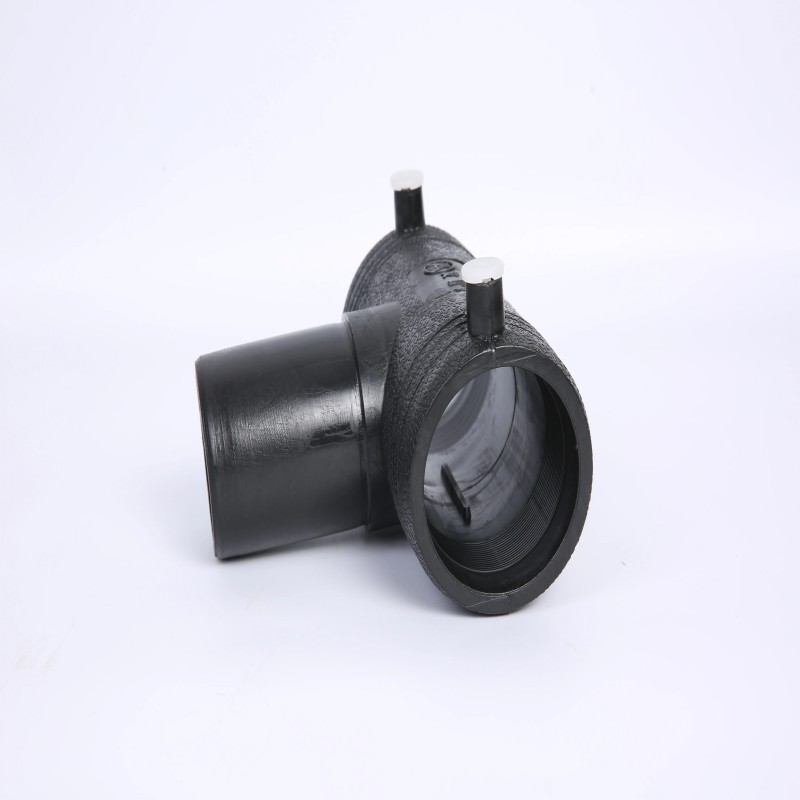

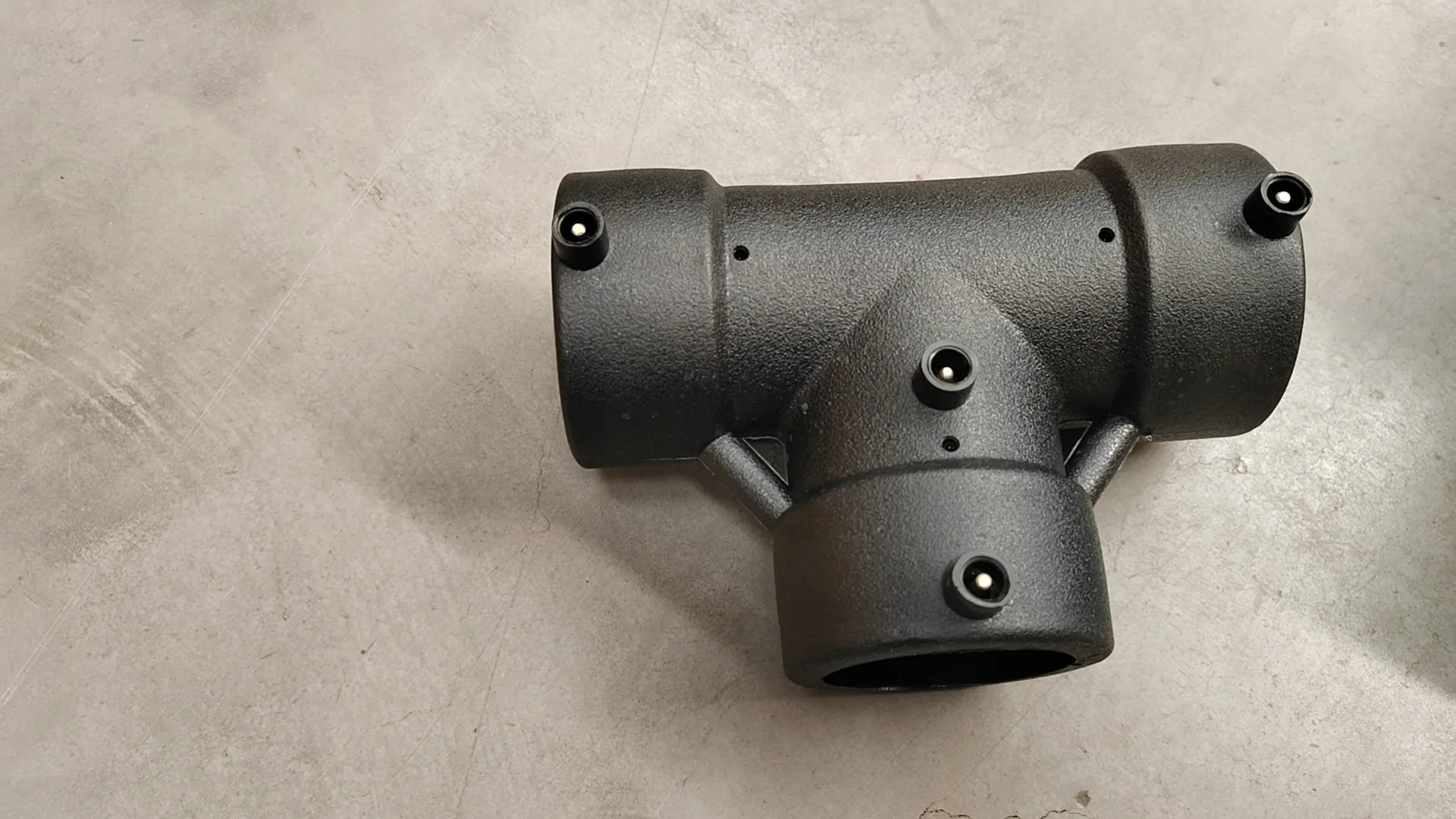

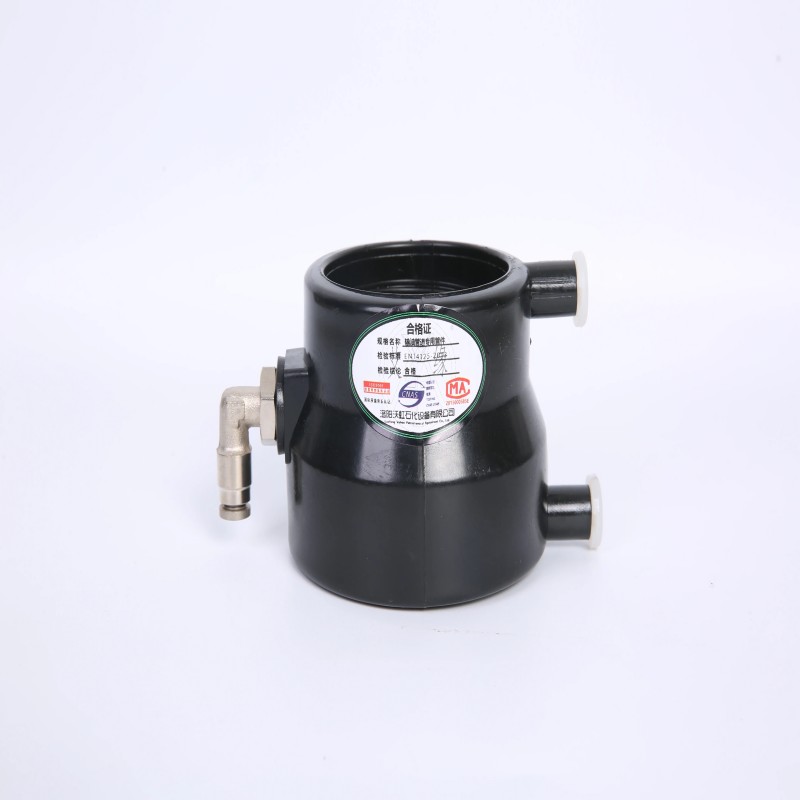

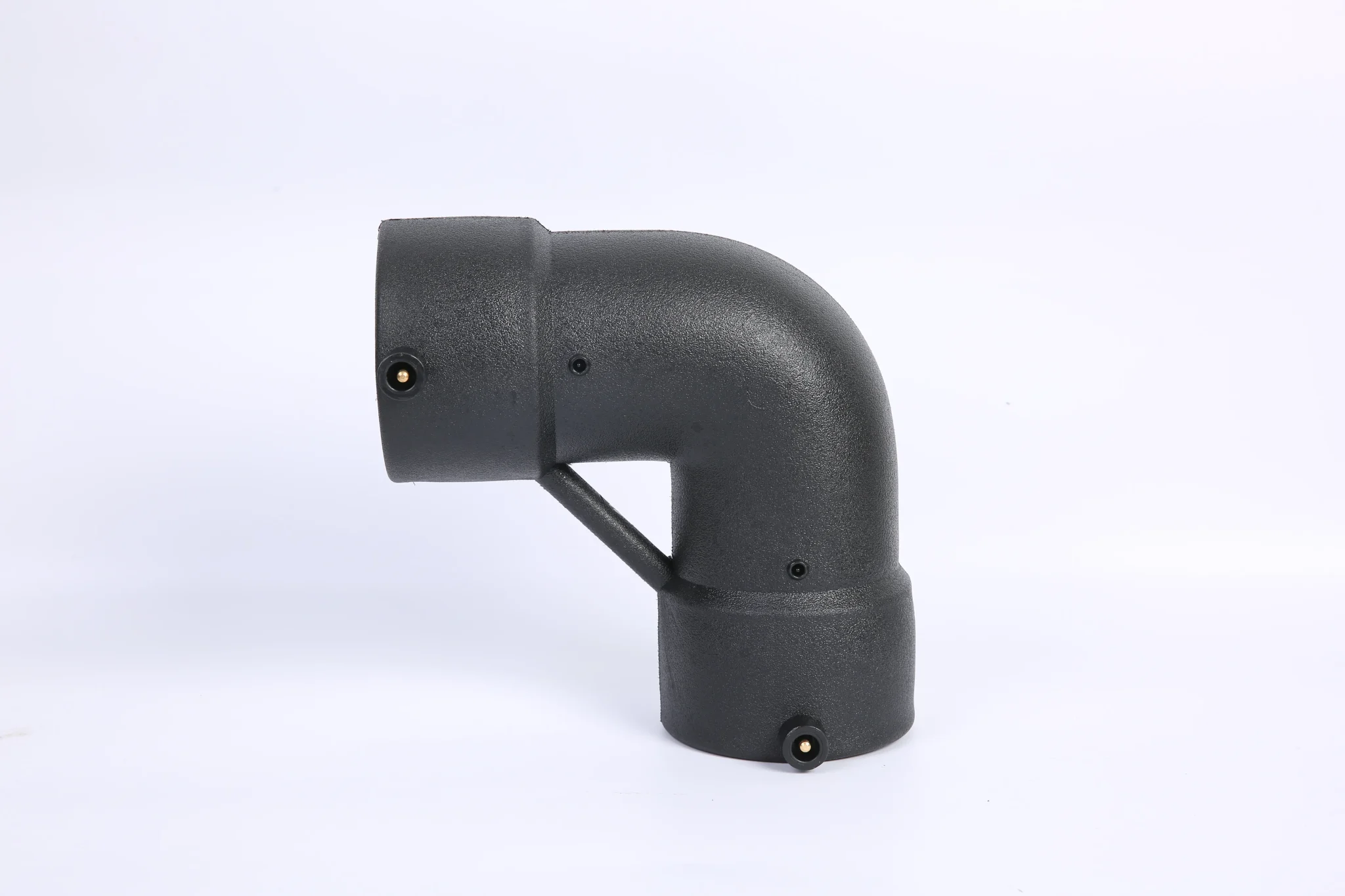

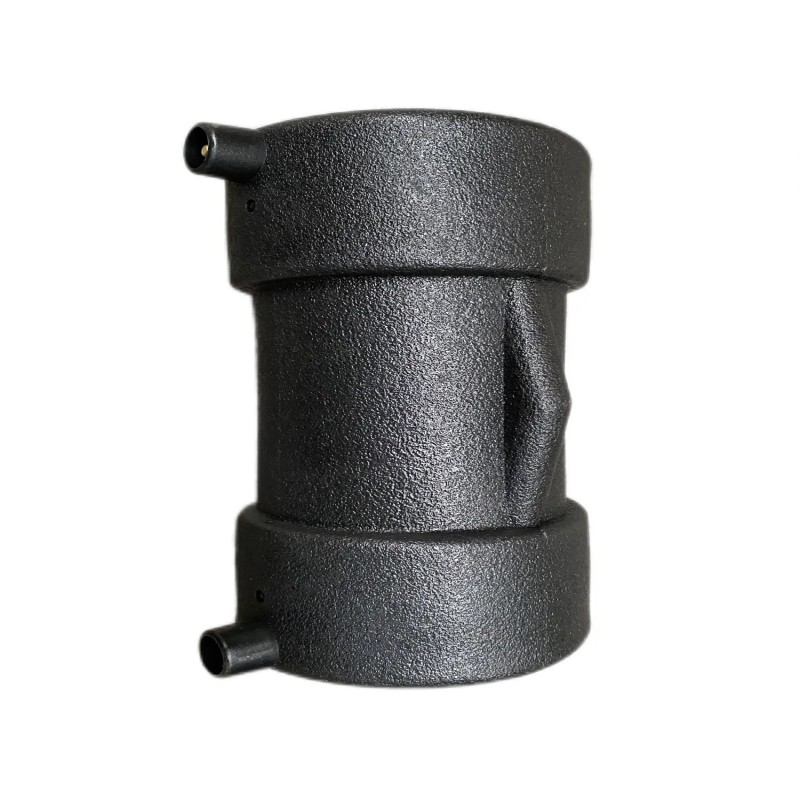

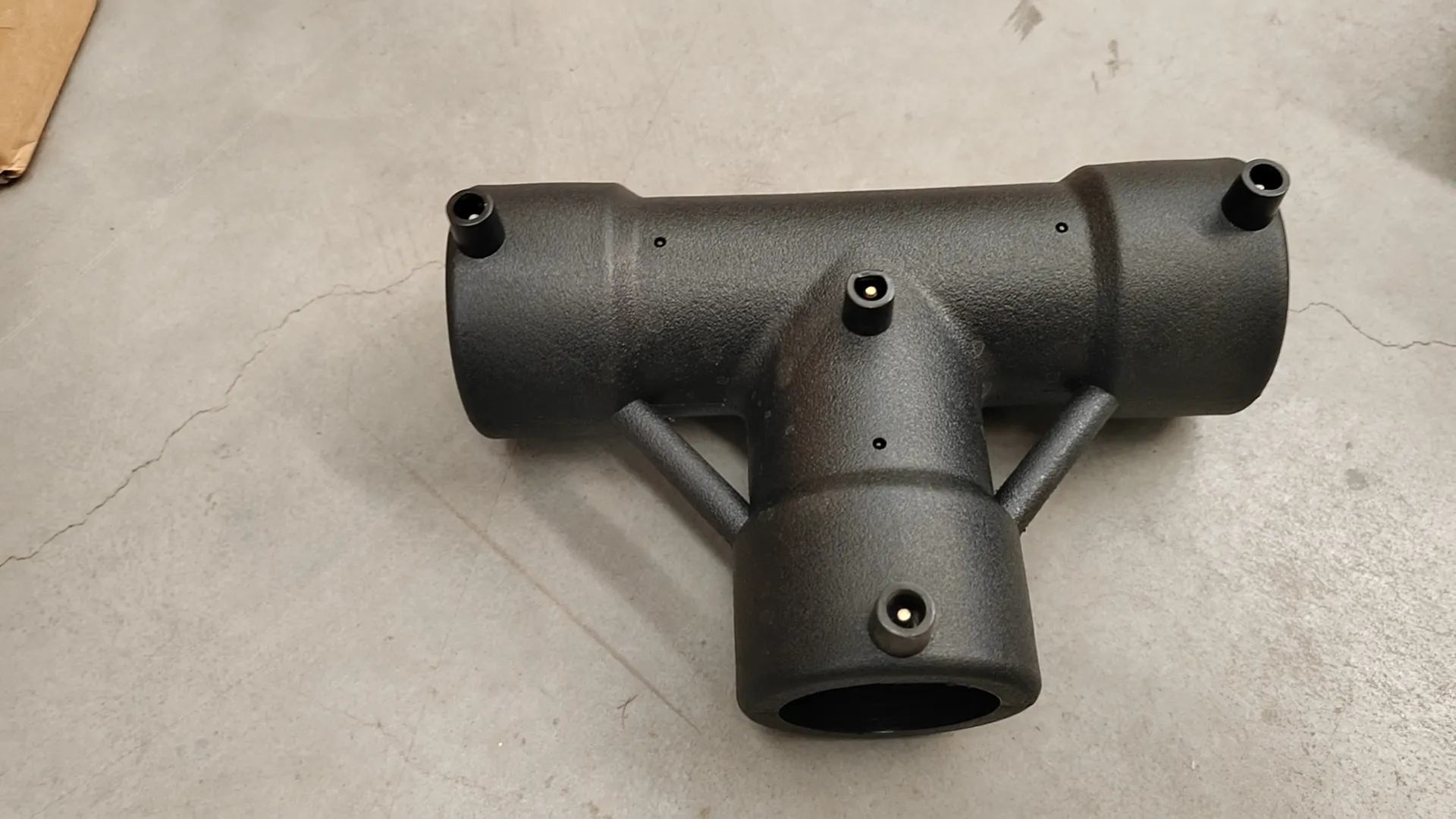

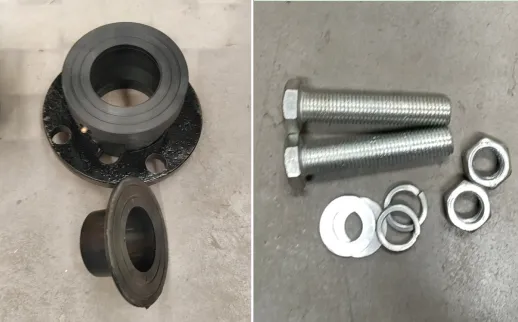

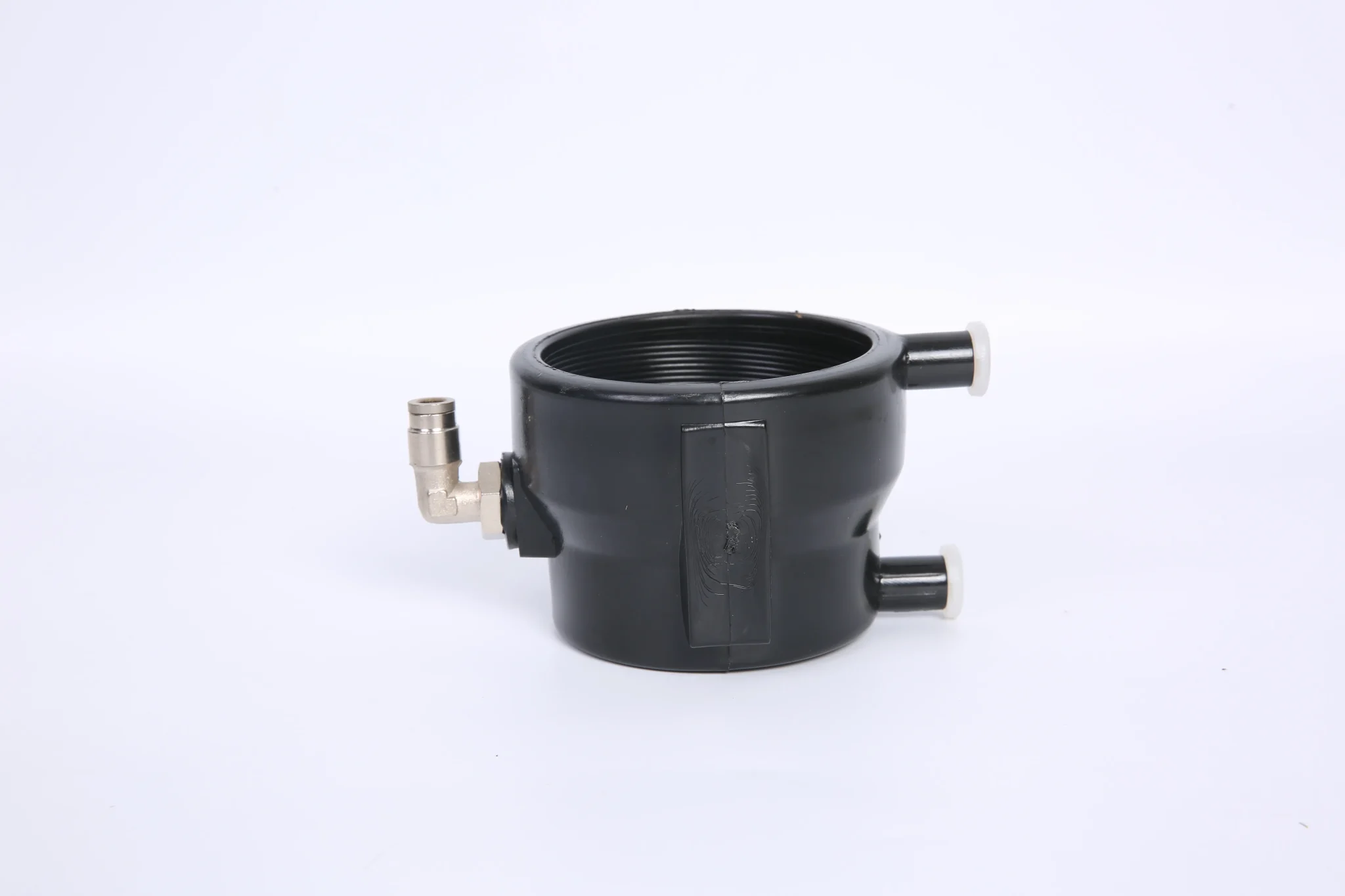

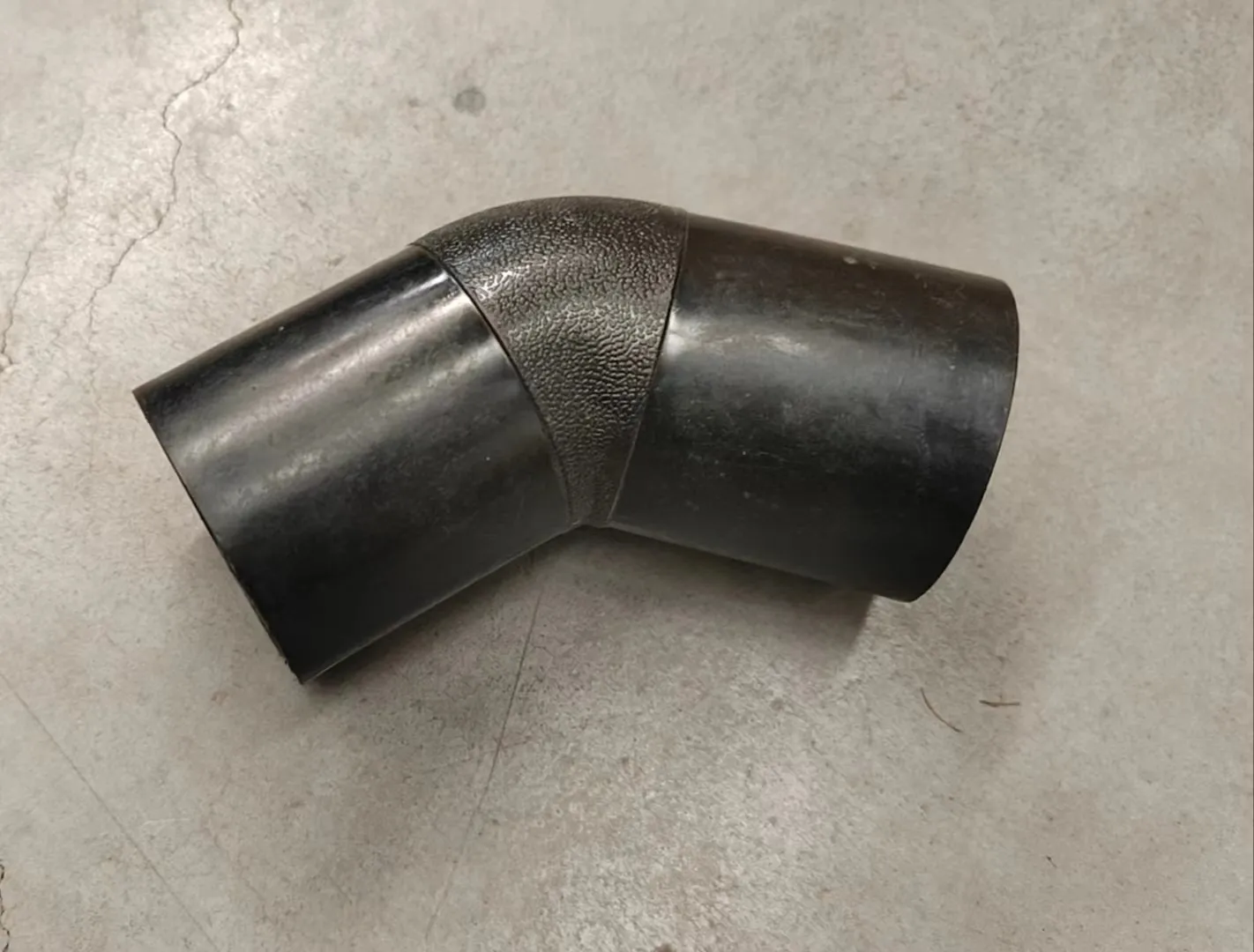

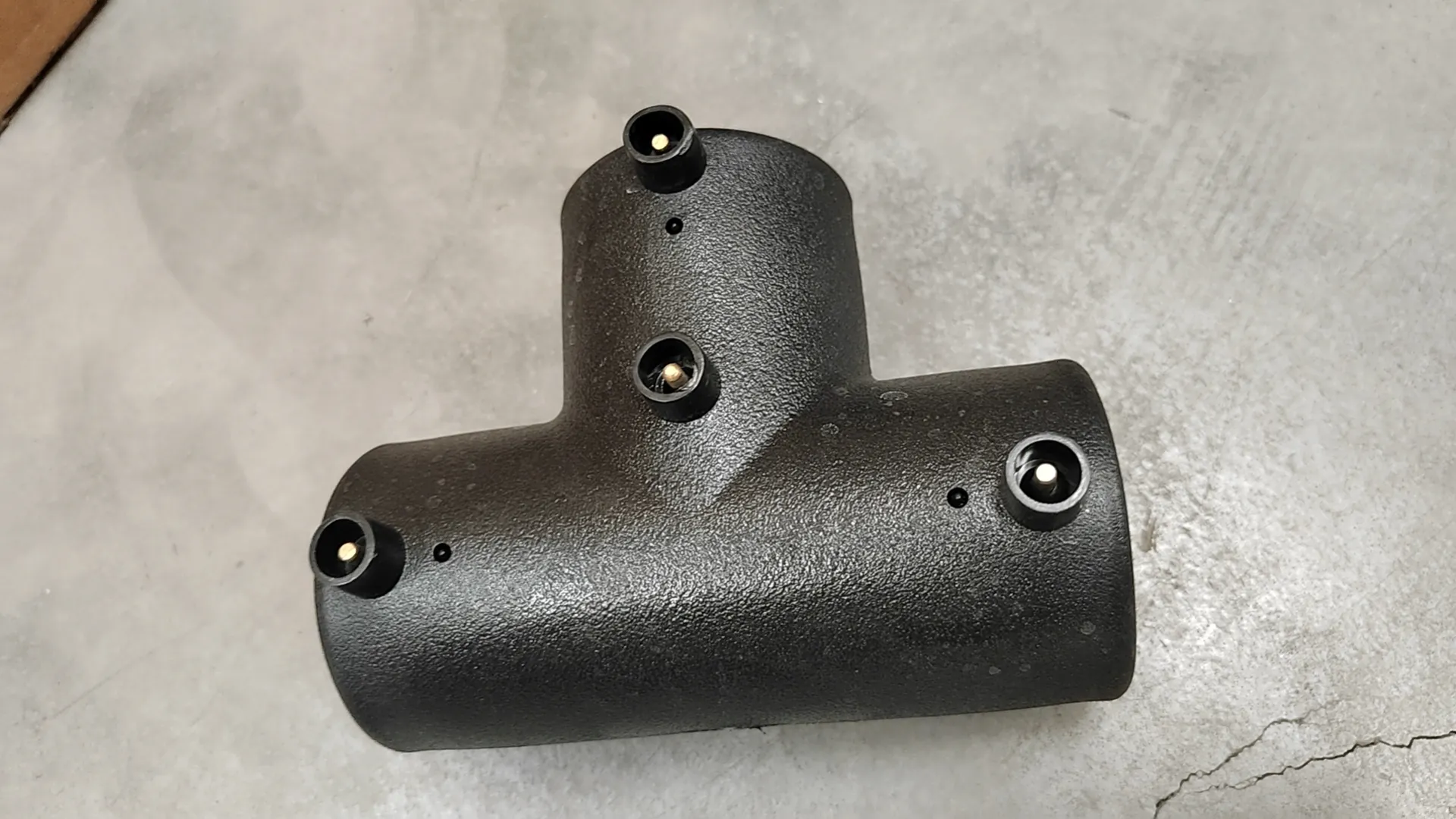

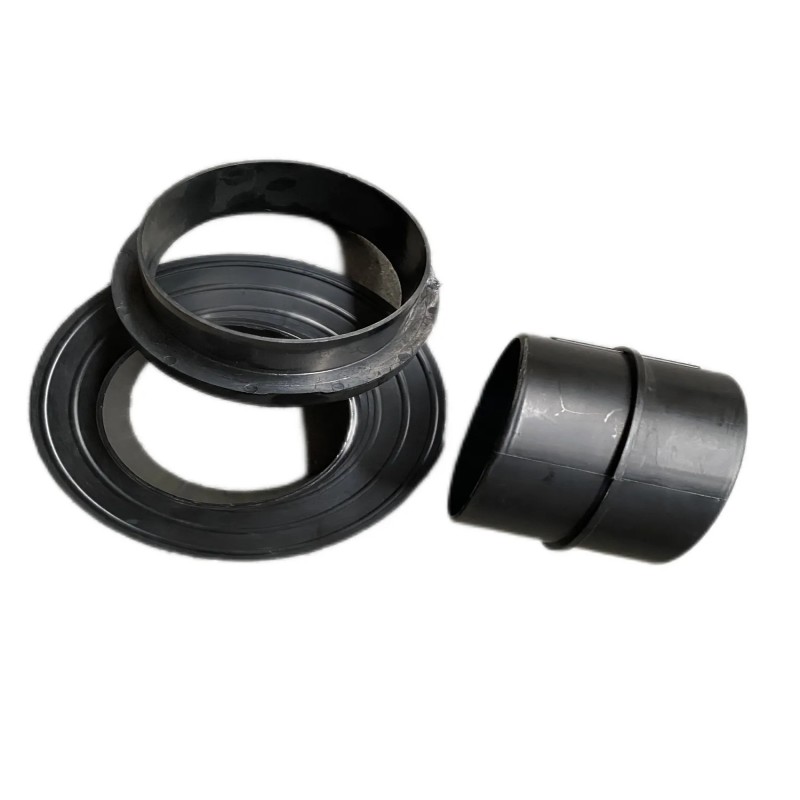

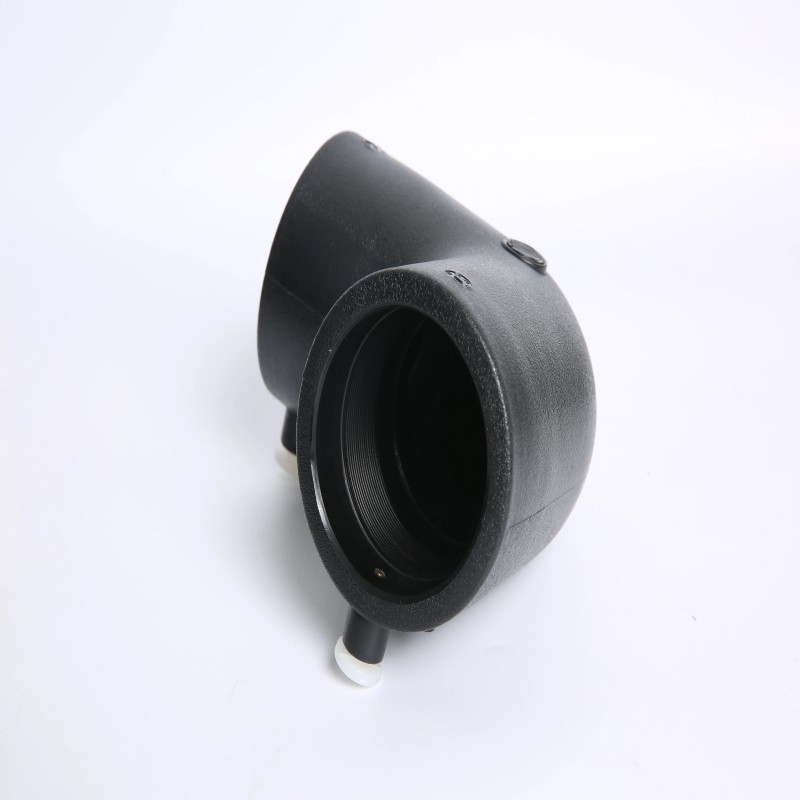

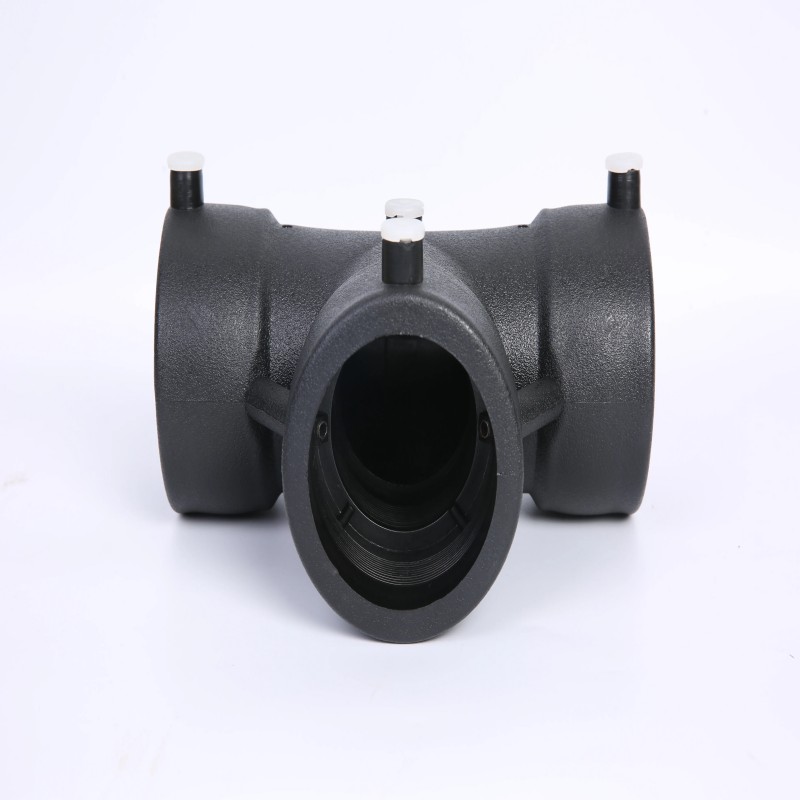

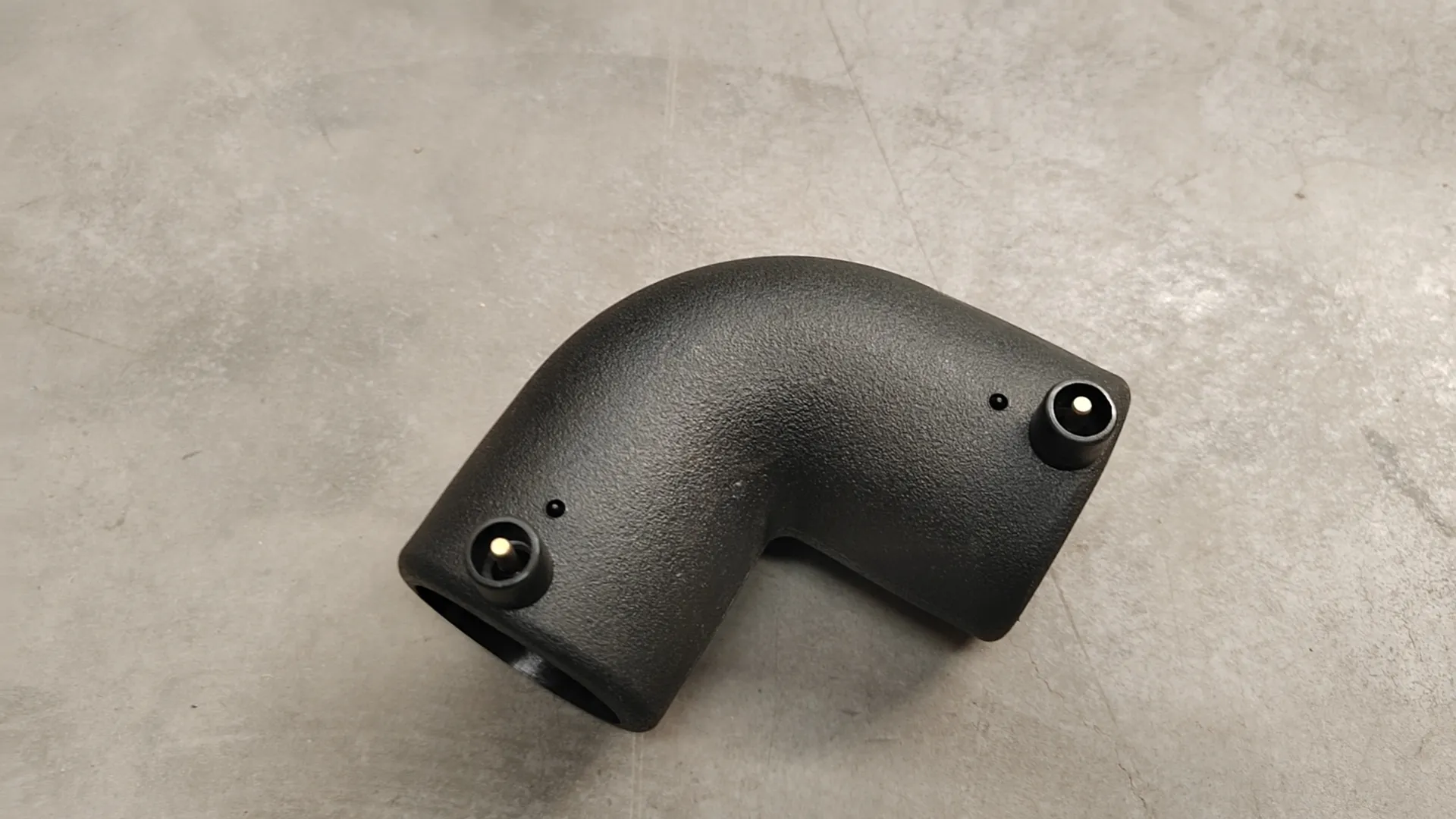

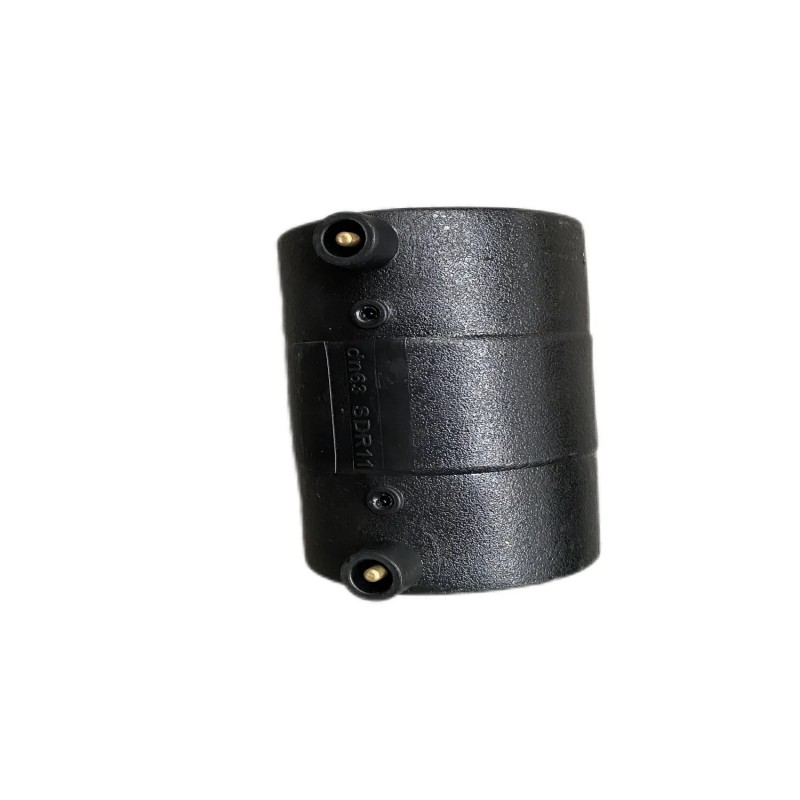

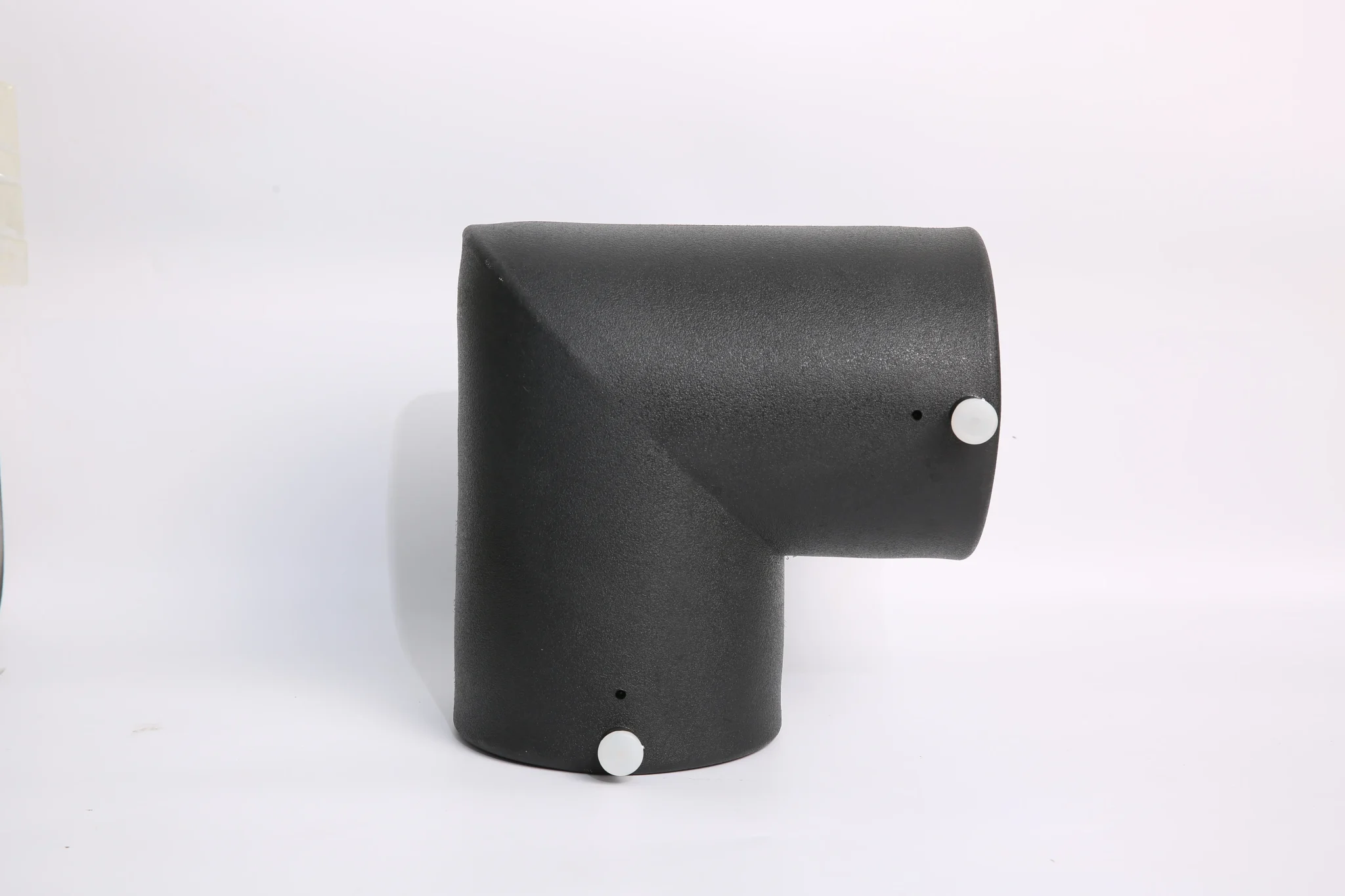

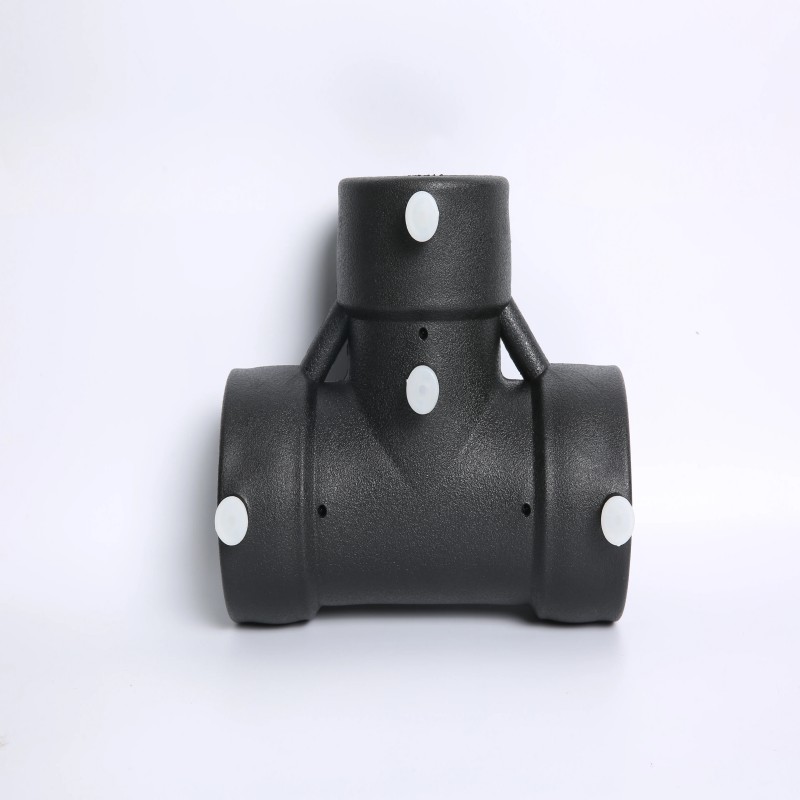

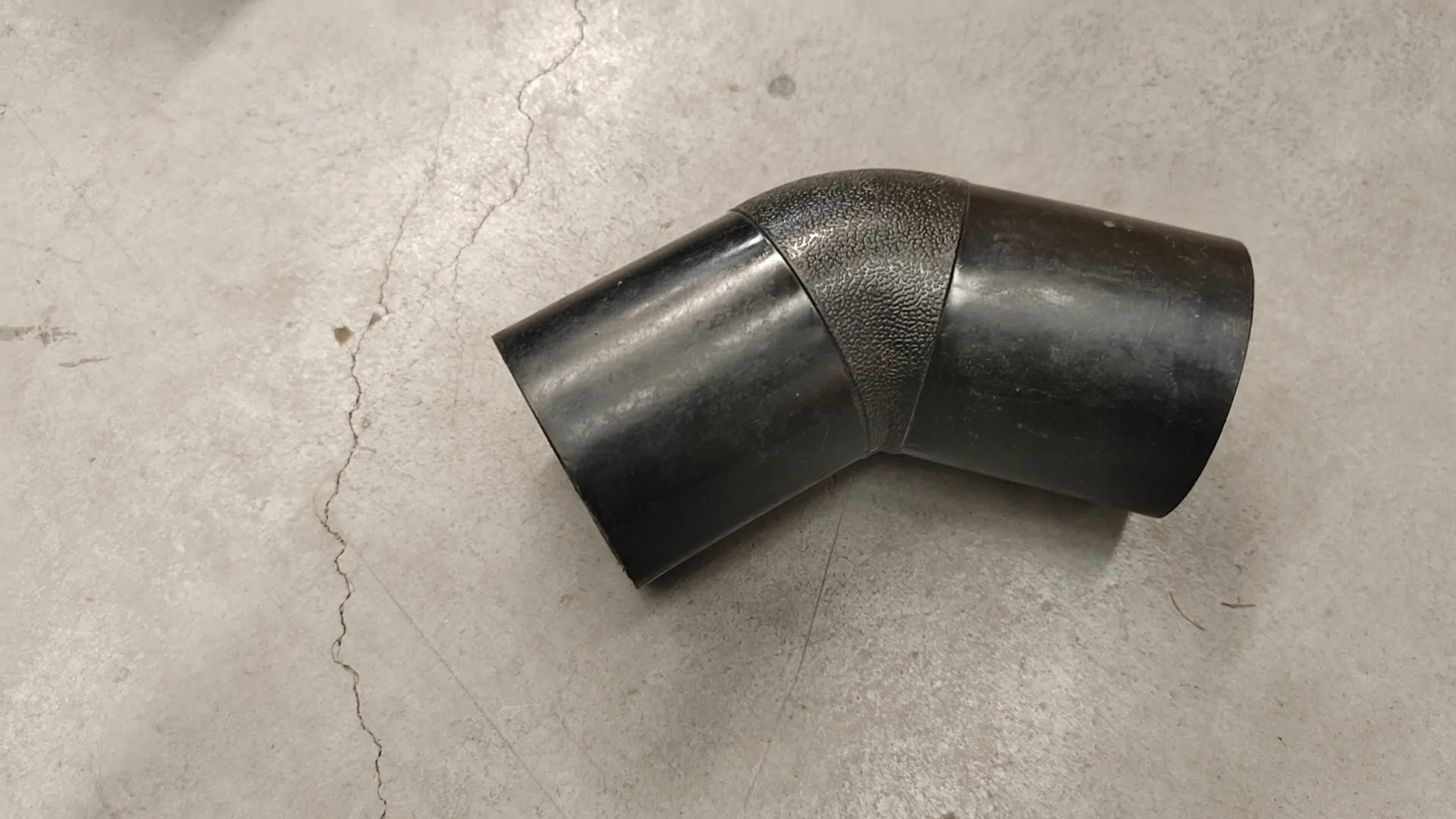

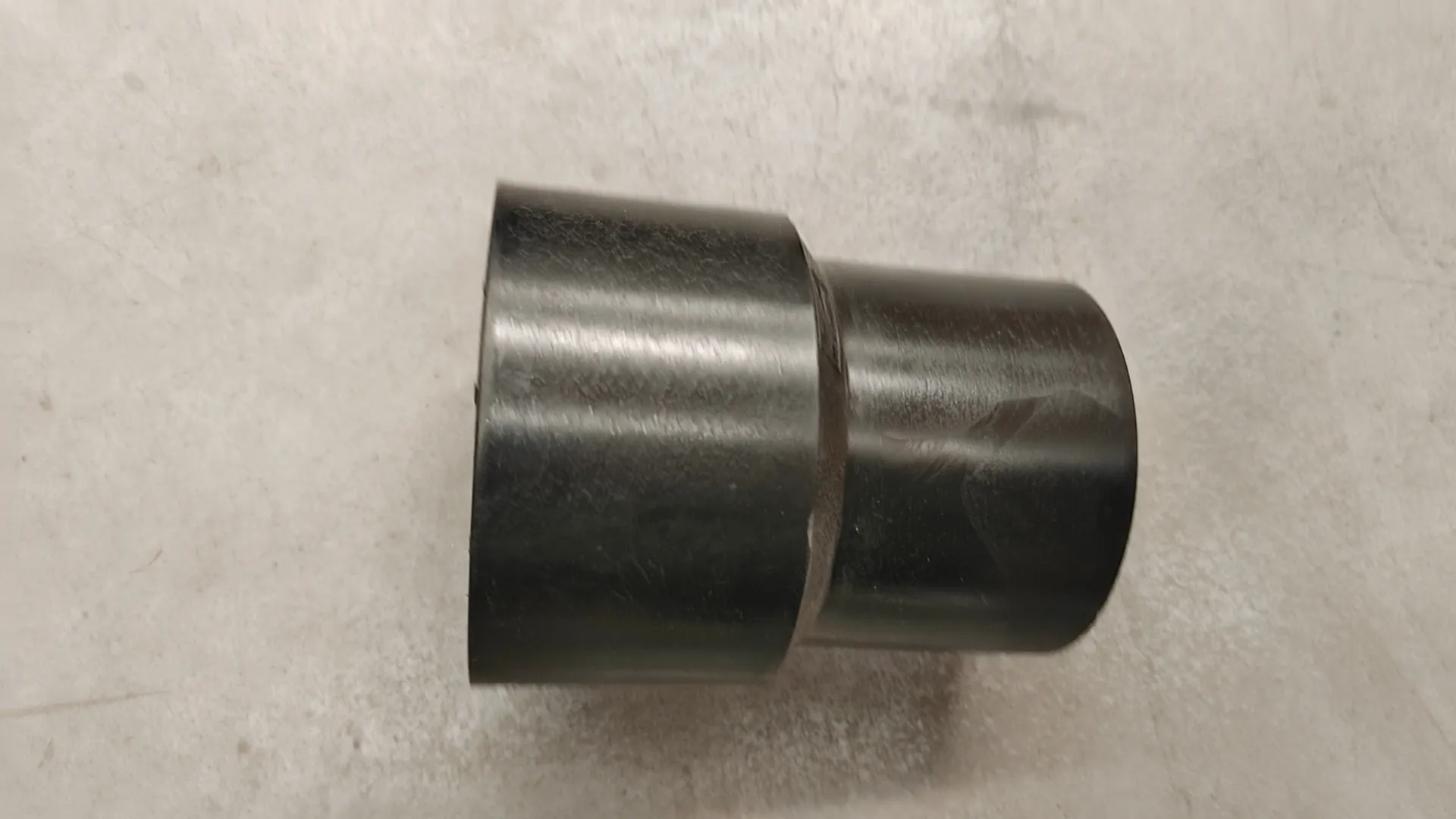

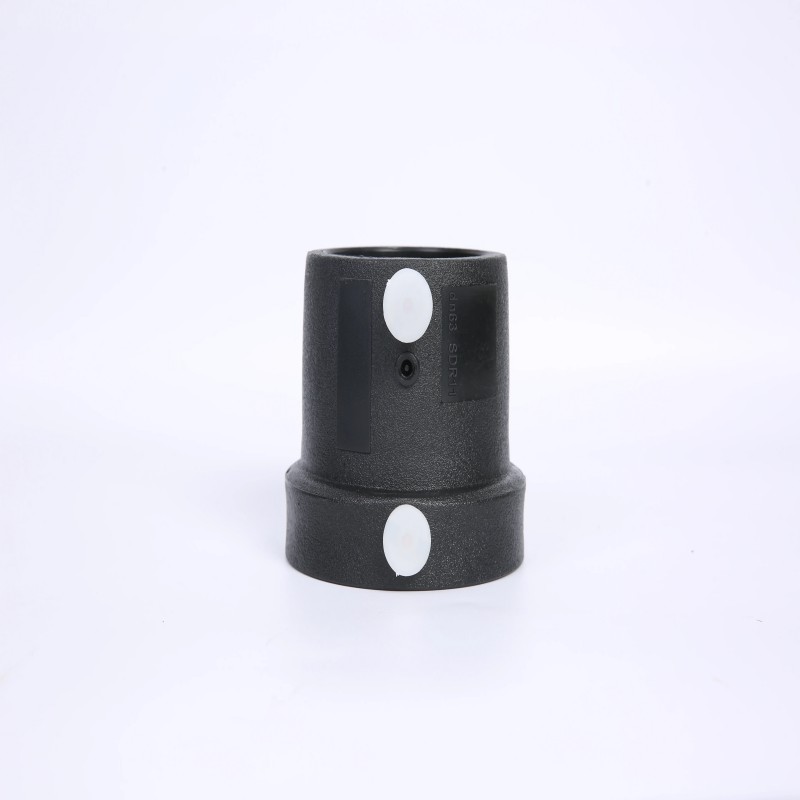

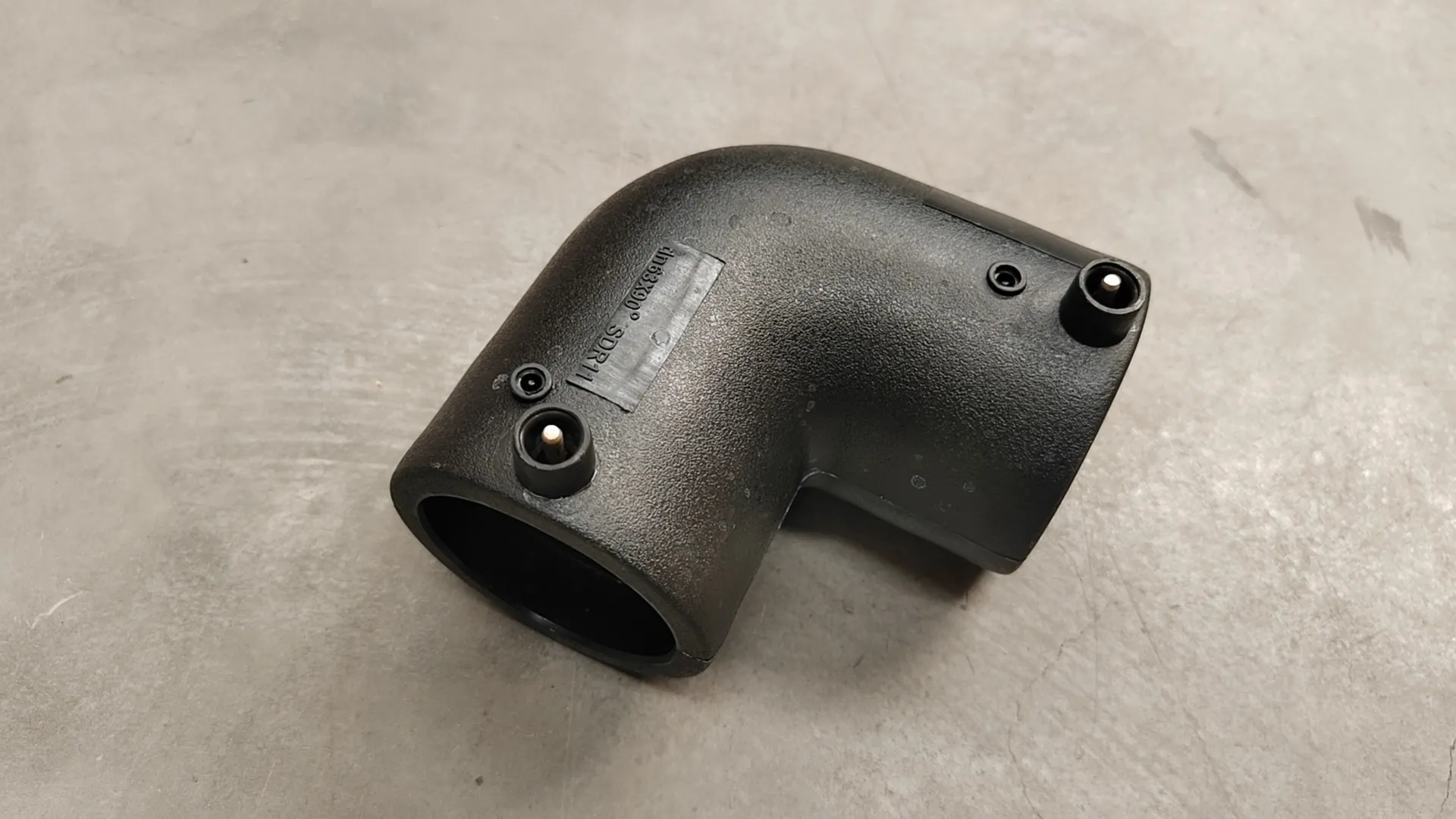

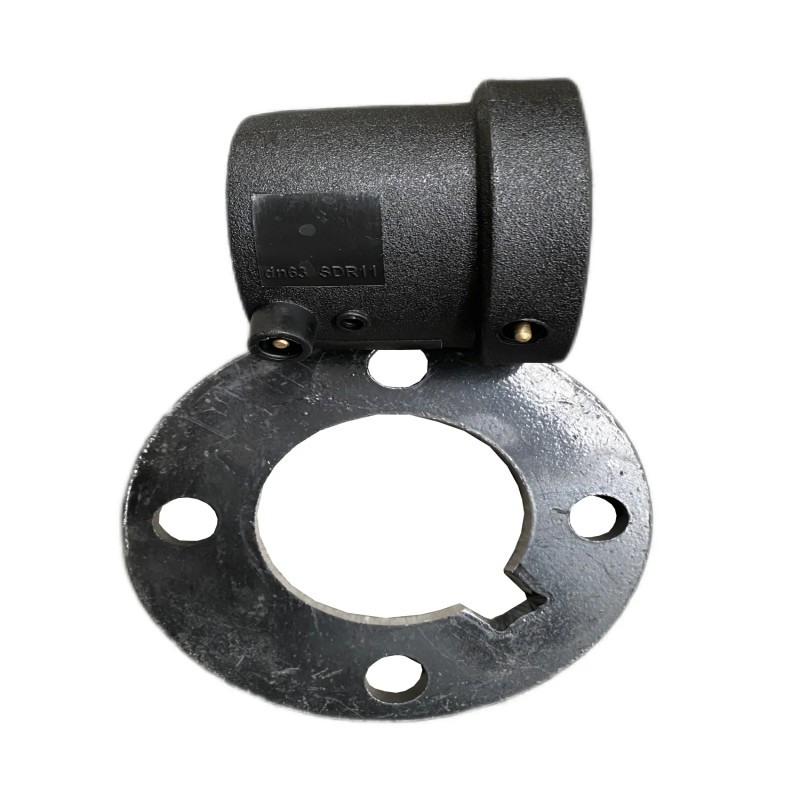

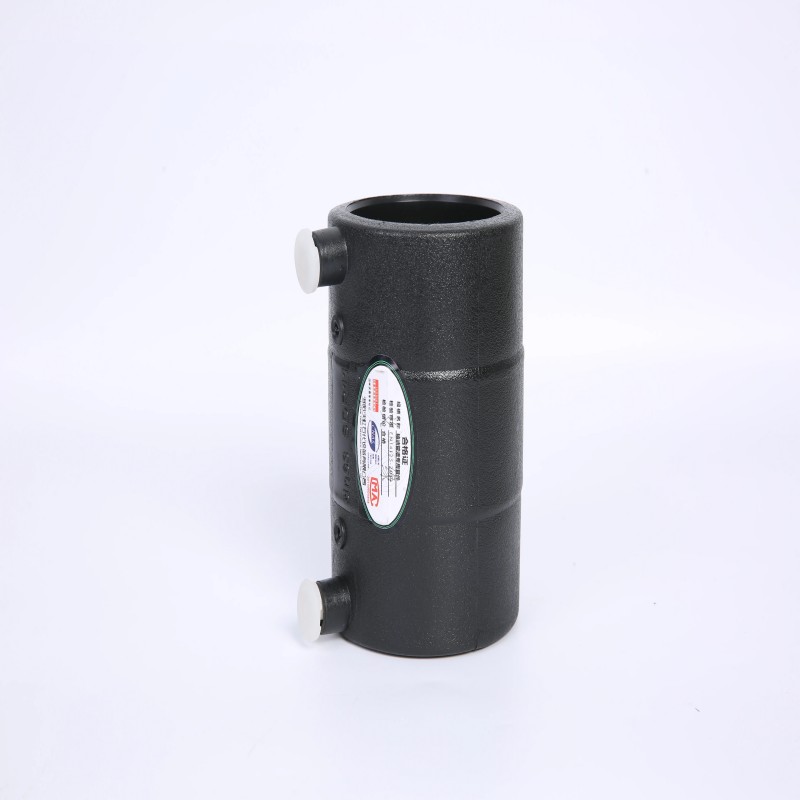

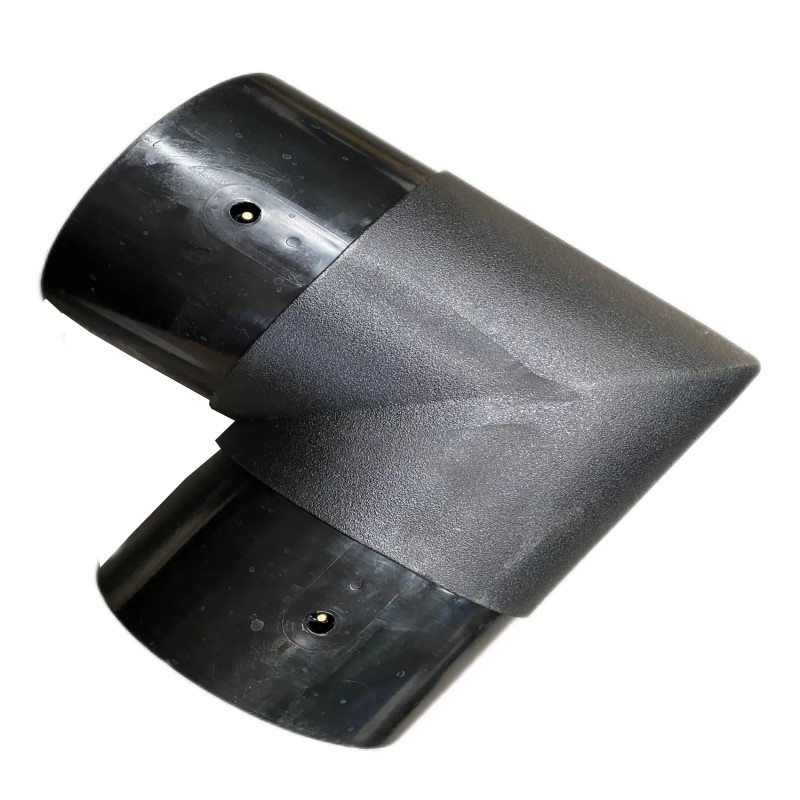

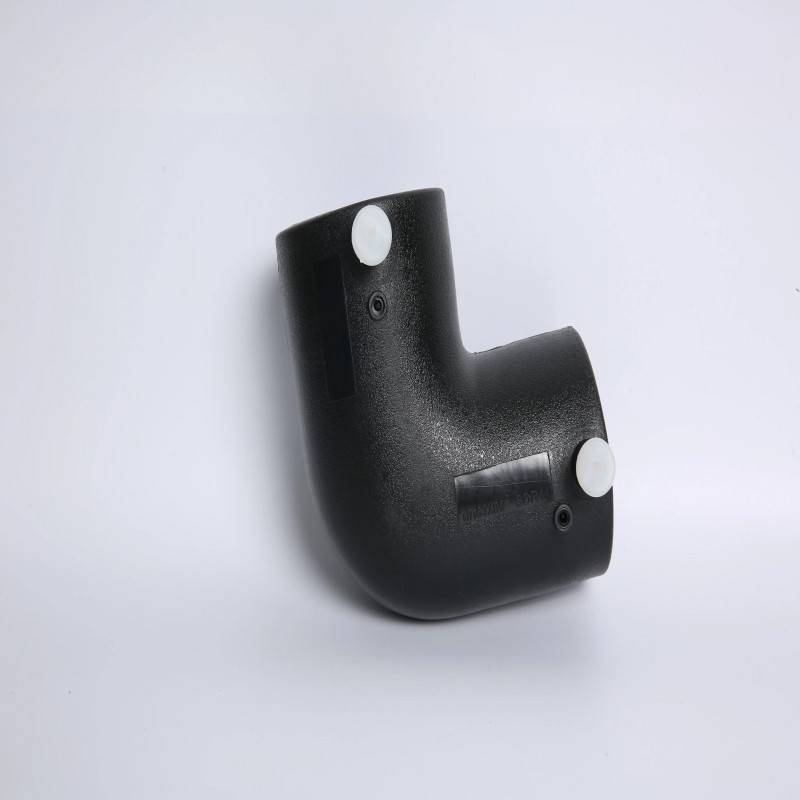

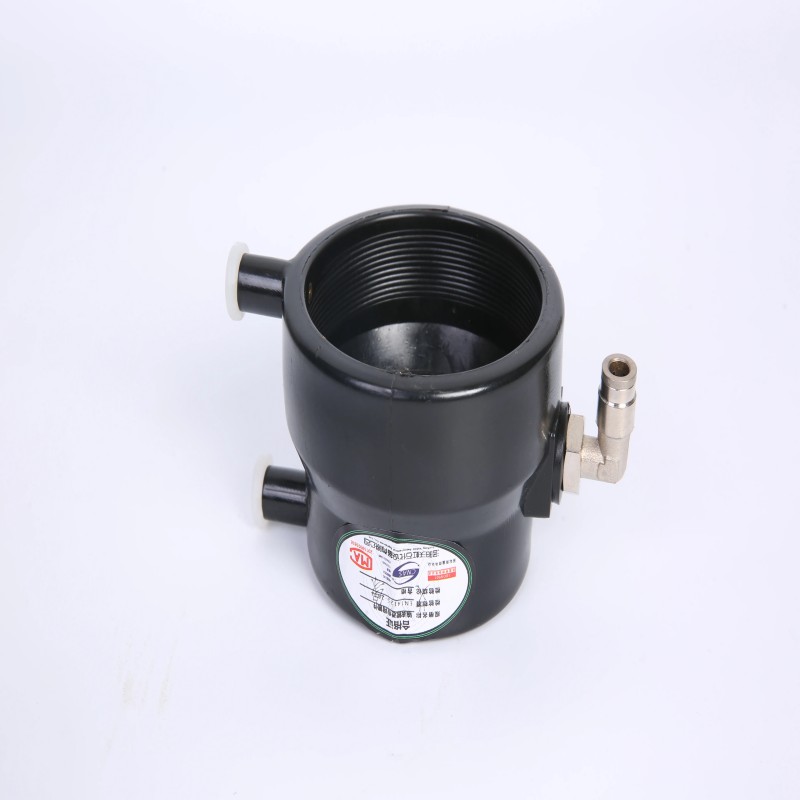

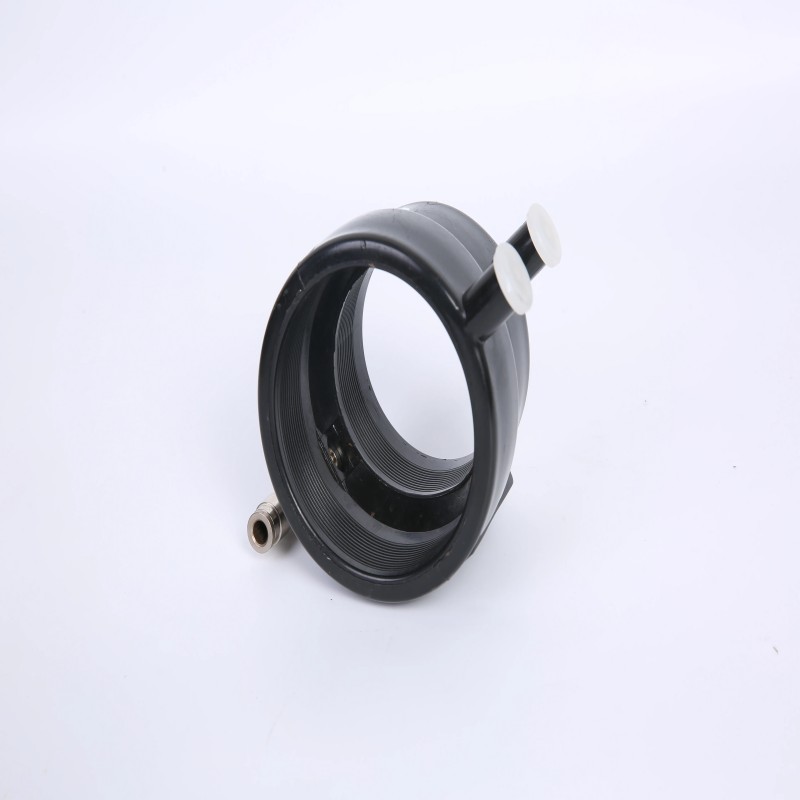

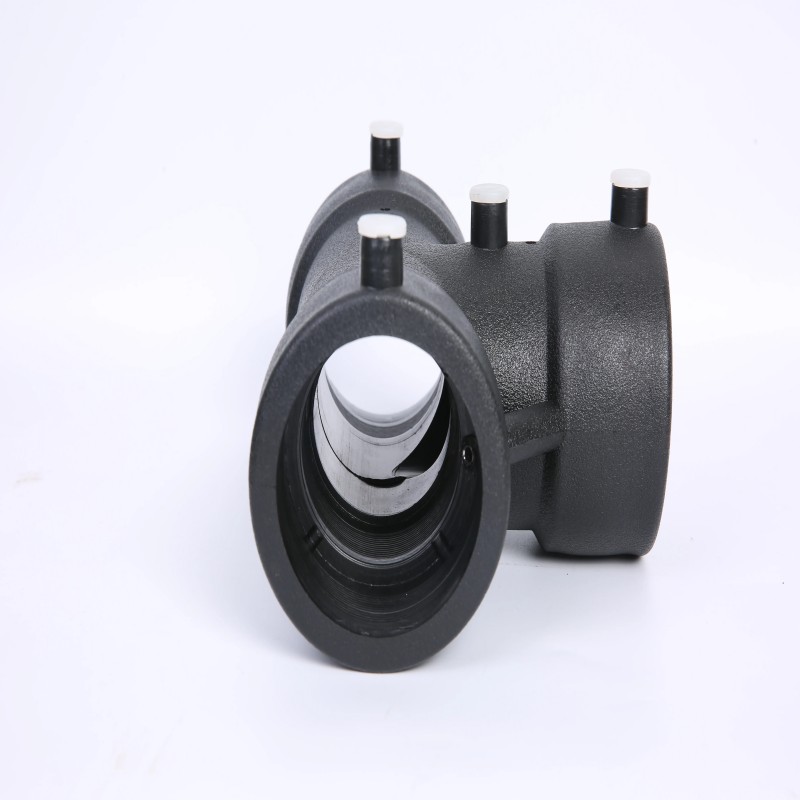

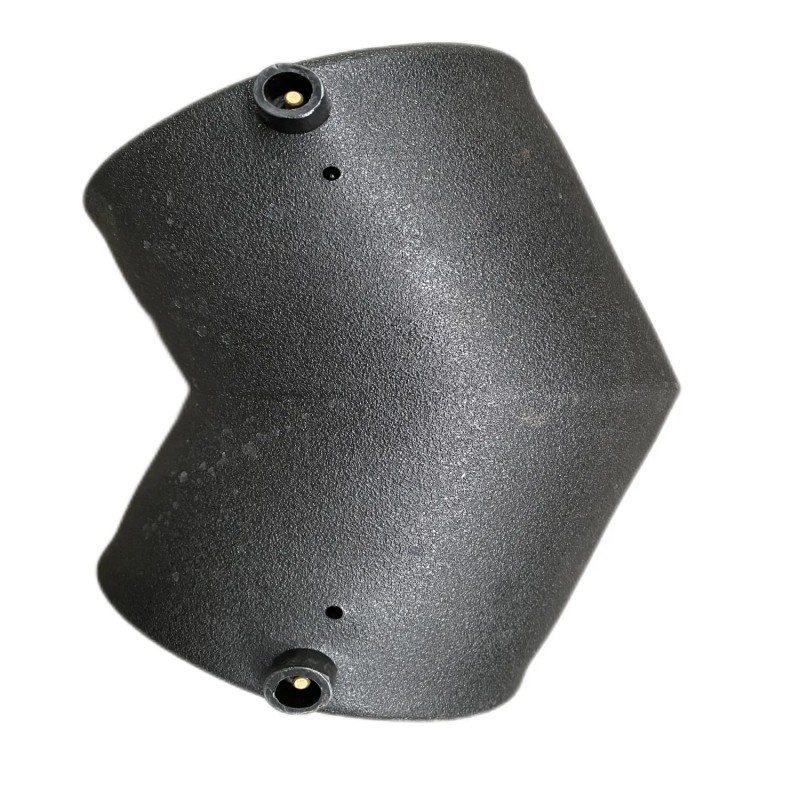

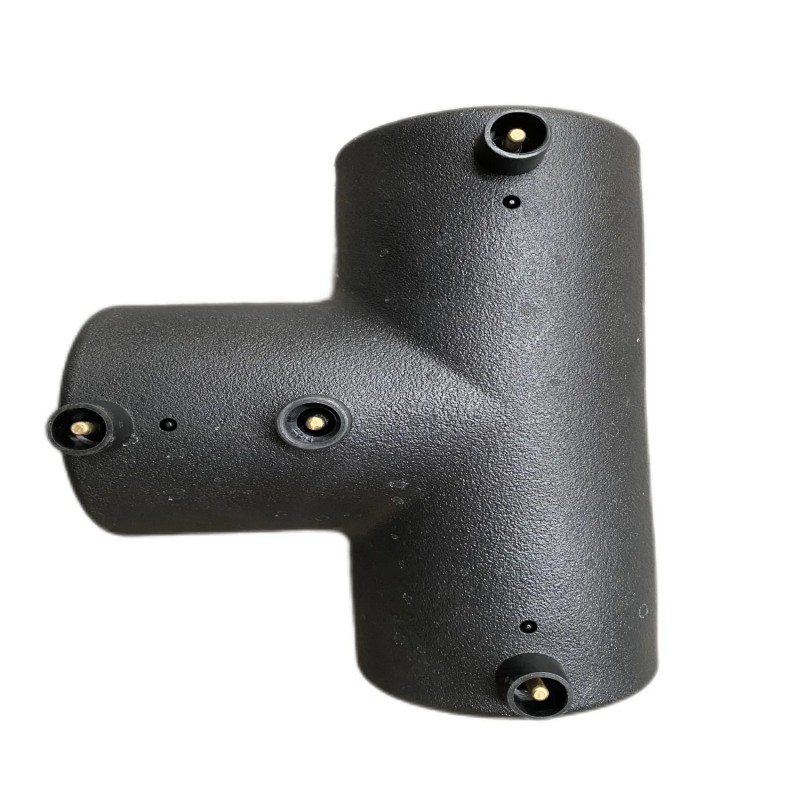

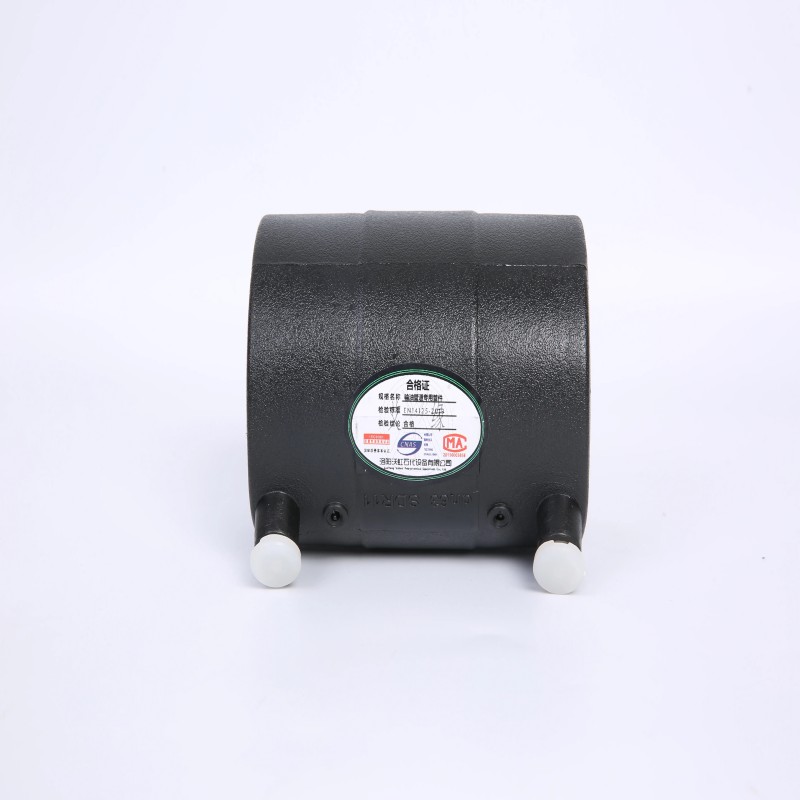

Joined by electrofusion fittings — the fitting’s built-in heating element melts the mating surfaces into one homogenous, leak-tight joint. Our double-wall fittings are designed so no additional diameter-changing components are required. The full range covers couplings, 90°/45° elbows, tees, reducers, flange and threaded terminals, and antistatic plugs.

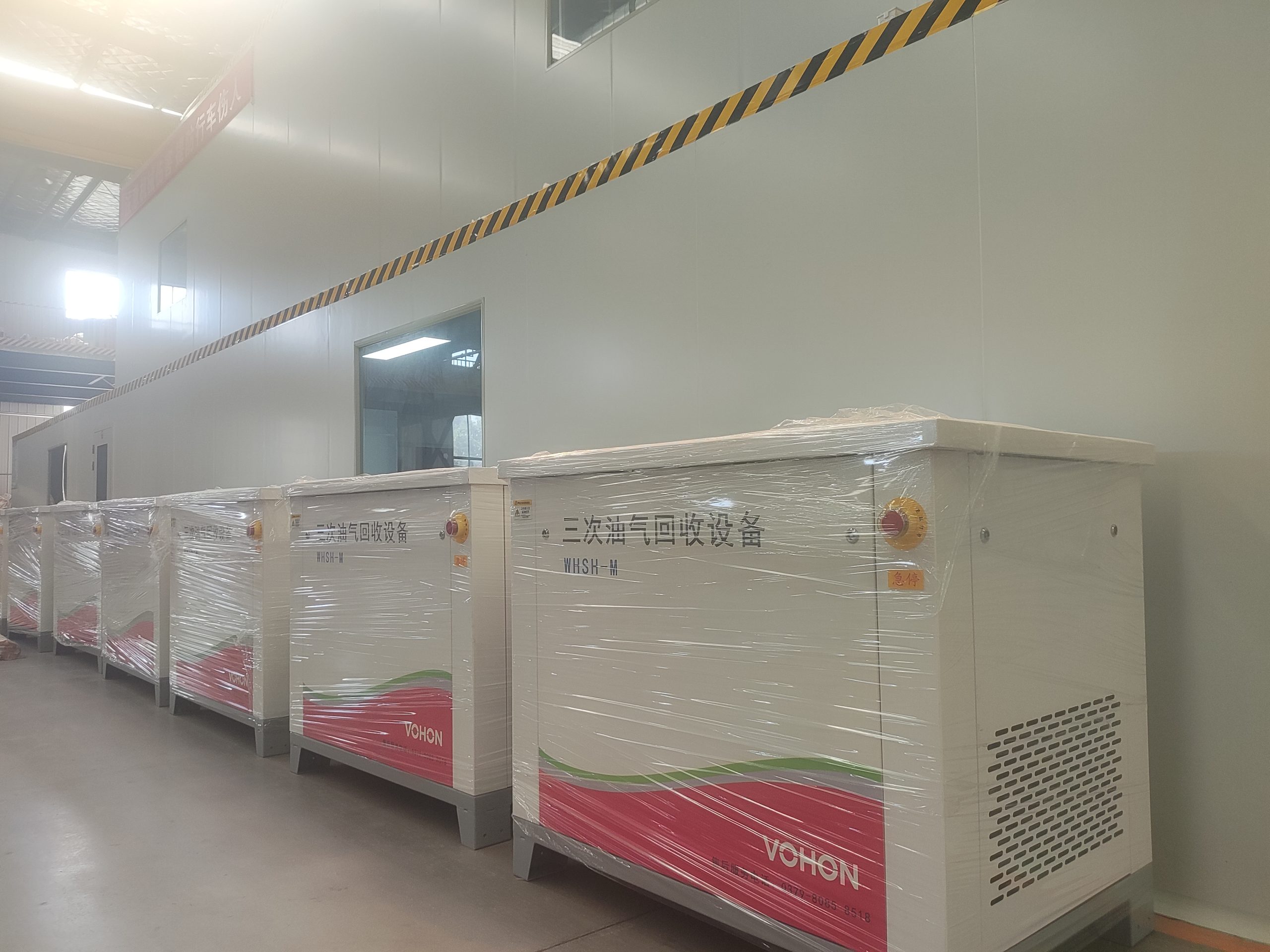

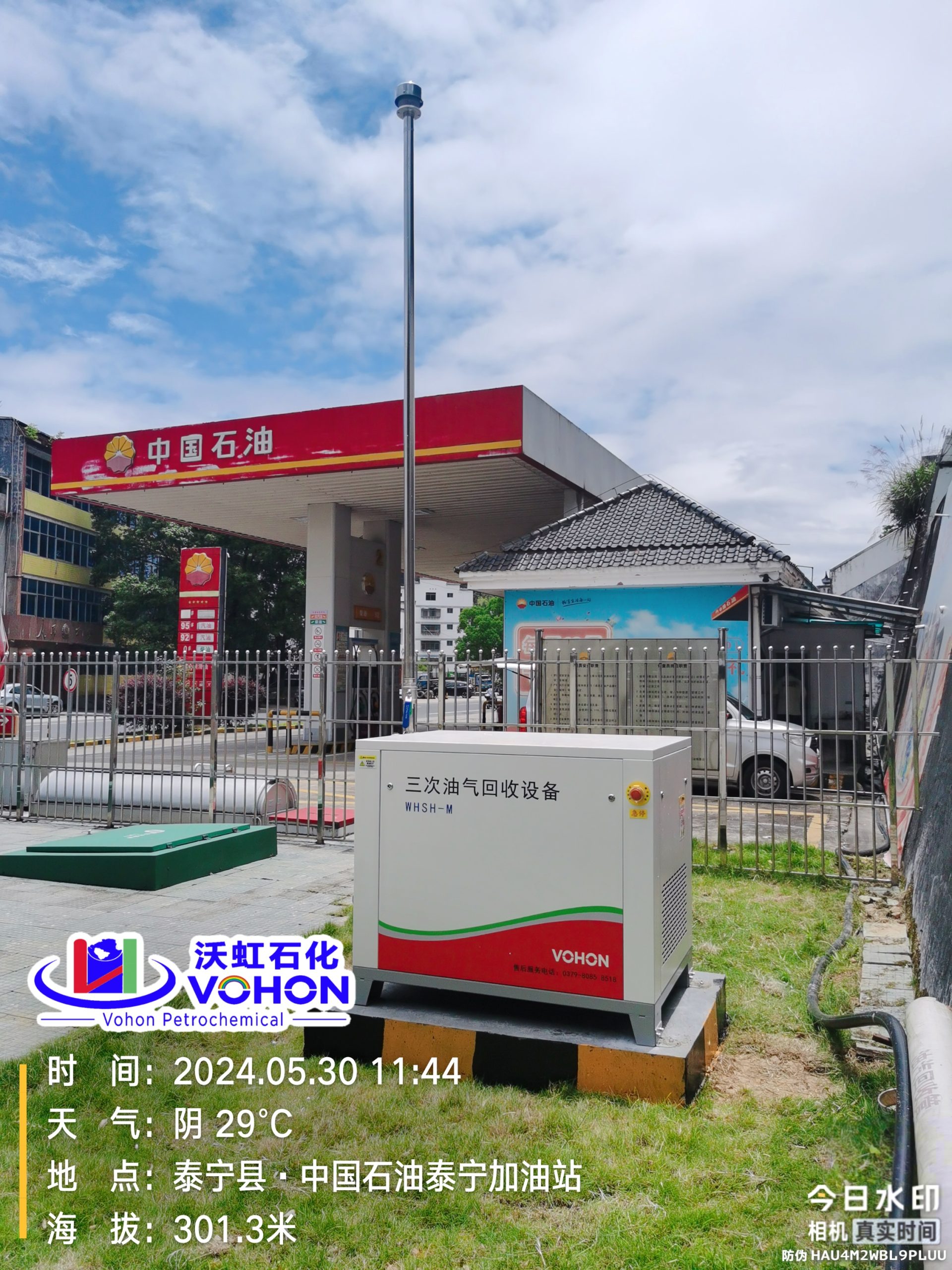

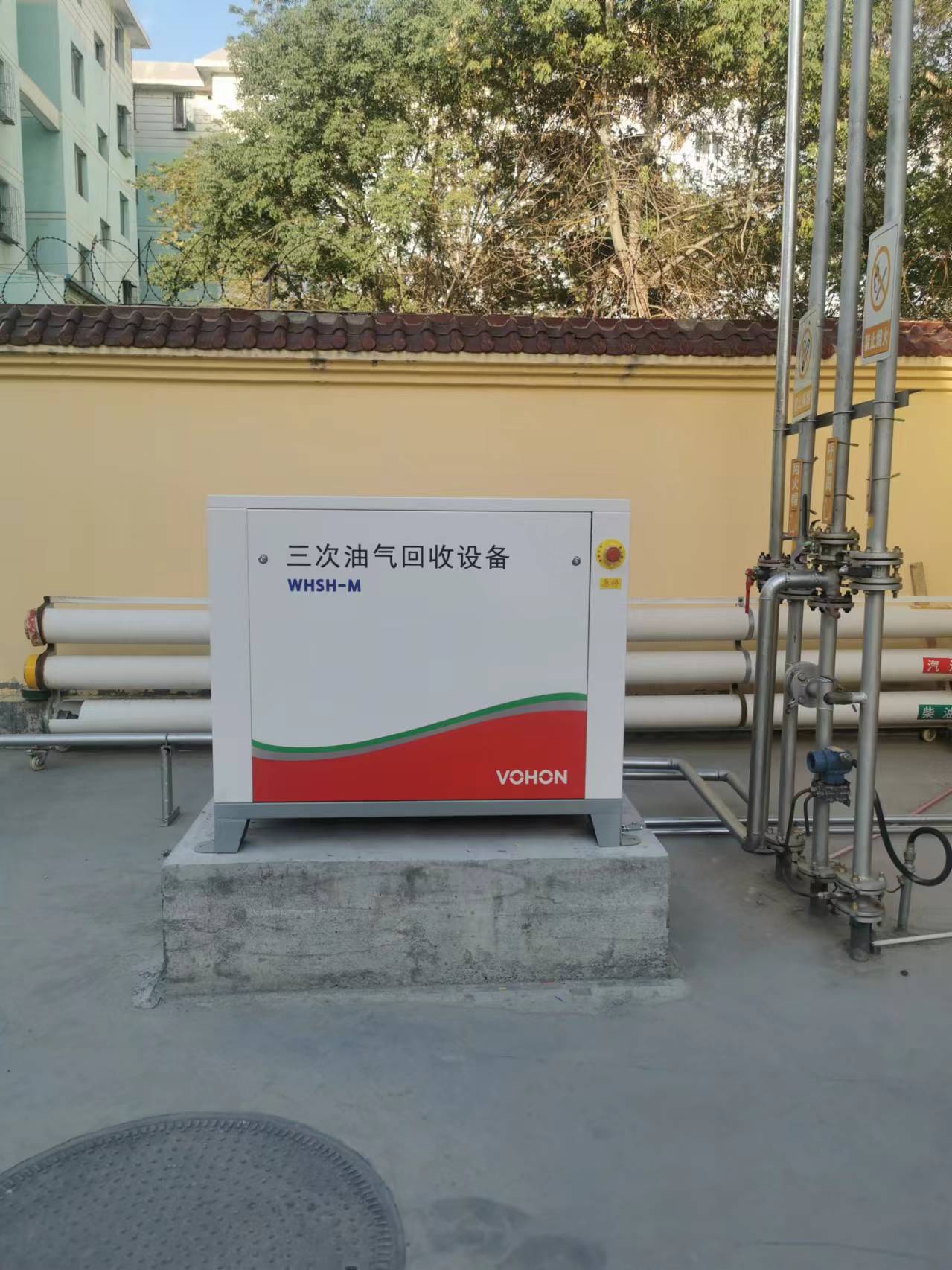

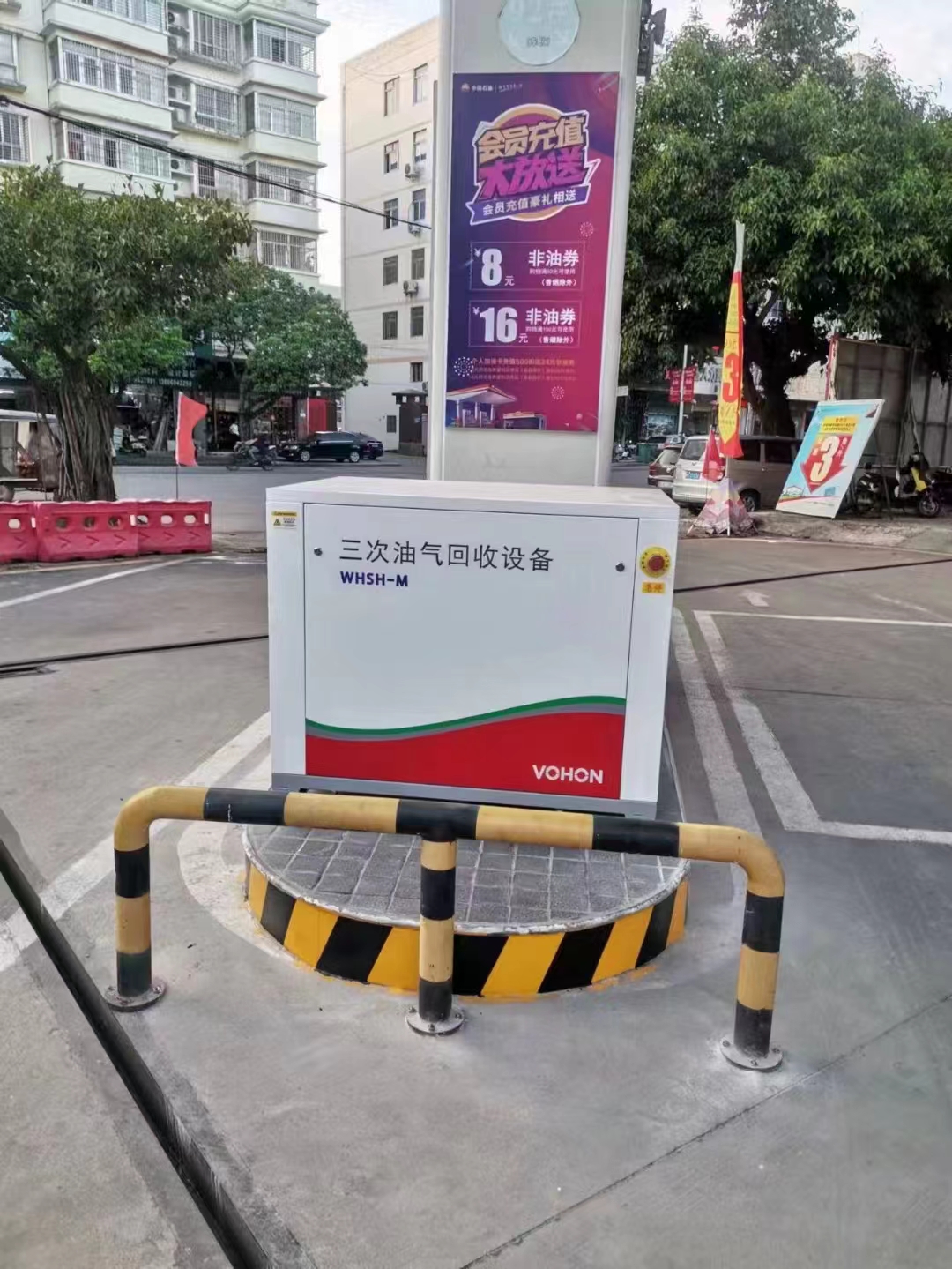

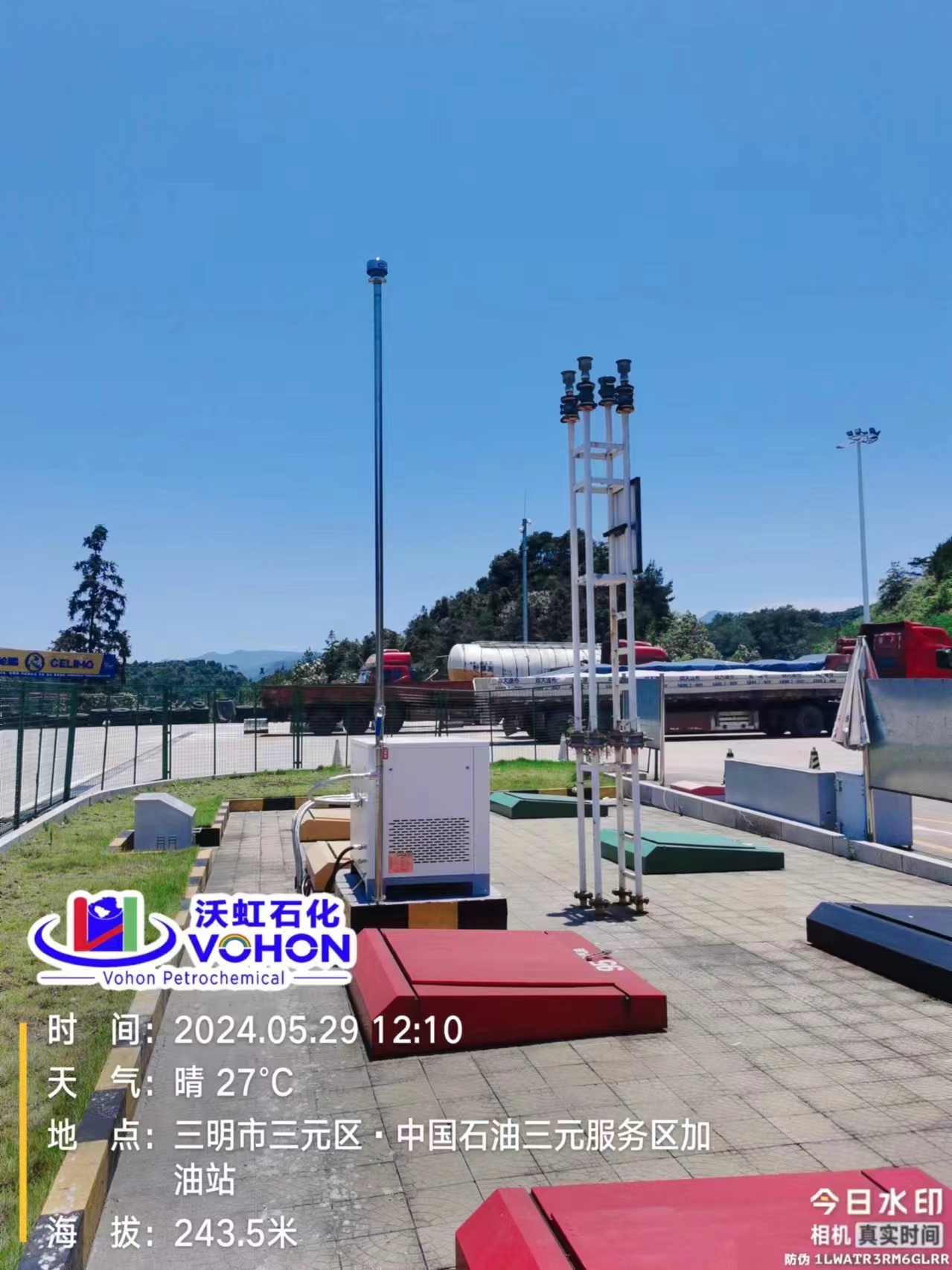

Three-Stage Vapor Recovery Equipment →

Need emission control at your station? Visit Vohon vapor recovery units at vohon.cn
