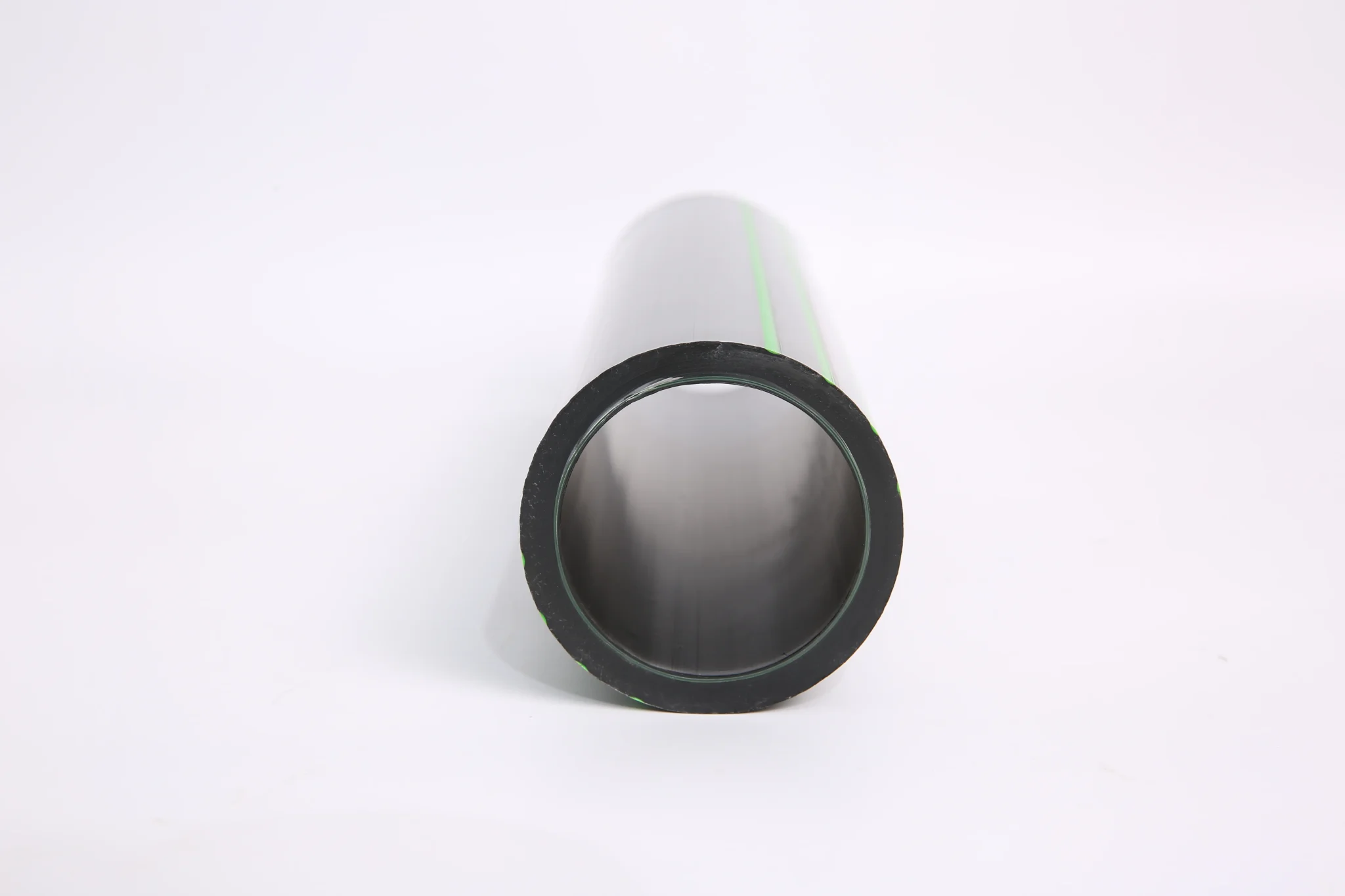

Luoyang VOHON Petrochemical Equipment Co., Ltd. @艾 缘 Single-Layer Composite Pipe
1. Product Features
• The inner pipe is lined with EVOH resin to ensure the pipe’s anti-leakage performance.
• The inner pipe contains an antistatic layer with surface resistance ＜10⁶ Ω for safe operation.
• Rated working pressure of inner pipe: 1 MPa.
• Manufactured with imported HDPE raw materials for reliable quality.
• Test reports issued by National Center for Chemical Building Materials Testing are available to guarantee quality.
• Rated operating temperature: -40℃ ~ 50℃ to meet your application requirements.
• Suitable for both suction-type and pressure-type systems.
• Adopts efficient electrofusion welding system for quick & easy installation, adaptable to various complex working conditions.
@艾 缘 Single-Layer Composite Pipe Model
| Model | Diameter/mm | Length/m |
|---|---|---|
| AY-01-63 | 63 | 50/30/20/6.0 |
| AY-01-90 | 90 | 6.0 |
| AY-01-110 | 110 | 6.0 |
Specifications & Packaging：
DN63 Single-Layer Composite Pipe
Coiled type: Customizable length | Straight type: 6m per piece, 5 pieces per bundleDN90 Single-Layer Composite Pipe
Coiled type: Customizable length | Straight type: 6m per piece, 3 pieces per bundleDN110 Single-Layer Composite Pipe
Coiled type: Customizable length | Straight type: 6m per piece, 2 pieces per bundleCustom specifications & bulk OEM service available.
