Most composite fuel piping systems include at least two transitions to a different material, usually at the tank top and at the dispenser or pump set. These points deserve attention out of proportion to their size, because they concentrate several functions in a short length: a change of material, a change of connection method, and often a change of support condition. Deciding the transition detail before the pipe is ordered avoids the common situation where the last metre of a run has to be improvised on site.
Where transitions actually occur

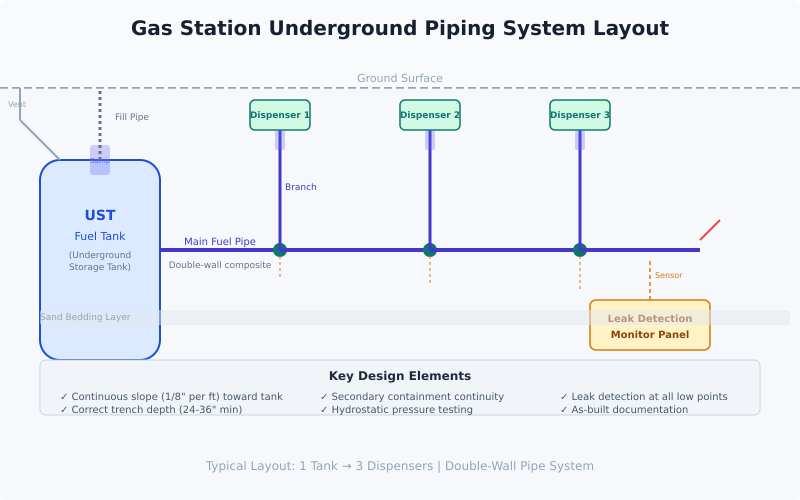

Typical locations are the tank sump or tank top, the dispenser island, a pump set or skid, and any point where the line passes from buried to above-ground. Each has its own constraint. Sump transitions have limited working room. Dispenser transitions must line up with fixed equipment positions that cannot be adjusted. Above-ground transitions have to deal with movement and support.
What the transition has to do
A transition detail has to carry the line’s mechanical loads, keep the joint accessible for inspection, and provide a reliable seal across two different materials. It is also the point where electrical continuity is usually established, which means the detail has to be designed for it rather than treated as an afterthought.
https://www.vohonoilpipe.com/wp-content/uploads/2026/06/piping-system-layout.png
Because these requirements interact, a transition is best decided as a single assembly rather than as separate pipe and fitting choices. Looking at it that way makes it obvious when a proposed detail leaves no room for the connection to be made properly.
Points to confirm before ordering
| Item | Why it matters | What to confirm |
|---|---|---|
| Material interface | Two materials behave differently under load and temperature | Interface design suits both |
| Connection method | Decides tooling and skill needed on site | Method is available to the crew |
| Alignment tolerance | Fixed equipment cannot move to suit the pipe | Pipe can reach the equipment position |
| Support and restraint | Above-ground transitions carry movement | Support prevents strain at the joint |
| Access for inspection | The joint has to be verifiable later | Detail stays inspectable in service |
| Continuity arrangement | Needed for the system as a whole | Provision is designed in, not added |
Installation sequence at a transition
- Set out the fixed end first, using the equipment position as the datum;
- Confirm the pipe run can reach that point without forcing or springing;
- Prepare and inspect the composite side of the connection to the written requirement;
- Make the transition joint, then check alignment before the line is restrained;
- Install and confirm support and restraint so the joint is not load bearing;
- Record the joint as part of the standard installation records for the pipeline.
Frequently asked questions
Can the transition be made above ground?
It can, and it often is, but above-ground details have to handle movement and support differently from buried ones. The decision should follow from the route and the equipment positions rather than from convenience.
Does the transition change the inspection routine?
It adds one point to check. Transitions are worth including in periodic condition review because they combine materials and connection methods, and they are often the place where small movement first becomes visible.
What is the most common problem at transitions?
Alignment. A pipe that cannot reach the fixed equipment position without being forced into place puts permanent strain into the joint, so alignment is worth confirming before the connection is made.
